Model – SX4257NT324K1
Type of vehicle – Tractor Truck
Series – F3000
Power – 375hp
Engine – Weichai WP12.375N
Maximum Speed(km/h) – 98
Overall dimension (mm) – 6825X2490X4000
Model – SX4257NT324K1
Type of vehicle – Tractor Truck
Series – F3000
Power – 375hp
Engine – Weichai WP12.375N
Maximum Speed(km/h) – 98
Overall dimension (mm) – 6825X2490X4000

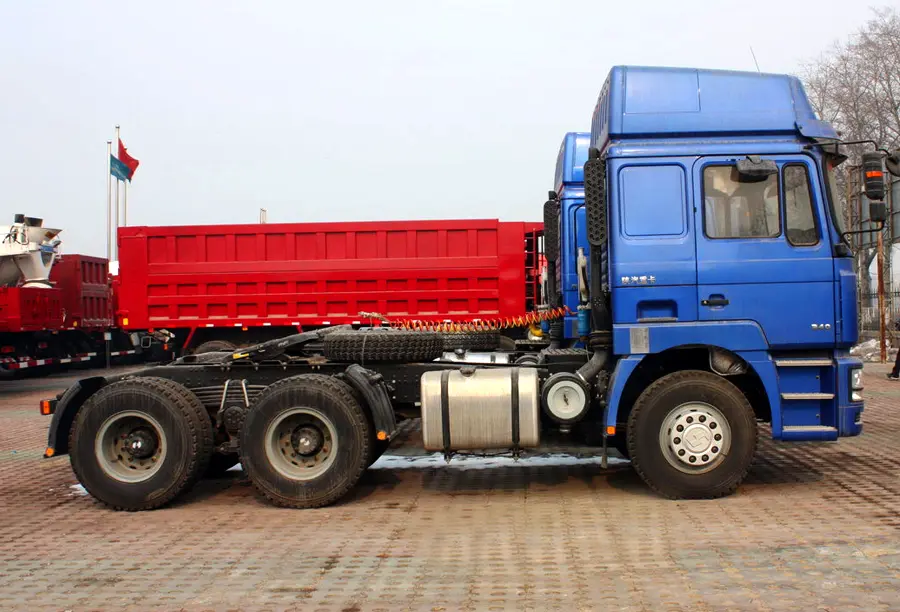

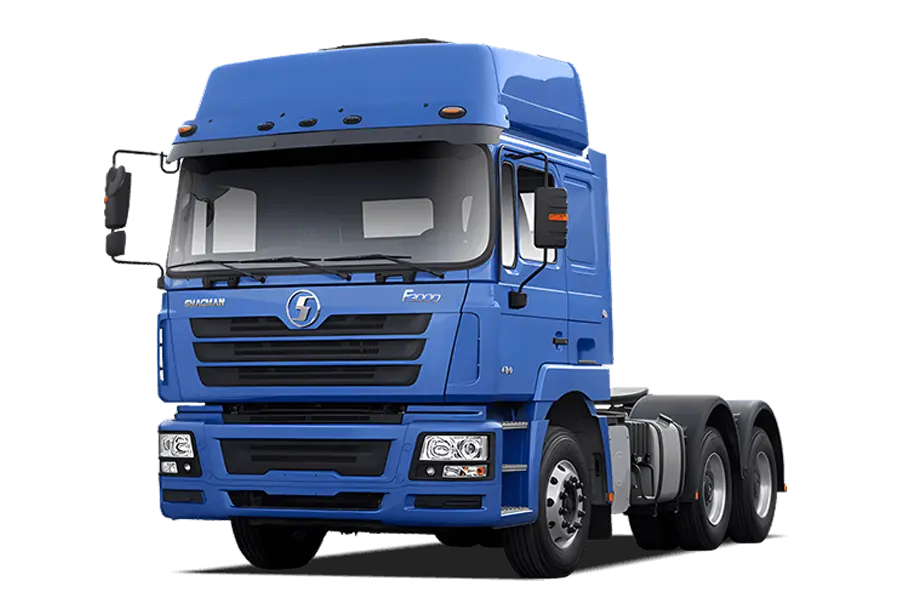

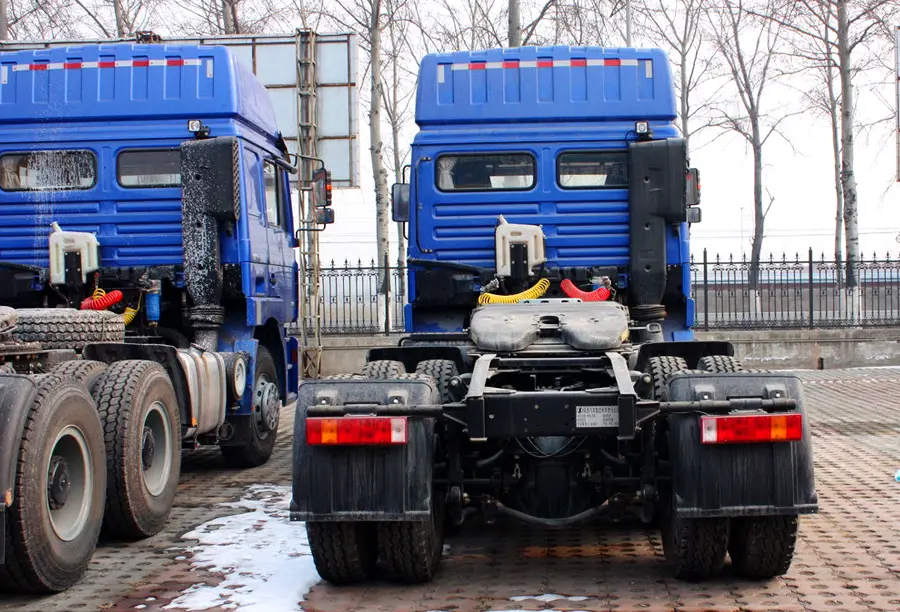

The Shacman F3000 375hp 6×4 Tractor Truck is engineered as a durable, cost-effective solution for medium-to-heavy duty transportation, excelling in the following sectors:
Regional Logistics & Bulk Cargo Transport
Core Use: Hauling general cargo, construction materials (sand, gravel), and agricultural products over regional distances (200-500 km).
Why F3000: Its 375hp WEICHAI engine balances power and fuel efficiency, while the 6×4 drive ensures stability on rural or semi-paved roads common in regional networks.
Core Use: Transporting ores, coal, and mining debris from extraction sites to processing plants.
Why F3000: Reinforced chassis (high-strength steel frame) and heavy-duty axles (e.g., MAN-series rear axles) withstand rough terrain and heavy loads, typical in mining environments.
Core Use: Moving heavy machinery, steel structures, and building materials to construction sites.
Why F3000: The 12-speed manual transmission (FAST series) provides precise low-speed control, critical for maneuvering in tight construction zones.
Core Use: Serving as a workhorse in regions like Africa, Southeast Asia, and Central Asia, where affordability and easy maintenance are prioritized.
Why F3000: Simplified design reduces repair complexity, and Shacman’s localized service networks in these markets ensure operational uptime.
Reliability: Proven powertrain components (WEICHAI engine, FAST transmission) minimize downtime.
Payload Efficiency: 6×4 configuration supports Gross Combination Weight (GCW) up to 40-45 tons, ideal for medium-heavy loads.
Cost-Effectiveness: Lower initial investment compared to premium models, with readily available spare parts globally.
| Category | Details |
|---|---|
| Truck Name | Shacman F3000 375hp 6×4 Tractor Truck |
| Engine | – Model: WEICHAI WP10.375E32 – Power: 375 hp @ 2200 rpm – Torque: ~1800 Nm @ 1200-1600 rpm – Displacement: 9.726 L – Emission Standard: Euro 2/Euro 3 |
| Transmission | – Type: FAST 12JSD160TA manual transmission – Gears: 12 forward + 2 reverse – Clutch: 430mm dry single-plate |
| Drive Configuration | 6×4 (6 wheels, 4 driven) |
| Axles | – Front Axle: MAN 7.5T (I-beam) – Rear Axle: Double reduction 16T (ratio: 5.262) – Suspension: Multi-leaf spring (10/12 leaves) |
| Chassis | – Frame: 280×8+6 mm (high-strength steel) – Wheelbase: 3800/4200 mm (configurable) |
| Tires | 12.00R20 or 12R22.5 tubeless radial tires (6 pcs + 1 spare) |
| Fuel System | – Type: Diesel – Tank Capacity: 400L (single steel tank) |
| Cabin | – High-roof sleeper cab (left-hand drive) – Features: Air suspension seat, manual A/C, single bunk bed, heating system |
| Weight | – Curb Weight: ~8,500 kg – Gross Combination Weight (GCW): Up to 40,000 kg |
| Braking | – Service Brake: Dual-circuit air brake with drum brakes – Parking Brake: Spring brake on rear axle |
| Steering | Power-assisted hydraulic steering |
| Dimensions (L×W×H) | ~7200×2490×3100 mm (varies by wheelbase) |
| Additional Equipment | – 120Ah battery, 24V electrical system – Manual windows, mechanical mirrors – Engine preheating system |
