Model – SX3256UR384
Type of vehicle – DumpTruck
Series – F3000
Power – 366hp
Engine – Weichai WP10.336E40
Total mass – 25 tons
Overall dimension (mm) – 8621X2490X3450
Model – SX3256UR384
Type of vehicle – DumpTruck
Series – F3000
Power – 366hp
Engine – Weichai WP10.336E40
Total mass – 25 tons
Overall dimension (mm) – 8621X2490X3450

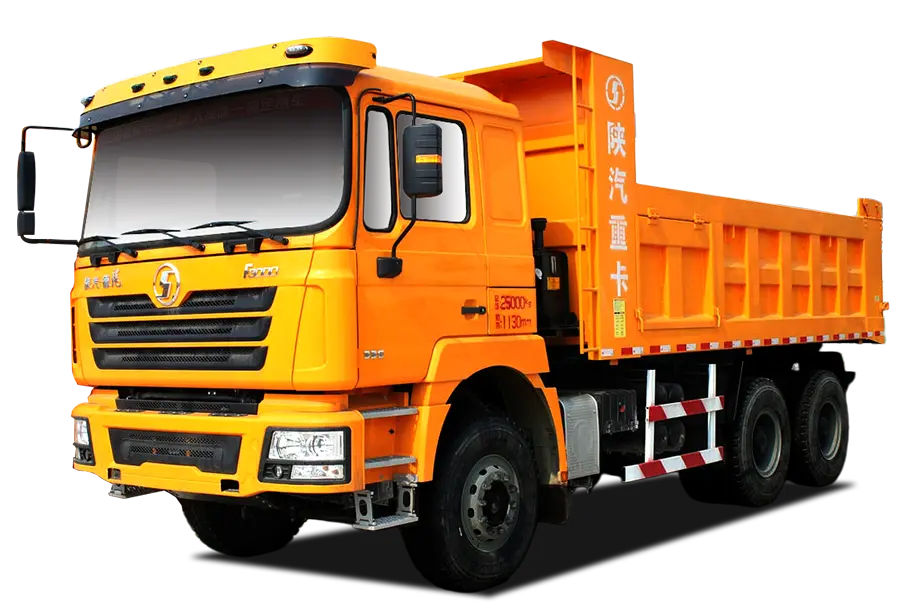

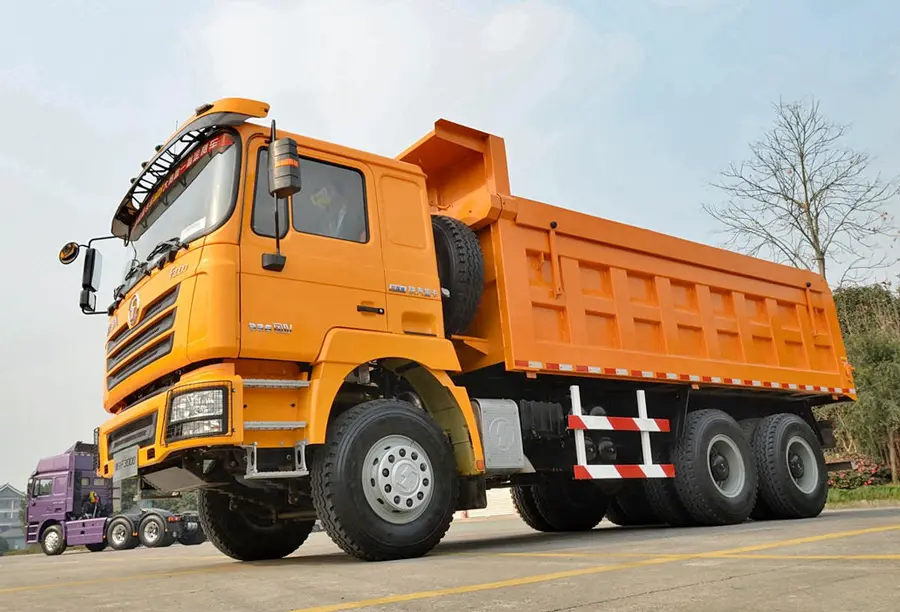

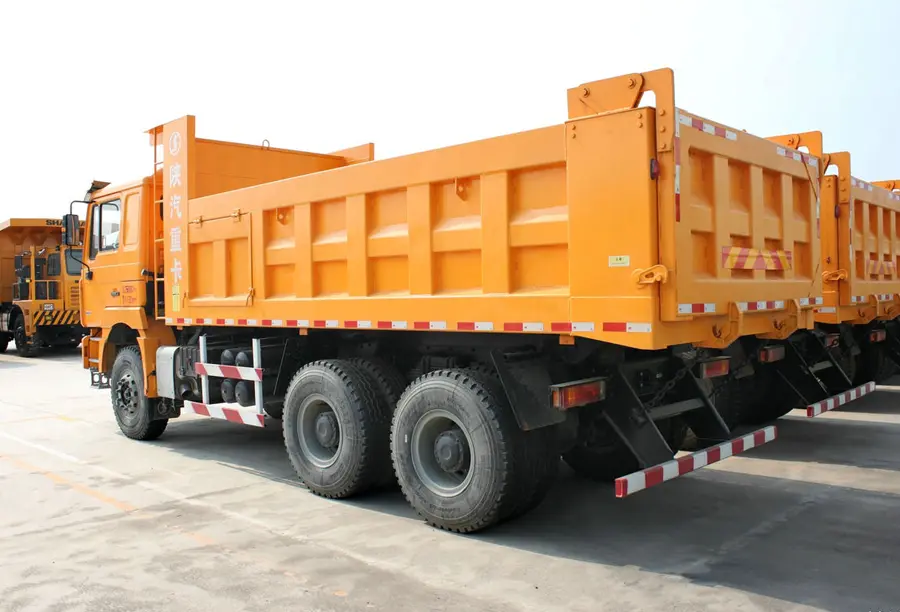

The Shacman F3000 6×4 dump truck is a heavy-duty workhorse designed to tackle the toughest construction and mining challenges. Powered by a robust 366 horsepower engine, this vehicle delivers exceptional power and torque, ensuring efficient hauling even on steep inclines or rough terrain. Its 6×4 wheel configuration enhances traction and stability, making it ideal for off-road conditions where reliability is paramount.
Equipped with a high-capacity dump body, the Shacman F3000 excels in transporting bulk materials like gravel, sand, or ore with ease. The advanced hydraulic system allows for quick and smooth tipping, minimizing downtime and boosting productivity. Additionally, the truck features a reinforced chassis and durable suspension, ensuring longevity and reducing maintenance costs over time.
With a focus on operator comfort, the cabin offers ergonomic controls, ample space, and modern amenities to reduce fatigue during long shifts. Safety is prioritized through features like anti-lock braking systems (ABS) and stability control, enhancing control in challenging environments.
Ideal for large-scale construction sites, quarries, or mining operations, the Shacman F3000 366hp 6×4 dump truck combines power, durability, and efficiency to maximize workflow and deliver outstanding performance. Whether moving heavy loads or navigating rugged landscapes, this truck is built to exceed expectations.
| Category | Details |
|---|---|
| Truck Name | Shacman F3000 366hp 6×4 Dump Truck |
| Engine | – Model: WEICHAI WP10/WP12 series (assumed for 366hp) – Power: 366 hp @ 2200 rpm – Torque: ~1800-2000 Nm @ 1200-1600 rpm – Displacement: ~9.7-11.6 L – Emission Standard: Euro 2/Euro 3 |
| Transmission | – Type: FAST 10JSD180/12JSD160TA manual transmission – Gears: 10/12 forward + 2 reverse – Clutch: 430mm dry single-plate |
| Drive Configuration | 6×4 (6 wheels, 4 driven) |
| Axles | – Front Axle: MAN 9.5T (I-beam) – Rear Axle: MAN 16T double reduction (ratio: 5.262) – Suspension: Multi-leaf spring (10-12 leaves) |
| Chassis | – Frame: 280×8+6 mm (high-strength steel) – Wheelbase: 3800/4200 mm (configurable) |
| Tires | 12.00R20 or 12R22.5 tubeless radial tires (10 pcs + 1 spare) |
| Body & Load Capacity | – Body Volume: 5.3-6.2 m³ (steel/reinforced alloy tipper) – Payload: 20-30 tons – Lifting System: Hydraulic front tipping |
| Fuel System | – Type: Diesel – Tank Capacity: 400-600L (single steel tank) |
| Cabin | – High-roof sleeper cab (left-hand drive) – Features: Air suspension seat, manual A/C, single bunk bed, heating system |
| Weight | – Curb Weight: ~10,500 kg – Gross Vehicle Weight (GVW): ~25,000 kg – Gross Combination Weight (GCW): Up to 40,000 kg |
| Braking | – Service Brake: Dual-circuit air brake with drum brakes + ABS – Parking Brake: Spring brake on rear axle |
| Steering | Power-assisted hydraulic steering |
| Dimensions (L×W×H) | ~8550×2550×3500 mm (varies by wheelbase and body configuration) |
| Additional Equipment | – 120Ah battery, 24V electrical system – Engine preheating system, LED headlights |
