Choosing the right dump truck for mining and construction sites directly affects operational efficiency and total cost of ownership. SHACMAN offers a differentiated product line for these demanding applications. This guide explains the characteristics and best-use boundaries of each series based on real-world operating conditions.
Shacman X 3000 Dump Truck For Sale
Although both mining and construction involve heavy-haul transport, their priorities differ:
Mining sites: Roads are often rugged with steep grades and heavy dust. Requirements center on traction, gradeability, chassis strength, and braking safety. Open-pit mines also face rock impact and high dust concentrations.
Construction sites: Materials vary widely (sand, gravel, earth, demolition waste). Road conditions are mixed, requiring both off-road capability and maneuverability and loading efficiency.
No single model is “best” for everything — the key is matching the truck to your specific operation.

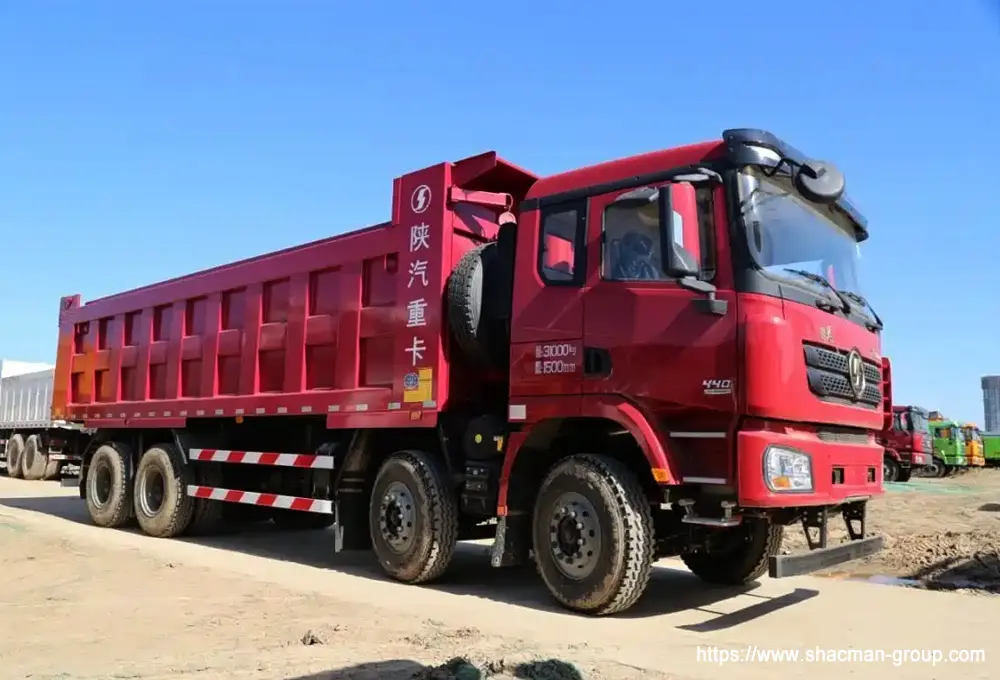

The X3000 is SHACMAN’s flagship dump truck platform for high-intensity applications, available in 6×4 and 8×4 configurations. It has been validated in extreme environments such as high-altitude mines in Peru and the copper belt in Zambia.
Core powertrain configurations:
Equipped with Weichai WP12/WP13 or Cummins ISM/ISZ diesel engines, covering 380–460 hp, with abundant low-RPM torque suitable for loaded hill starts.
Matched with FAST 12-speed or 16-speed manual transmission, with optional hydraulic retarder for safe long downhill operation.
Drive axles use Hande MAN-technology two-stage reduction axles with wheel-end reduction and inter-wheel/inter-axle differential locks for superior traction on soft, muddy ground.
Application differences between configurations:
| Configuration | Body Capacity | Primary Applications | Advantages |
| X3000 6×4 | 15–18 m³ | Road construction, quarries, medium mines | Small turning radius, strong maneuverability on narrow roads |
| X3000 8×4 | 20–24 m³ | Open-pit mines, large-scale earthworks, tailings transport | Larger payload per trip, lower cost per ton transported |
The above comparison is based on SHACMAN official product data released for the Peruvian market. For users who need to cover multiple work fronts, a mixed fleet often delivers greater efficiency than a single model.
The F3000 series is one of the highest-volume and most widely used heavy-duty dump platforms in SHACMAN’s history, known for its mature structure, easy maintenance, and outstanding cost-effectiveness.
Typical configurations:
6×4 drive, powered by Weichai WP10/WP12 series engines, 340–430 hp, torque up to 2,100 N·m.
Body capacity 16–25 m³, using high-strength wear-resistant steel, with base and side plate thickness customizable to operating conditions (e.g., 8mm base + 6mm sides).
MAN 9.5-ton front axle, MAN 16-ton rear axle with two-stage reduction, ratio options of 5.262 or 5.92 for balanced gradeability and highway performance.
Shacman F3000 6×4 dump truck with 340 HP engine, Euro II emission and 16 m3 dump body. Factory price and CIF quotation available.
The F3000 achieved fleet-scale operation of over 1,300 units in the Trans-Guinean railway project supporting the Simandou iron ore mine in Guinea, enduring both tropical monsoon climate (over 4,000mm annual rainfall) and high-temperature dust in the dry season. This case demonstrates the F3000’s reliable field performance in extreme climates and high-intensity continuous operation.
In the South African market, the F3000 is positioned as the preferred mining dump truck, widely serving platinum and coal mines in Limpopo and Northern Cape provinces, with dust-proof air filtration systems and reinforced chassis specifically optimized for local dust conditions.
For large open-pit mines and large-scale earthwork stripping where maximizing single-trip efficiency is critical, SHACMAN offers dedicated off-highway mining trucks such as the STL360 series.
Key features:
Payload range from 30 tons to 100 tons, rigid frame structure designed specifically for non-road mining environments.
Powered by Weichai WP13/WP17 large-displacement engines, 460–680 hp, matched with Allison automatic transmission or FAST manual transmission.
U-shaped wear-resistant steel body with 18–60 m³ capacity; hydraulic lift system for fast unloading.
Note that these rigid mining trucks belong to a different product category from conventional on-road dump trucks (X3000, F3000). Their dimensions, axle loads, and operating range are typically limited to internal mine roads and are not suitable for public road operation.
Shacman 90ton Mining Dump Truck
Based on specific work scenarios, consider the following decision logic:
Open-pit stripping or large-scale earthwork transfer, maximizing payload per trip
Relatively fixed haul distance, road width accommodates four-axle vehicles
Need some on-road capability (e.g., mine to crusher/stockpile)
Shacman X3000
Construction site material transport, mixed road conditions requiring good maneuverability
Quarries and medium mines with many slopes, sensitive to turning radius
Small to medium fleets balancing purchase cost and operating efficiency

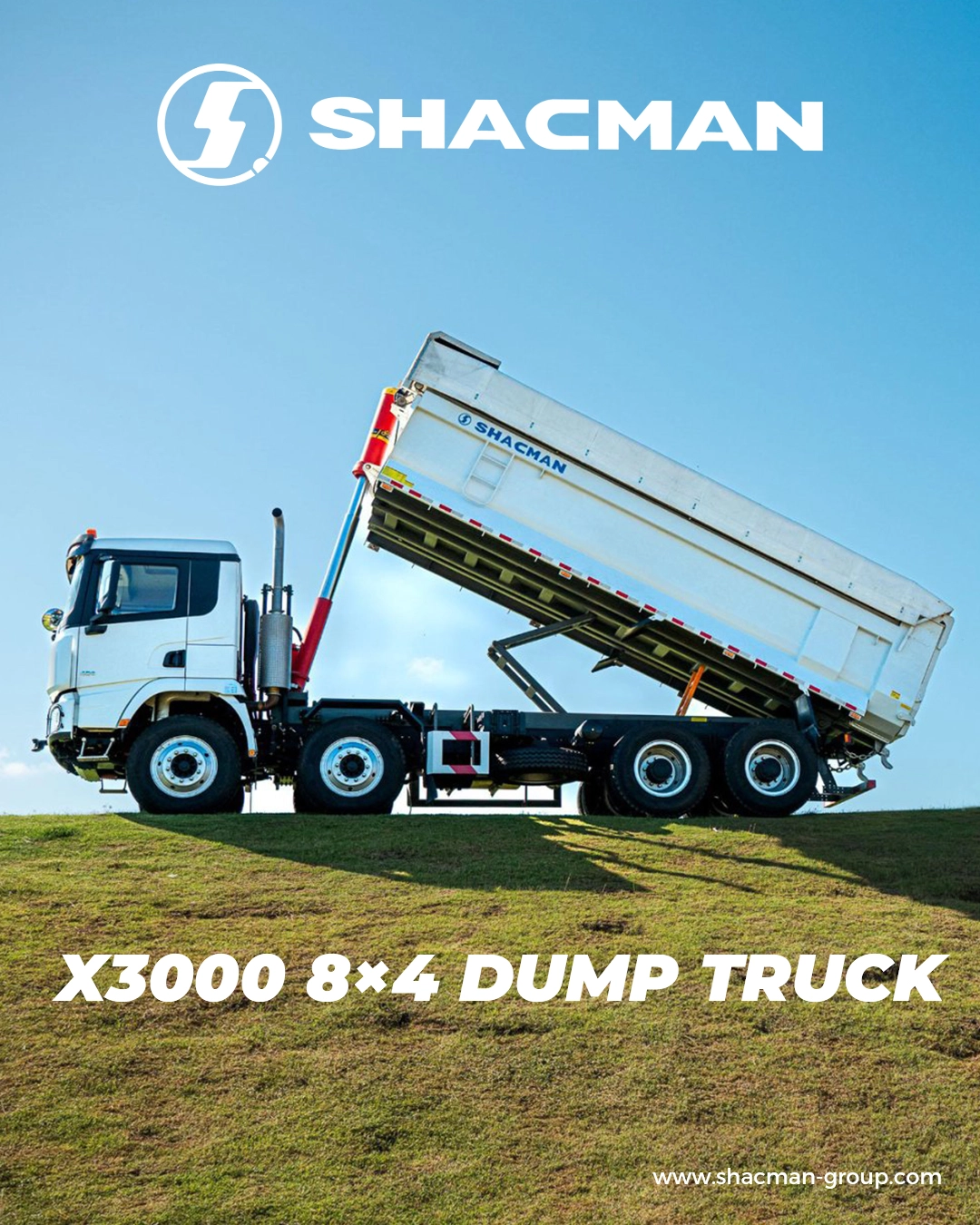

Shacman X3000 8×4 dump truck with 430 HP engine, Euro V emission and 22 m3 dump body. Factory price and CIF quotation available.
Large open-pit mine, short haul distance, high volume, loading equipment is large excavators
Mine roads allow large-dimension, high-axle-load vehicles
Pursuing maximum single-trip efficiency with no on-road requirement
Regardless of the series chosen, the following points are especially critical for mining and construction sites:
Match loading equipment. Dump truck efficiency depends not only on the truck itself but also on compatibility with excavators or loaders. The target is typically 3–5 buckets to fill one truck. If loading equipment is too small, the advantage of large-capacity models cannot be realized; if too large, there is an overload risk.
Focus on braking and retarder systems. Long downhill sections in mines are high-risk accident scenarios. Models equipped with hydraulic retarders or engine compression brakes can significantly reduce the risk of brake thermal fade. The X3000 is well-equipped in this regard.
Evaluate local service capability. Even the most reliable truck requires timely parts supply and technical support. SHACMAN has established parts distribution centers and service networks in major mining markets such as Zambia, South Africa, and Peru, which is critical for maintaining fleet uptime.
SHACMAN offers a tiered product range for mining and construction sites: the X3000 positions itself for high-intensity combined applications with flagship powertrain and comfort; the F3000 focuses on heavy-duty cost-effectiveness with a proven mature platform; and dedicated off-highway rigid trucks serve the professional needs of large-tonnage open-pit mines. The final choice should be based on a comprehensive assessment of specific mine conditions, material characteristics, loading equipment compatibility, and local service support — not simply pursuing the “maximum” of any single parameter.
