SHACMAN (Shaanxi Automobile Group) has become a leading manufacturer of heavy-duty trucks for demanding markets across Africa, the Middle East, South America, and Southeast Asia. The company produces a comprehensive range of trucks built for construction, mining, logistics, and municipal applications.
This catalog provides detailed specifications for SHACMAN’s most popular 6×4 and 8×4 heavy-duty models, including the X3000, X5000, and F3000 series. Whether you are evaluating trucks for a fleet or sourcing a single unit, these specifications will help you compare configurations and select the right model for your operation.
SHACMAN X3000 6×4 tractor truck with gold emblem
The X3000 6×4 is SHACMAN’s flagship model for long-haul logistics and heavy freight transportation. It is designed for container transport, bulk cargo, and cross-border logistics operations.
SHACMAN X3000 6×4 tractor truck with 400 HP engine
Key Specifications (Model SX42554V324CR):
| Parameter | Specification |
| Drive Type | 6×4 |
| GVW | 55,000 kg |
| Engine | Weichai WP12 / Cummins ISME |
| Horsepower | 420-430 HP |
| Max Torque | 2,010 N·m |
| Transmission | FAST 12JSD200T-B |
| Front Axle | MAN 7.5T |
| Rear Axle | MAN 13T single reduction |
| Fuel Tank | 400L + optional 1000L auxiliary |
| Tires | 12R22.5 |
| Cab | X3000 extended high-top, double sleeper |
| Max Speed | 110 km/h |
Typical Applications: Long-distance container haulage, heavy freight transport, highway logistics.
SHACMAN F3000 6×4 dump truck with 380 HP engine

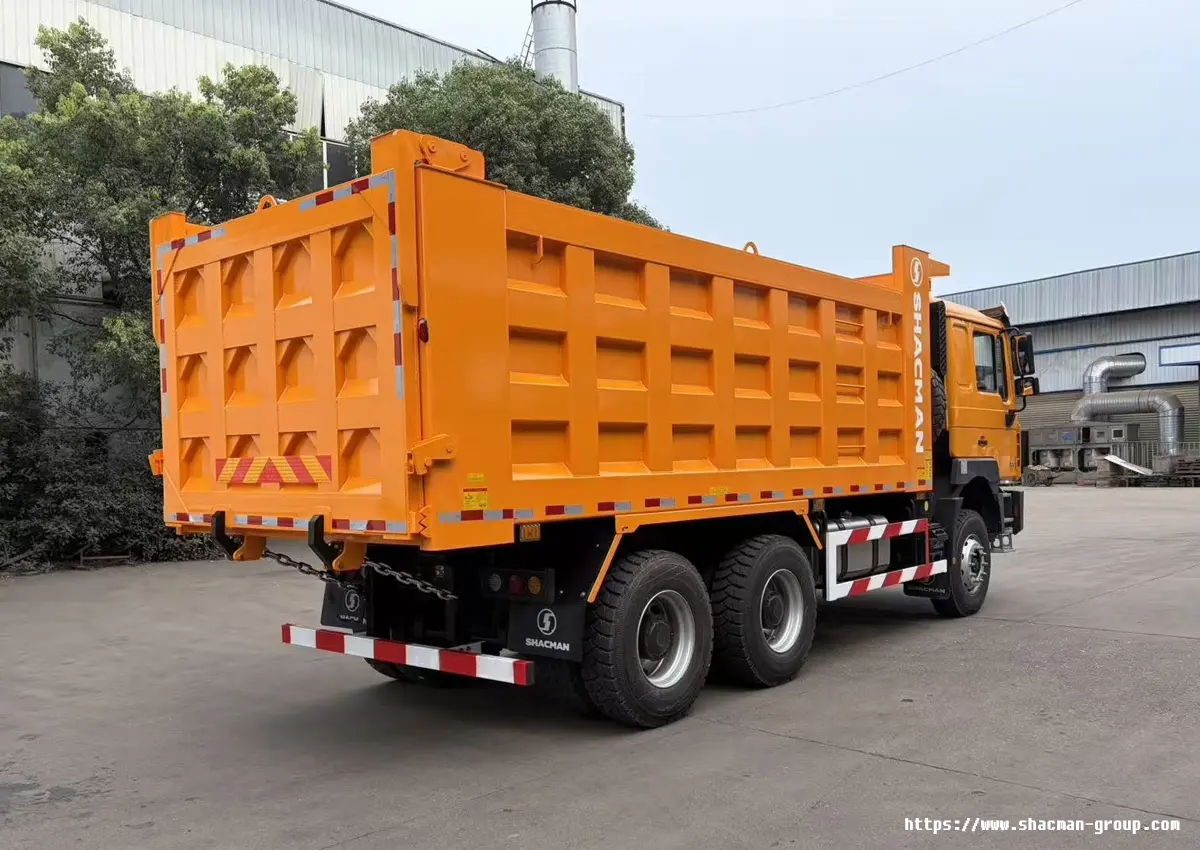

SHACMAN F3000 dump truck rear view with reinforced tailgate

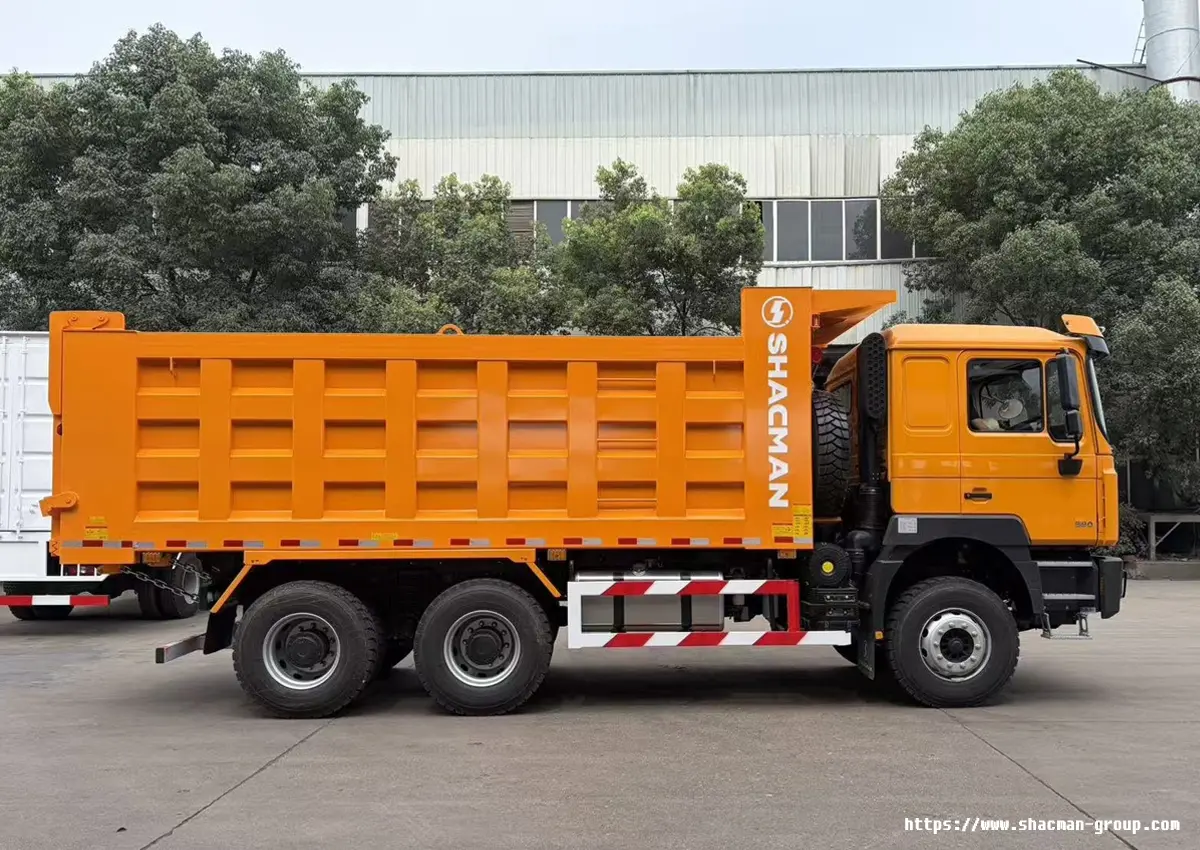

SHACMAN F3000 6×4 dump truck side view with high capacity cargo box
The F3000 6×4 is one of SHACMAN’s most mature and widely exported models, particularly popular in African and Southeast Asian markets for its durability and ease of maintenance.
Key Specifications:
| Parameter | Specification |
| Drive Type | 6×4 |
| GCW | 50,000 kg |
| Engine | Weichai WP10/WP12/M10/ISM11 |
| Horsepower | 336-430 HP |
| Transmission | FAST 10/12-speed manual |
| Front Axle | 9.5T |
| Rear Axle | 16T double-stage |
| Wheelbase | 3800+1350mm |
| Cargo Box | 5600×2300×1500mm |
| Fuel Tank | 400L aluminum alloy |
| Tires | 12.00R20 |
| Payload | 21-30 tons |
Typical Applications: Mining, construction sites, road building, quarry operations.
SHACMAN F3000 6×4 dump truck with 380 HP engine
The U-Shape variant offers a lower center of gravity and more efficient material discharge compared to traditional rectangular bodies.
Key Specifications (Model SX3255DT384):
| Parameter | Specification |
| Drive Type | 6×4 |
| Engine | Weichai WP10.380E22, 380 HP |
| Transmission | FAST 10JSD160+QH50 |
| Front Axle | MAN 7.5T |
| Rear Axle | MAN 16T |
| Cargo Box | 5400×2300×1500mm |
| Fuel Tank | 400L |
| Tires | 12.00-20 |
| Overall Size | 8335×2550×3450mm |
Typical Applications: Bulk material hauling, quarrying, large-scale earthmoving.
SHACMAN heavy duty dump truck rear cargo box
The X5000 8×4 represents SHACMAN’s latest generation of heavy-duty dump trucks, engineered for large-scale mining and infrastructure projects requiring maximum payload capacity.

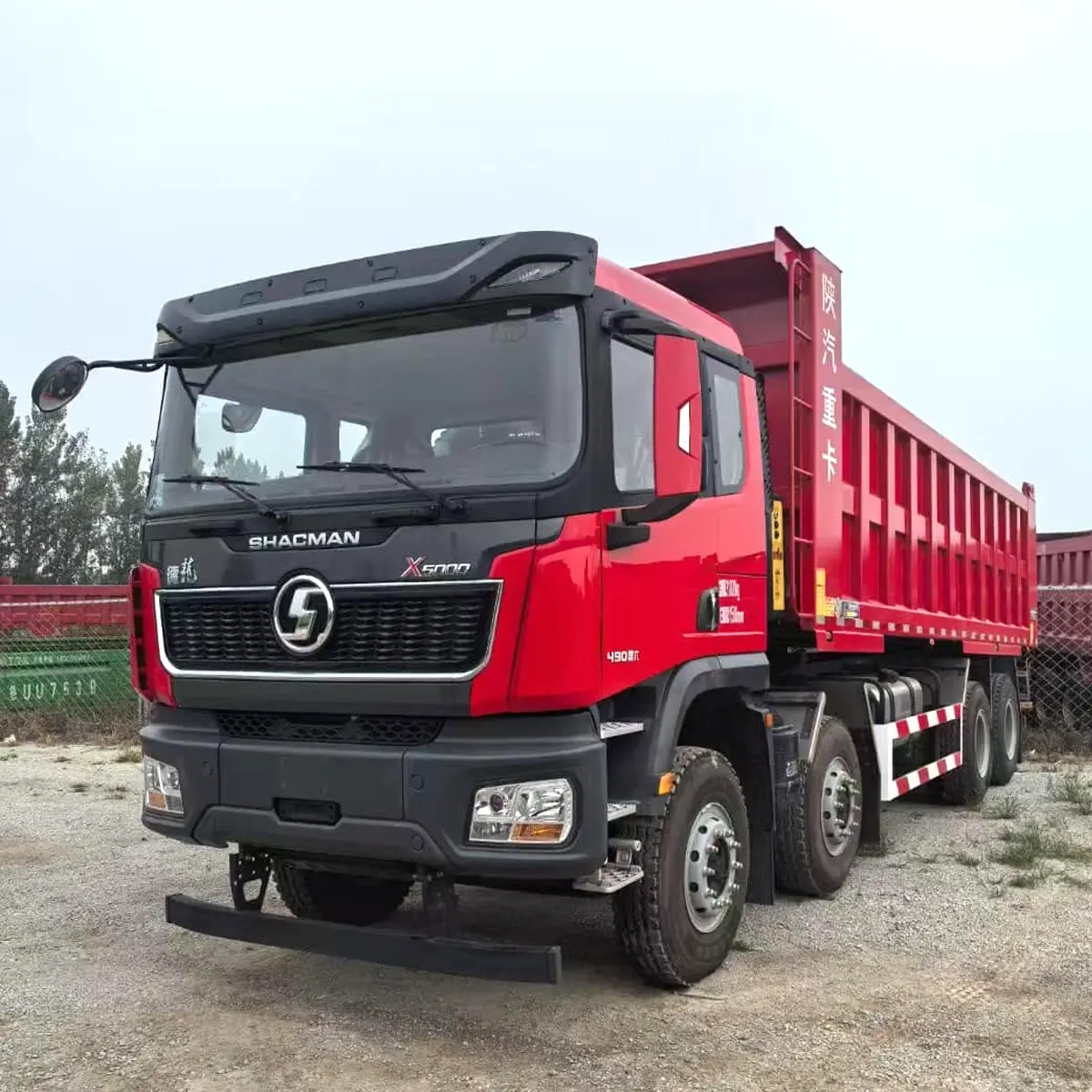

HACMAN X5000 8×4 dump truck with 490 HP engine
Key Specifications (Model SX33195D406):
| Parameter | Specification |
| Drive Type | 8×4 |
| Wheelbase | 1950+3825+1400mm |
| Engine | Weichai WP12.430E62 |
| Horsepower | 430-560 HP |
| Max Torque | 2,100 N·m |
| Transmission | Fast 12-speed |
| Rear Axle Ratio | 5.92 |
| Overall Size | 10.55×2.55×3.5m |
| Total Mass | 31 tons |
| Rated Load | 15.37 tons |
| Fuel Tank | 400L |
| Emission | National VI |

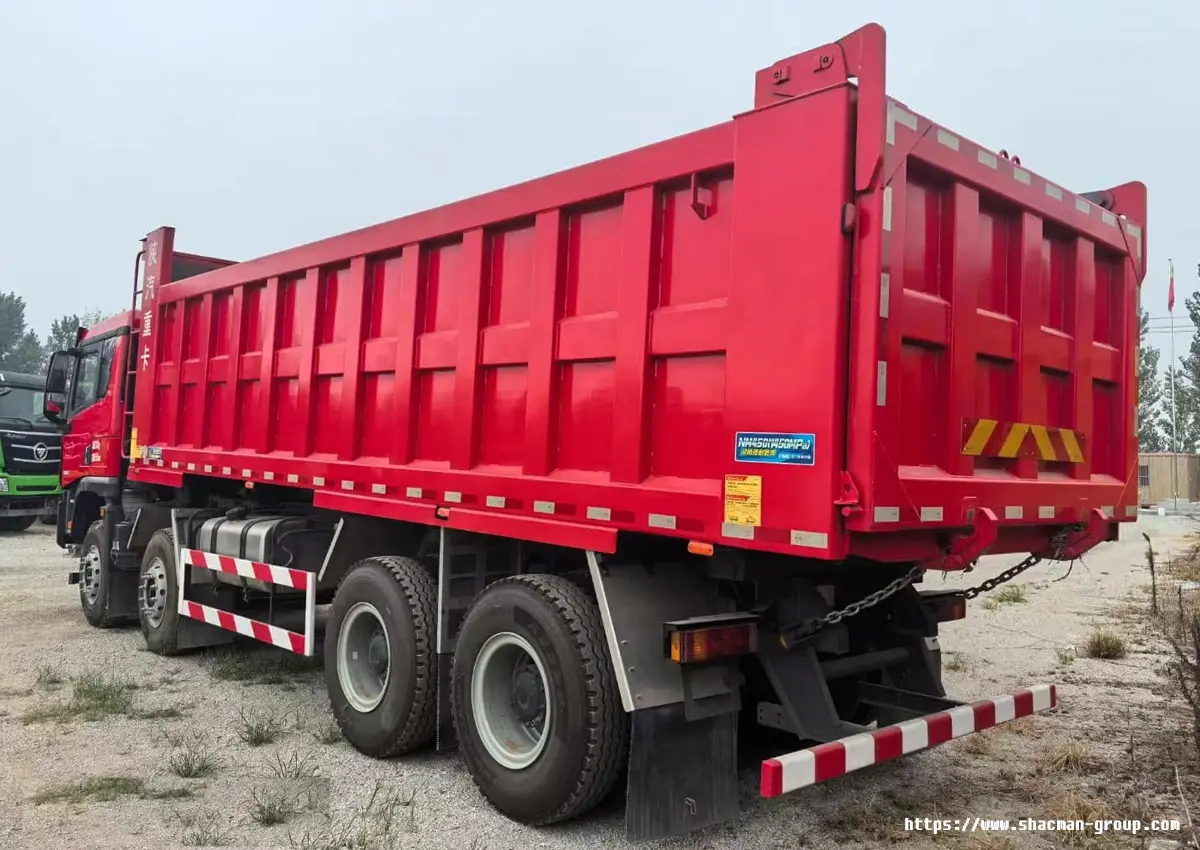

SHACMAN X5000 8×4 dump truck side view
Key Advantages:
8% lower fuel consumption compared to X3000 due to high-pressure common rail system and aerodynamic cab design
Double-layer frame rail (8+7mm thickness) supports 50-ton loads
8mm NM450 steel cargo body resists abrasion in mining scenarios
Optional telematics system with real-time monitoring
Air-suspended driver seat with heating/cooling function

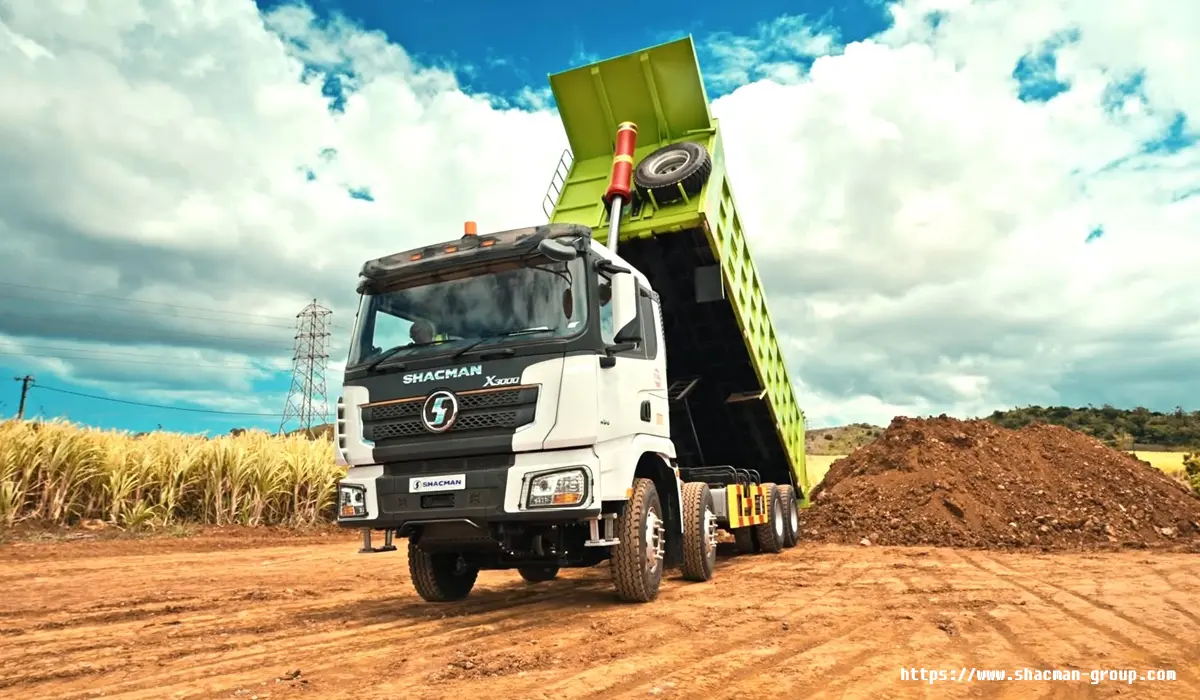

SHACMAN X3000 dump truck raising cargo box to unload
The X3000 8×4 is a proven workhorse for heavy-duty construction and mining, available with optional tarpaulin cover for environmental compliance.
Key Specifications (Model SX33156T366):
| Parameter | Specification |
| Drive Type | 8×4 |
| Wheelbase | 1800+3575+1400mm |
| Engine | Weichai WP10.380E22 |
| Horsepower | 380 HP |
| Max Torque | 1,600 N·m |
| Transmission | FAST 10JSD180+QH50 |
| Front Axle | 9.5T MAN technology |
| Rear Axle | 16T MAN double reduction |
| GVW | ≤50 tons |
| Fuel Tank | 300L aluminum |
| Tires | 12.00R20 |
| Emission | Euro II |
SHACMAN X3000 8×4 dump truck with green cargo box
Key Features:
Reinforced 8×4 chassis frame for superior load-bearing capacity
Fast, stable hydraulic dump system for sand, gravel, coal, and ore
High-strength, waterproof, UV-resistant tarpaulin cover available

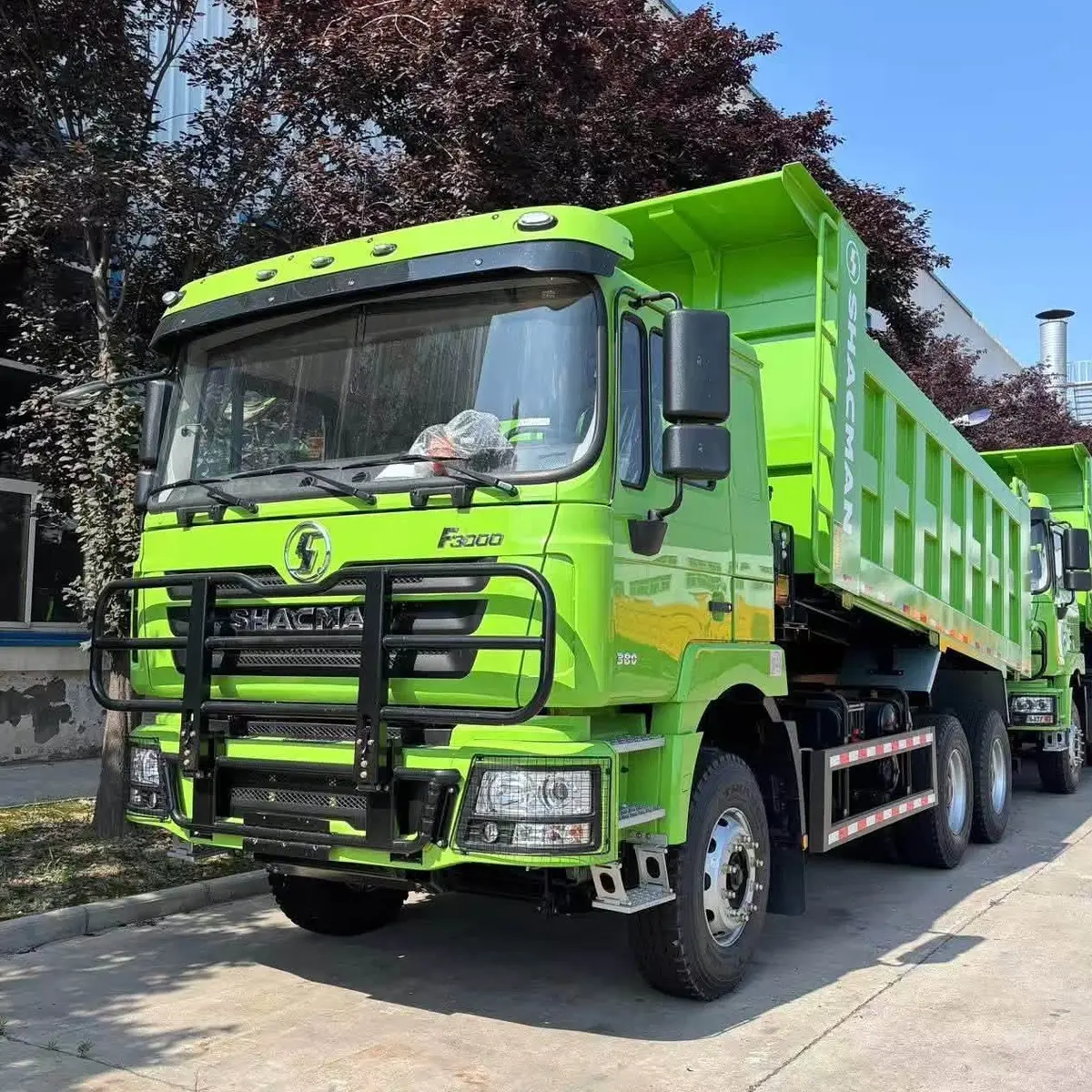

SHACMAN F3000 8×4 dump truck with 380 HP engine
| Feature | 6×4 Configuration | 8×4 Configuration |
| Axle Layout | 3 axles (1 steering + 2 drive) | 4 axles (2 steering + 2 drive) |
| Typical Payload | 21-30 tons | 40-50 tons |
| Dump Body Volume | 15-18 m³ | 20-25 m³ |
| Turning Radius | Tighter, more agile | Larger, less maneuverable |
| Best For | Road construction, quarries, urban development | Open-pit mining, massive earthmoving |
| Cost Efficiency | Better for smaller, frequent trips | Lower cost-per-ton for large volumes |

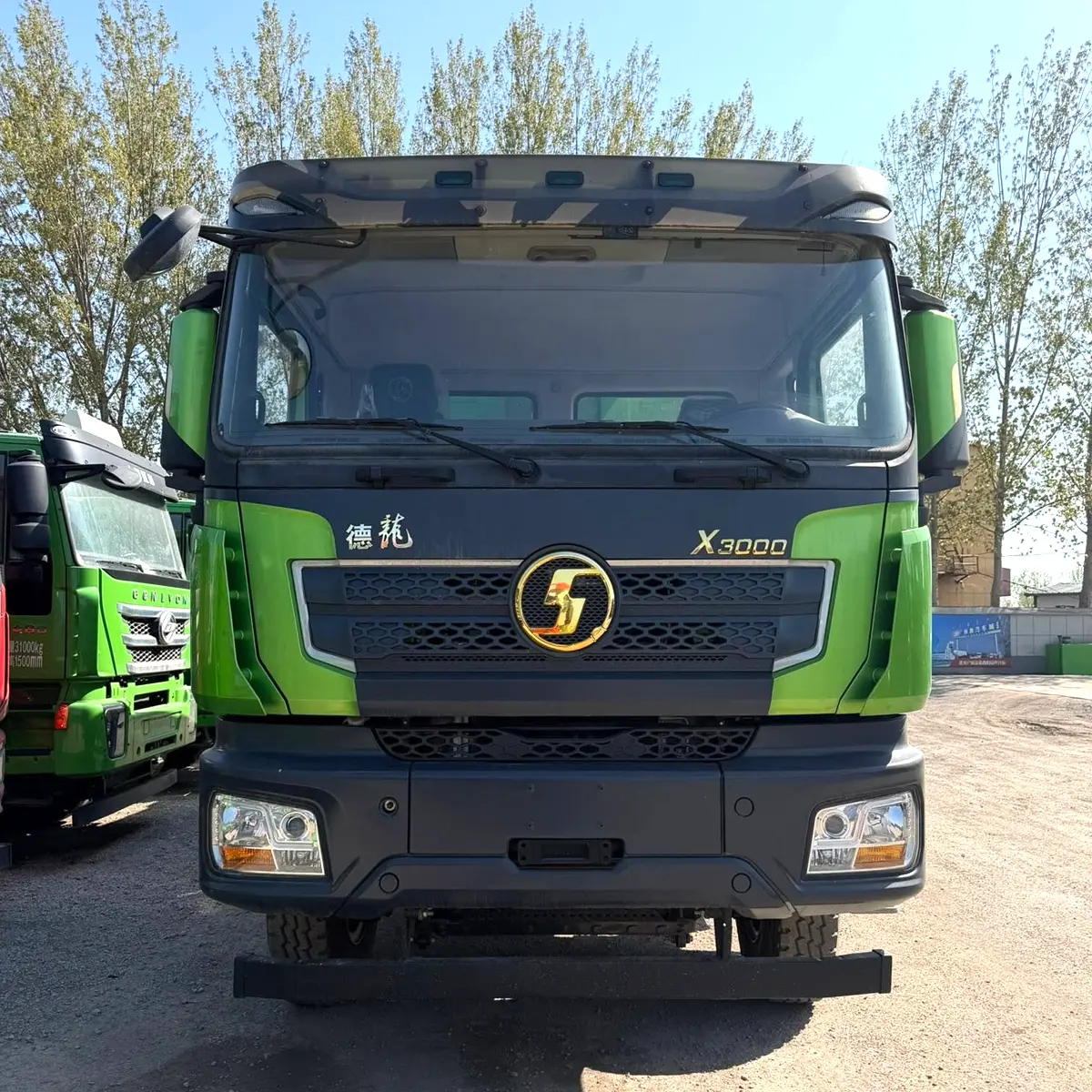

SHACMAN X3000 8×4 dump truck front view
When evaluating 6×4 and 8×4 models, consider these factors:
1. Payload Requirements
If your operation requires hauling 40+ tons per trip, an 8×4 configuration is essential. For loads under 30 tons, a 6×4 offers better maneuverability and lower operating costs.
2. Road Conditions
For narrow mountain roads and tight construction sites, the 6×4’s tighter turning radius is a significant advantage. For open-pit mining with wide haul roads, the 8×4’s higher payload capacity delivers better efficiency.
3. Engine and Transmission Matching
SHACMAN trucks pair Weichai or Cummins engines with FAST transmissions. The powertrain combination determines fuel efficiency, climbing capability, and durability. For high-altitude operations, consider engines with power compensation systems.
4. Emission Standards
SHACMAN offers models from Euro II to Euro VI and National VI standards. Match your selection to local fuel quality and emissions regulations.

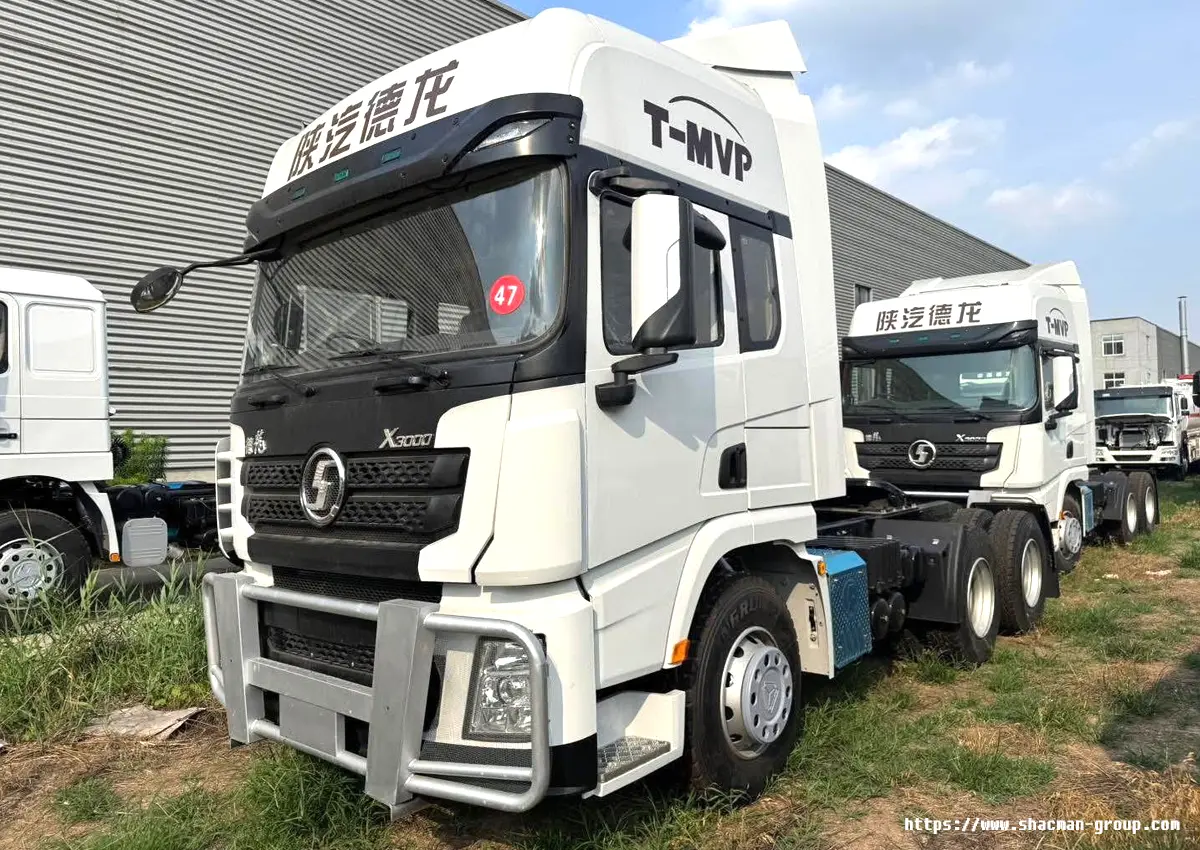

SHACMAN X3000 6×4 tractor truck with T-MVP cab
Shaanxi Automobile Holding Group employs over 32,000 people and operates 41 overseas offices with 380 service stations worldwide. The company designs and manufactures military off-road vehicles, heavy-duty trucks, medium and light trucks, buses, Cummins engines, heavy axles, and vehicle components.
SHACMAN’s heavy-duty truck range includes the X3000, X5000, and F3000 series, available in 6×4 and 8×4 configurations with left-hand or right-hand drive options for global markets.
