Mixing Drum Capacity – 8–12 cubic meters
Gross Vehicle Weight – 25,000–31,000 kg
Engine – WP10/WP12/M10/ISM11
Dimensions (L×W×H) – 9,800×2,550×3,900 mm
Mixing Drum Capacity – 8–12 cubic meters
Gross Vehicle Weight – 25,000–31,000 kg
Engine – WP10/WP12/M10/ISM11
Dimensions (L×W×H) – 9,800×2,550×3,900 mm

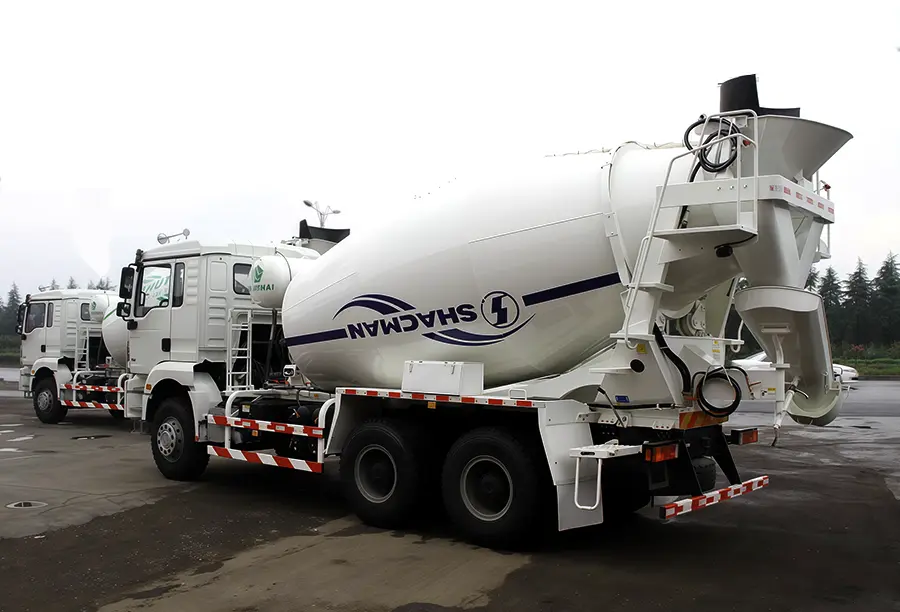

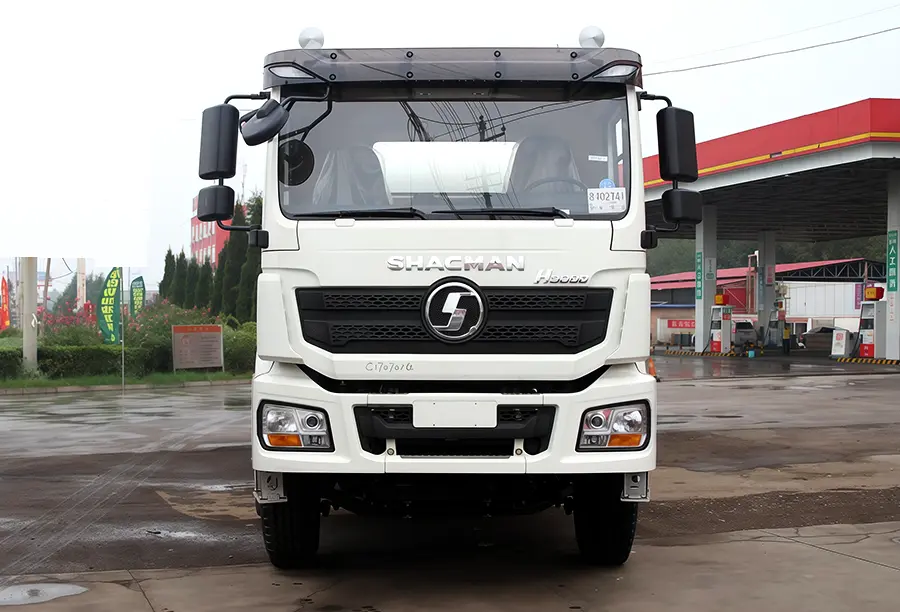

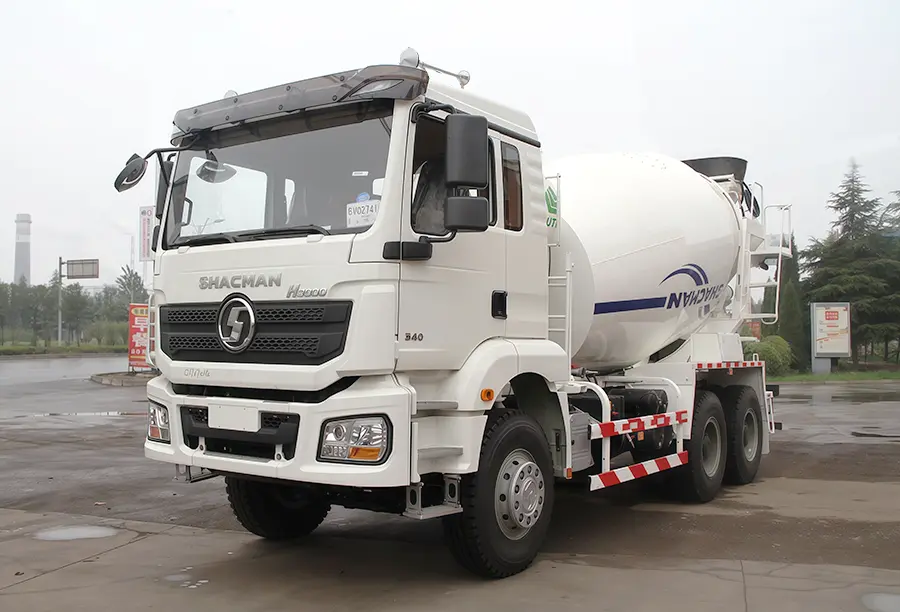

The SHACMAN H3000 Cement Mixer Truck is a mid-to-heavy duty concrete transport vehicle built on SHACMAN’s reliable H3000 chassis, designed for urban construction sites, highway projects, and infrastructure development. It balances payload capacity, maneuverability, and durability, making it suitable for emerging markets like Southeast Asia, Africa, and the Middle East.
Key Advantages for Concrete Transport
Efficient Mixing Performance: The drum, made of high-strength wear-resistant steel (NM400), ensures uniform mixing of concrete with minimal segregation. The hydraulic system (powered by the truck’s engine) enables smooth rotation and precise discharge control.
Maneuverable Chassis: With a wheelbase of 4,500–5,600 mm (6×4 model) and minimum turning radius of ≤8.5m, it navigates narrow construction roads and urban job sites easily.
Durable Powertrain: The Weichai WP7 engine delivers 1,100 N·m torque at 1,200–1,800 RPM, providing strong climbing ability for hilly terrain. Fuel efficiency is optimized at ~32–38 L/100km.
Typical Applications
Urban Construction: Transporting ready-mix concrete for high-rise buildings, bridges, and residential projects.
Highway & Infrastructure: Supplying concrete for road pavements, tunnels, and airport runways.
Rural Development: Supporting small-to-medium construction in remote areas with limited access to stationary mixers.
Technical Highlights
Mixing Drum Design: Tapered drum with spiral blades ensures 90%+ discharge efficiency, minimizing residual concrete. Optional water washing system simplifies post-job cleaning.
Chassis Reliability: Reinforced steel frame (6mm thick rails) and heavy-duty axles (front 7.5T / rear 13T×2) handle full loads under harsh conditions.
Customization Options: Available with left/right-hand drive, drum volume adjustments (8–14m³), and additional features like rear-view cameras or GPS tracking for fleet management.
| SHACMAN H3000 CEMENT MIXER TRUCK | ||
| Drive type | 6×4 | |
| Vehicle model | SX5255GJBHR384 | |
| Vehicle Weight | GVW：15 tons | |
| GCW：35 tons | ||
| Frame | 850×300(8+7) | |
| Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L – 12L | ||
| Power: 300 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
| Cummins | Emissions: Euro II to Euro V | |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
| Transmission | RTD11509C | |
| Clutch | φ430 | |
| Steering gear | ZF8098 | |
| Axle | Front axle: MAN 9.5 ton | |
| Rear axle: MAN 16 ton single or double reduction | ||
| Gear ratio: 4.769 – 5.92 | ||
| Suspension | Multi leaf spring front and rear setup | |
| Tires | 315 / 80R22.5 | |
| 12R22.5 | ||
| 12.00R20 | ||
| Fuel tank | 400 – 700 liter aluminum or steel tank | |
| Dimensions(LxWxH) | 8575x2495x3774 | |
| Volume(m³) | 3775+1400 | |
| Wheelbase | 9 | |
| Approach/Departure angle(°) | 20/18 | |
| Max.gradeability(%) | 34 | |
| Cab | Type | MAN H3000, lengthened flat roof |
| Equipments | Rear window Manual sunroof Hydraulic driver seat with seatbelts Hydraulic suspension of cab Automated air conditioning Electric window Radio with MP3 piayer |
|
| Optional | Air cushioned drivers seate Full vehicle WABCO valve Central locking |
|
