Model – YTQ5041XLCKH331
Dimensions – 5.995 × 2.26 × 3.255 meters
Vehicle Weight – 3.2 tons
Vehicle Type – Refrigerated truck
Model – YTQ5041XLCKH331
Dimensions – 5.995 × 2.26 × 3.255 meters
Vehicle Weight – 3.2 tons
Vehicle Type – Refrigerated truck

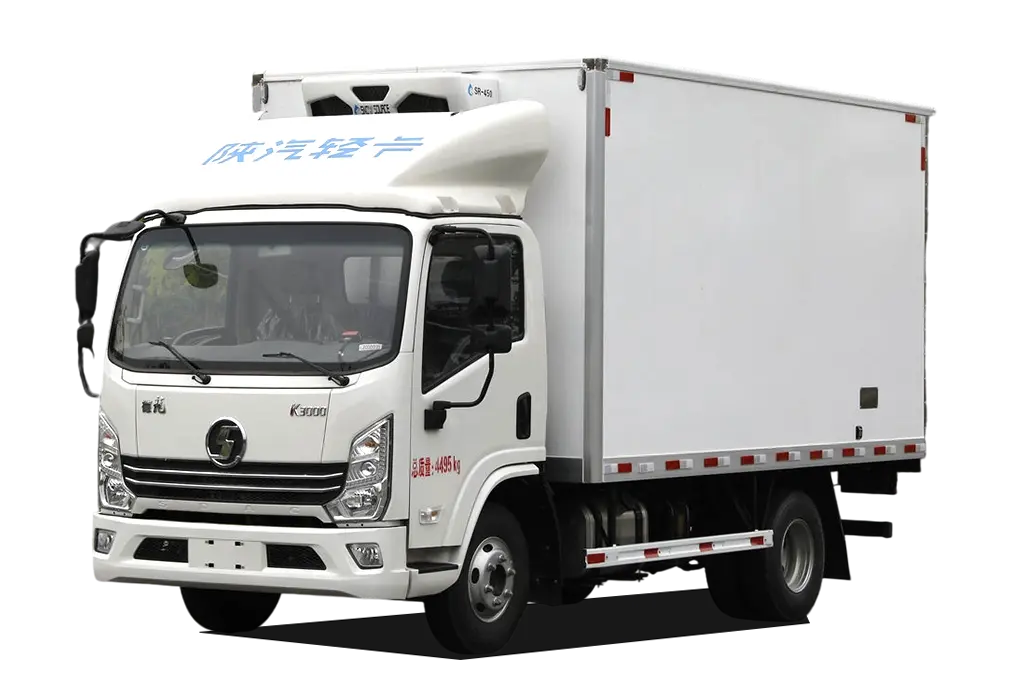

The Shacman K3000 Refrigerated Truck is a versatile medium-duty refrigerated transport vehicle designed for urban delivery, logistics, and light cold chain applications. It is equipped with a powerful engine and advanced refrigeration system to ensure efficient and reliable performance in various operating conditions.
Powertrain:
Engine: Weichai WP2.3N series turbocharged diesel engine delivering 150 HP power output
Transmission: 5/6-speed manual transmission system
Emission Standard: Euro VI compliant with advanced exhaust treatment systems
Performance: Maximum torque of up to 500 Nm for strong pulling power and reliable operation on steep gradients
Dimensions & Capacity:
Overall Size: 5995×2260×3155 mm
Drive Type: 4×2 configuration for optimal maneuverability in urban environments
Payload Capacity: 1.165-10 tons with a gross vehicle weight of up to 4495 kg
Cargo Box: 4080×2100×2000 mm capacity with heaped capacity up to 17.1 cubic meters
Fuel Tank: 80L capacity fuel tank for extended operation between refueling stops
Insulation Features:
High-quality polyurethane insulation foam with excellent thermal insulation
Fiberglass reinforced plastic (FRP) or stainless steel exterior with corrosion-resistant properties
Sealed door design with thermal strips to maintain consistent internal temperature
Anti-slip floor and internal lighting for safe loading/unloading operations
| SHACMAN K3000 REFRIGERATED TRUCK | |
| Vehicle Announcement: | YTQ5041XLCKH331 |
| Body Dimensions: | 5.995 × 2.26 × 3.255 meters |
| Drive Type: | 4X2 |
| Vehicle Type: | Refrigerated truck |
| Wheelbase: | 3300mm |
| Front Overhang / Rear Overhang: | 1.13/1.565 meters |
| Vehicle Weight: | 3.2 tons |
| Rated Load: | 1.1 tons |
| Top Speed: | 95 km/h |
| Front Track: | 1614mm |
| Rear Track: | 1551mm |
| Engine Model: | Weichai WP2.3NQ130E61 |
| Number of Cylinders: | 4 cylinders |
| Maximum Output Power: | 96 kW |
| Maximum Horsepower: | 130 horsepower |
| Displacement: | 2.29L |
| Rated RPM: | 3200 rpm |
| Engine Type: | Four valves, high-pressure common rail, turbocharged intercooled |
| Maximum Torque: | 380 N·m |
| Cargo Box Width: | 2.1 meters |
| Cargo Box Height: | 2.1 meters |
| Cargo Box Dimensions: | 4.08 × 2.1 × 2.1 meters |
