Model – SX33106C406
Horsepower – 375HP
Engine – WP12.375E50
Wheelbase – 1800+3975+1400mm
Model – SX33106C406
Horsepower – 375HP
Engine – WP12.375E50
Wheelbase – 1800+3975+1400mm

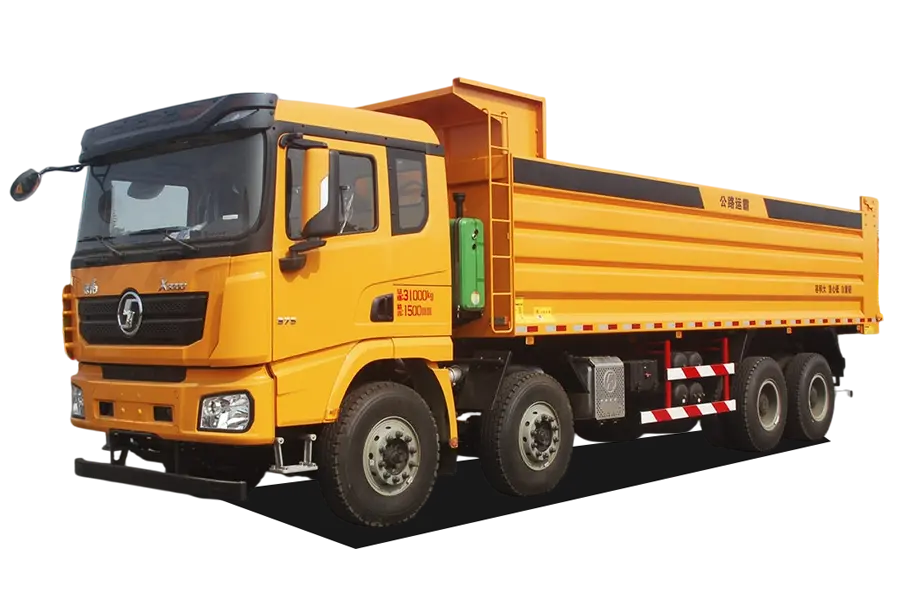

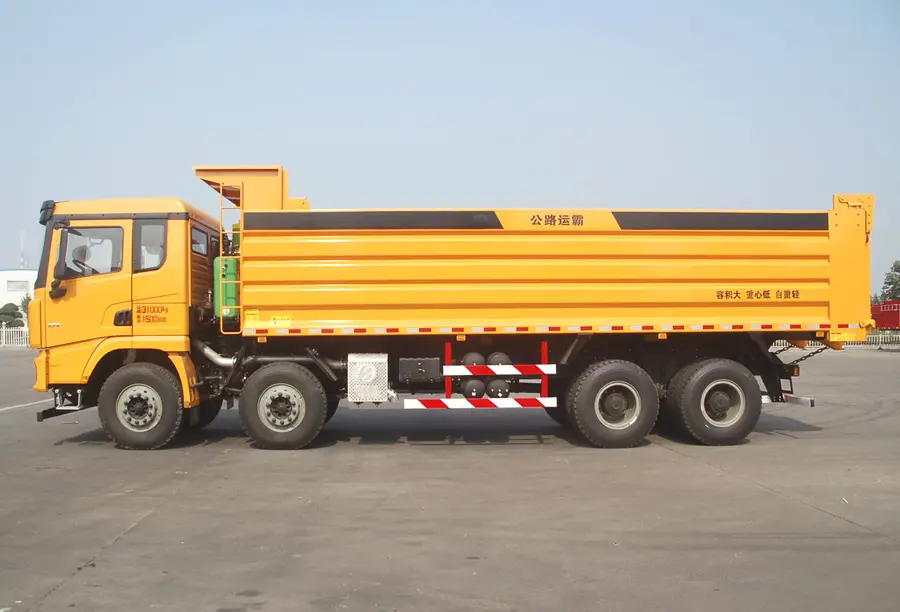

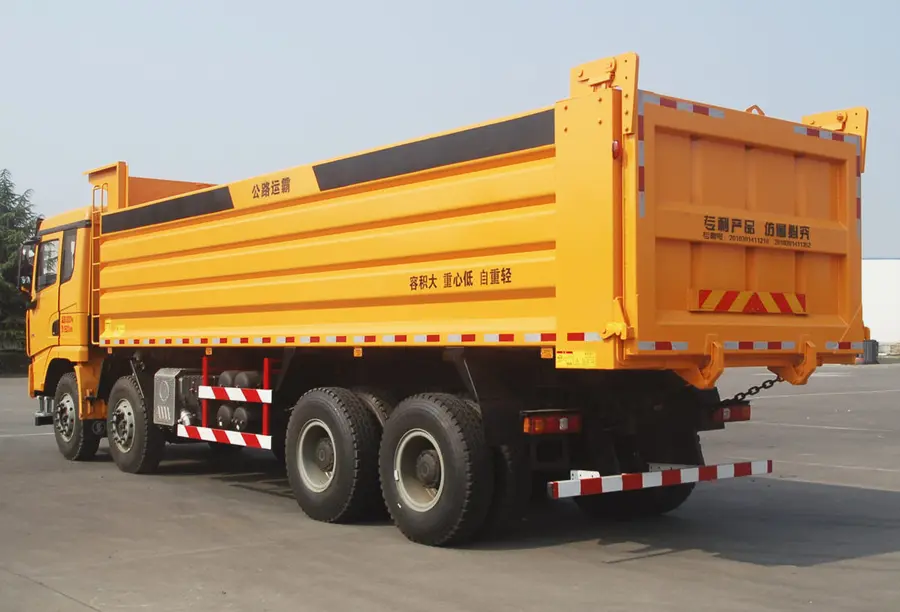

The Shacman X3000 375HP Tipper Truck is a premium heavy-duty dump truck specifically engineered for the demanding mining, quarrying, and construction industries in Ghana. As part of SHACMAN’s flagship X3000 series, this model combines reliable power, robust construction, and exceptional value, making it one of the most sought-after heavy tippers in the West African market. The 375HP configuration offers an ideal balance between performance and fuel economy, perfect for medium-to-heavy haulage operations across Ghana’s diverse terrains.
The 375HP Weichai WP10 engine delivers proven reliability tailored for African operating conditions:
9.726L displacement, 6-cylinder in-line, turbocharged intercooled diesel
Electronic fuel injection system optimizing combustion efficiency and reducing fuel consumption
1,800 N·m peak torque provides strong pulling power for fully loaded uphill hauls common in Ghana’s mining regions
Tropical-spec cooling package with reinforced radiator and viscous fan for sustained performance in hot climates
Premium double-sleeper cab with full sound and heat insulation
Air-suspension driver’s seat with multi-point adjustment and lumbar support
High-performance air conditioning engineered for West African tropical heat
Multifunction LCD instrument cluster displaying fuel level, engine status, and diagnostic alerts
Adjustable steering column and power-assisted steering reducing driver fatigue
High-tensile steel body (Q345B) with 8mm reinforced floor and 6mm side panels
Heavy-duty cross-member ribbing preventing deformation under impact loading
Front-mounted hydraulic tipping cylinder (HYVA or equivalent) ensuring stable and rapid dumping
Optional hydraulic rear tailgate for controlled unloading and dust suppression
Anti-corrosion epoxy primer and polyurethane topcoat to combat humidity and extend service life
| SHACMAN TIPPER TRUCK PRICE IN GHANA X3000 | |
| Model: | SX33106C406 |
| Drive Type: | 8X4 |
| Wheelbase: | 1800+3975+1400mm |
| Engine: | Weichai WP12.375E50 |
| Transmission: | Fast 12JSD180T |
| Rear Axle Ratio: | 5.262 |
| Vehicle Length: | 10.8 meters |
| Vehicle Width: | 2.55 meters |
| Vehicle Height: | 3.45 meters |
| Front Track: | 2011/2011 mm |
| Rear Track: | 1860/1860 mm |
| Curb Weight: | 15.5 tons |
| Rated Load: | 15.37 tons |
| Gross Weight: | 31 tons |
| Maximum Output Power: | 276 kW |
| Maximum Torque: | 1800 N·m |
| Maximum Torque RPM: | 1000-1400 rpm |
| Rated RPM: | 1900 rpm |
| Engine Type: | Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail SCR |
| Transmission Model: | Fast 12JSD180T |
| Transmission Brand: | Fast |
| Shifting Method: | Manual |
| Forward Gears: | 12-speed |
| Reverse Gears: | 2 units |
| Cargo Box Type: | Rear tipper |
| Unloading Method: | Rear tipper |
| Cab: | Medium-long flat roof |
| Fuel Tank Material: | Aluminum alloy |
| Fuel Tank Capacity: | 400 L |
| Chassis Dimensions: | 850×300(8 7) mm |
| Front Axle Description: | MAN 9.5T |
| Front Axle Load Capacity: | 6500/6500 kg |
| Rear Axle Description: | MAN 16T |
| Rear Axle Load Capacity: | 18000 (two-axle group) kg |
| Gear Ratio: | 5.262 |
| Number of Leaf Springs: | 2010/10/10 |
| Tire Specifications: | 12.00R20 |
| Number of Tires: | 12 units |
