Series – H3000
Max Speed(km/h) – 90
Engine – WP10.375E50
Dimension (mm) – 7950X2490X3270
Series – H3000
Max Speed(km/h) – 90
Engine – WP10.375E50
Dimension (mm) – 7950X2490X3270

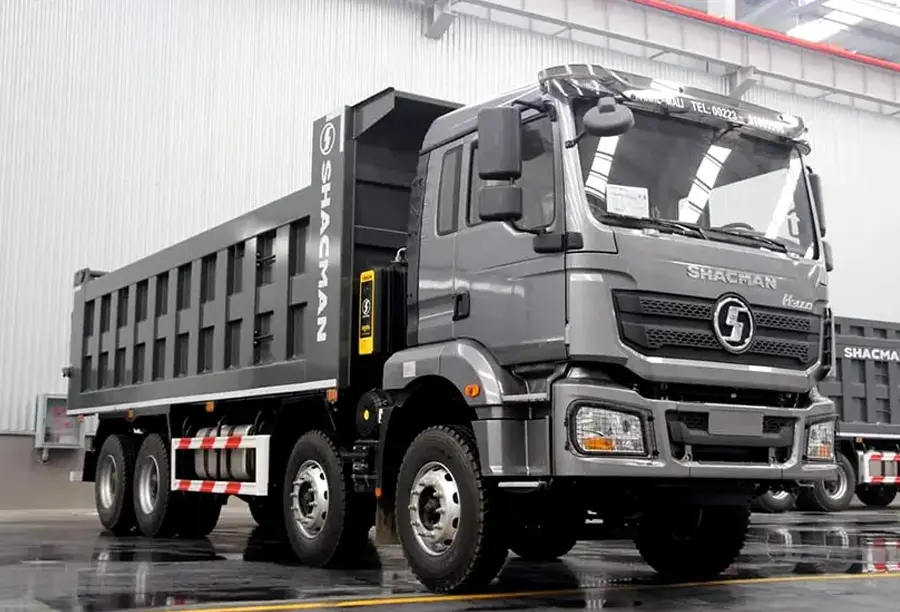

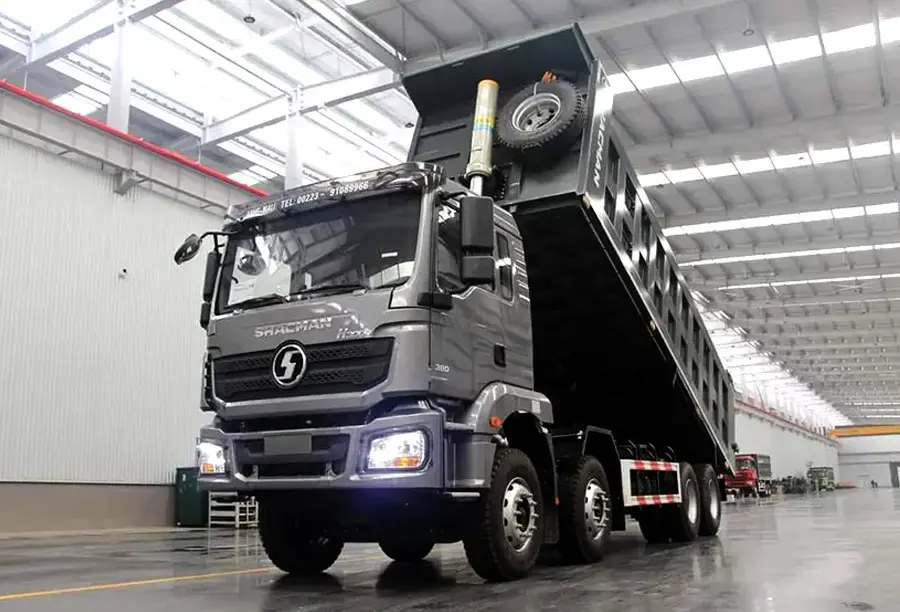

The Shacman H3000 8×4 Dump Truck is a powerful heavy-duty vehicle designed for construction, mining, and infrastructure projects, offering exceptional performance, durability, and reliability in demanding working conditions. Built on the proven H3000 platform, this 8×4 model combines robust engineering with practical features to meet the diverse needs of customers around the world.
Powertrain:
Engine: Weichai WP12.400E201 LNG engine delivering 400 HP (294 kW) power output or ISME385 30 EURO III engine with 385 HP (280 kW)
Transmission: FAST 10JSD180+QH50 manual transmission with 9 forward gears and 1 reverse gear
Emission Standard: Euro 2, Euro 3 compliant with options for higher emission standards in select markets
Performance: Maximum torque of up to 1,900 Nm for strong pulling power and reliable operation on steep gradients
Dimensions & Capacity:
Wheelbase: 3775+1400mm
Overall Size: 7550mm × 2490mm × 3450mm
Payload Capacity: 31-50 tons with a gross vehicle weight of up to 60 tons
Cargo Box: 5600mm × 2300mm × 1500mm capacity with floor thickness of 8mm and side thickness of 4mm, heaped capacity up to 38 cubic meters
| Shacman H3000 8×4 Tipper Truck | ||
| Transport type | Highway transport | |
| Logistics type | Ore / sand / gravel / coal | |
| Distance(km) | ≤200 | |
| Road type | Paved roads | |
| Drive | 8×4 | 8×4 |
| Max weight(t) | ≤70 | ≤70 |
| Max speed | 85 | 75 |
| Loaded speed(km) | 45~60 | 45~60 |
| Vehicle model | SX3315MR306 | SX3315MT326C |
| Engine | WP10.380E22 | ISM 385 |
| Emission standard | Euroǁ | Euroǁ |
| Displacement | 9.726L | 10.8L |
| Rated output | 247kw | 283kw |
| Max.torque | 1250N•m | 1835N•m |
| Transmission | 10JSD180+QH50 | 12JSD180T+QH50 |
| Clutch | 430 | 430 |
| Frame | 850×300(8+7) | 850×300(8+7) |
| Front axle | MAN 9.5T | MAN 9.5T |
| Rear axle | 16T MAN double reducion 5.262 | 16 MAN dote dudion 5.262 |
| Tire | 12.00R20 | 12.00R20 |
| Front Suspension | Multi leaf springs | Multi leaf springs |
| Rear Suspension | Multi leaf springs | Multi leaf springs |
| Fuel | Diesel | Diesel |
| Capacity of the fuel tank | 400L ( Aluminum shell ) | 400L ( Aluminum shell ) |
| Battery | 165Ah | 180Ah |
| Dimensions(L×W×H) | 8500x2490x3210 | 8700x2490x3210 |
| Wheelbase | 1800+2975+1400 | 1800+3175+1400 |
| Truck(L×W×H) | 6500x2300x1500 | 6800x2300x1500 |
| Approach/Departure angle(°) | 28/55 | 28/55 |
| Max.gradeability(%) | 25 | 25 |
