Model – SX4250XC32
Type of vehicle – Tractor Truck
Series – X3000
Power – 500hp
Engine – Weichai WP13.500E501
Maximum Speed(km/h) – 105
Overall dimension (mm) – 6850X2490X3650
Model – SX4250XC32
Type of vehicle – Tractor Truck
Series – X3000
Power – 500hp
Engine – Weichai WP13.500E501
Maximum Speed(km/h) – 105
Overall dimension (mm) – 6850X2490X3650

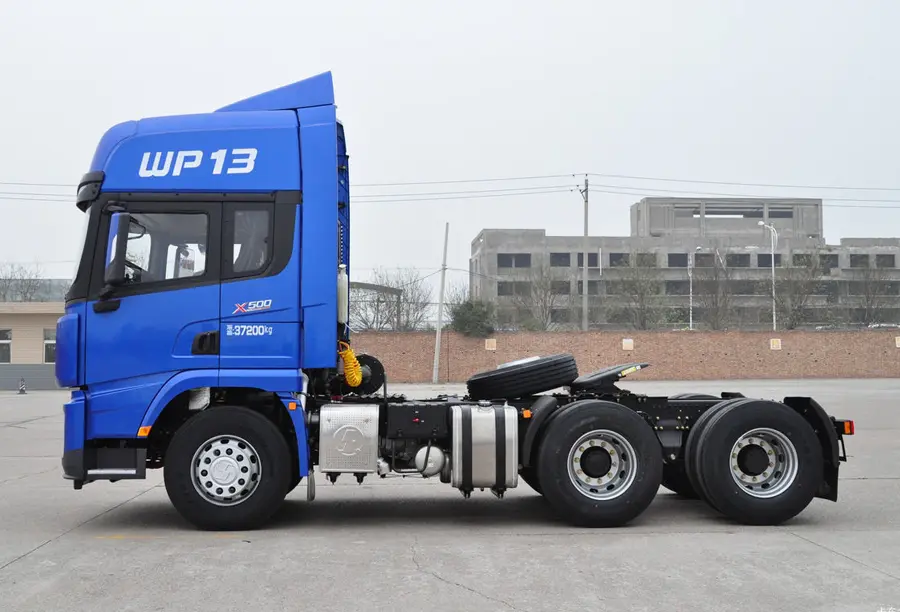

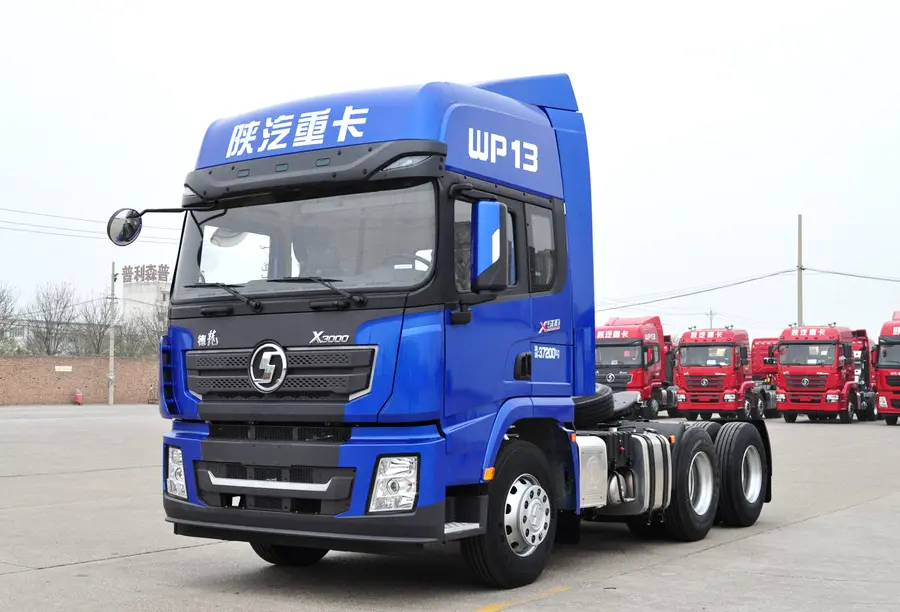

The Shacman X3000 500hp 6×2 Tractor Truck is a high-performance heavy-duty vehicle designed for long-haul logistics and demanding transport tasks. Equipped with a robust 500-horsepower diesel engine, it delivers exceptional power and torque, ensuring smooth acceleration even under heavy loads. The 6×2 wheel configuration optimizes fuel efficiency and maneuverability, making it ideal for highway and regional routes.
Key features include a spacious high-roof cabin with air suspension seats, electric cab lift, and advanced climate control, enhancing driver comfort during extended journeys. The automatic transmission system simplifies operation, while the durable chassis and tubeless tires provide reliability and low maintenance costs.
Compliance with Euro 5 emission standards highlights its environmental responsibility, reducing harmful emissions without compromising performance. Whether for container hauling or bulk cargo transport, the Shacman X3000 combines power, efficiency, and operator comfort to meet modern logistics challenges.
The Shacman X3000 500hp 6×2 Tractor Truck, new cabin features a European design, a dichroic rearview mirror, opening windows on the side of the cabin, monolithic trapezoidal headlights, as well as increased lateral damping of the cabin and a new four-point air suspension system.
Shacman X3000 500hp 6×2 Tractor Truck, Luxurious interior trim, an integrated control platform, 5-inch multifunction instruments, an ergonomic seat with pneumatic controls and a non-slip surface. Central door control module, reliable power windows, power rearview mirrors, heated rearview mirrors, and central locking.
| Category | Details |
|---|---|
| Truck Name | Shacman X3000 500hp 6×2 Tractor Truck |
| Engine | – Model: WEICHAI WP13.500E62 (Euro 6 compliant) – Power: 500 hp @ 1900 rpm – Torque: ~2300 Nm @ 1000-1400 rpm – Displacement: 12.54 L |
| Transmission | – Type: FAST 12JSD200TA manual transmission – Gears: 12 forward + 2 reverse – Clutch: 430mm dry single-plate with hydraulic booster |
| Drive Configuration | 6×2 (6 wheels, 2 driven; rear axle with liftable tag axle) |
| Axles | – Front Axle: MAN 5.5T (I-beam) – Rear Axle: MAN 13T single reduction (ratio: 3.70) – Tag Axle: Liftable 9T (for weight optimization) |
| Chassis | – Frame: 280×8+6 mm (high-strength steel) – Wheelbase: 3600/3900 mm (configurable) |
| Tires | 12R22.5 tubeless radial tires (6 pcs + 1 spare) |
| Fuel System | – Type: Diesel – Tank Capacity: 500L aluminum alloy (single tank) |
| Cabin | – High-roof sleeper cab (left-hand drive) – Features: Air suspension seat, manual A/C, electric windows, heated mirrors |
| Weight | – Curb Weight: ~7,500 kg – Gross Combination Weight (GCW): Up to 40,000 kg |
| Braking | – Service Brake: Dual-circuit air brake with ABS – Parking Brake: Spring brake on rear axle |
| Suspension | – Front: Parabolic leaf spring (2 leaves) – Rear: Leaf spring with shock absorbers |
| Steering | Power-assisted hydraulic steering |
| Dimensions (L×W×H) | ~6800×2490×3100 mm (varies by wheelbase) |
| Additional Equipment | – 150Ah battery, 24V electrical system – LED headlamps, central locking |
