Model – SX4250XC42
Type of vehicle – Tractor Truck
Series – X3000
Power – 550hp
Engine – Weichai WP13.550E501
Maximum Speed(km/h) – 109
Overall dimension (mm) – 6850X2490X3650
Model – SX4250XC42
Type of vehicle – Tractor Truck
Series – X3000
Power – 550hp
Engine – Weichai WP13.550E501
Maximum Speed(km/h) – 109
Overall dimension (mm) – 6850X2490X3650

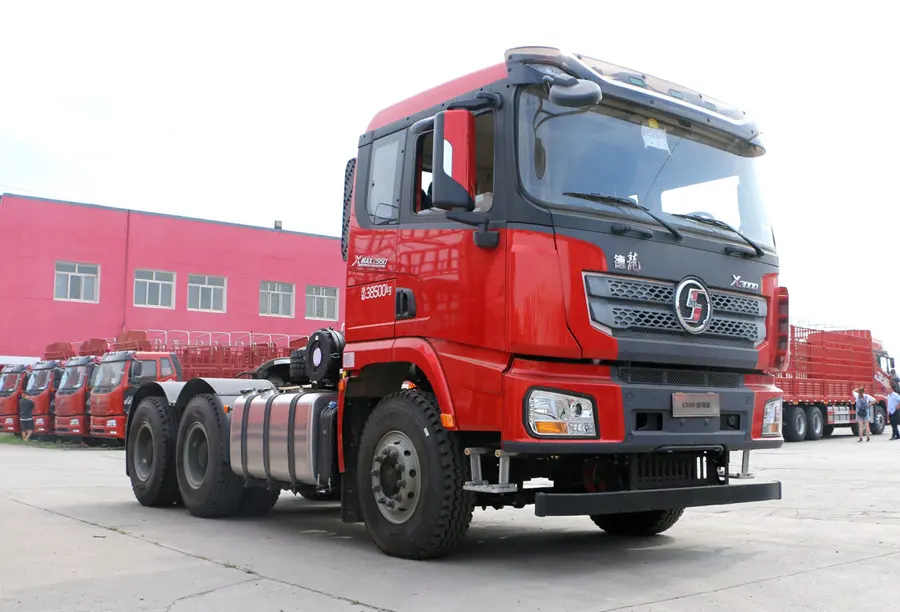

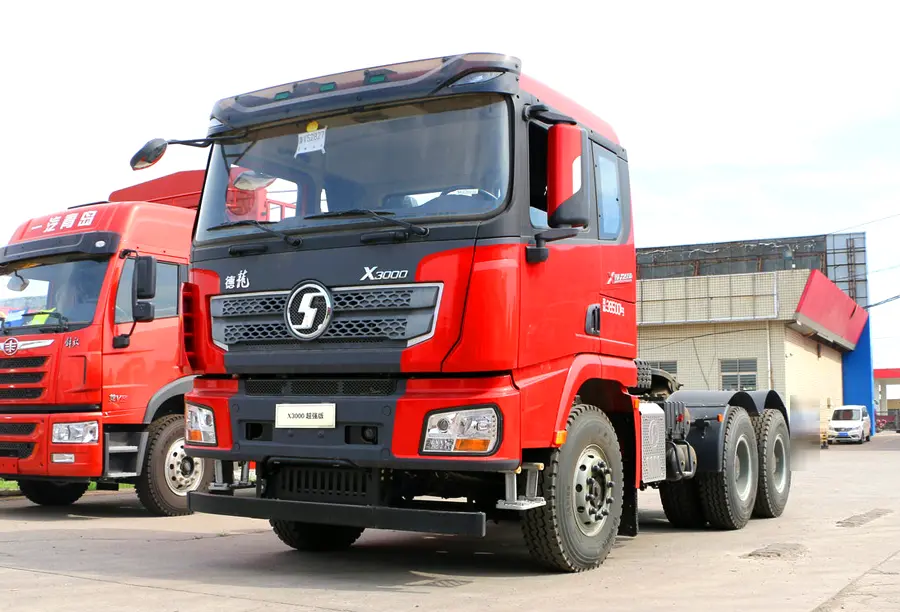

The Shacman X3000 550hp 6×4 Tractor Head stands as a robust workhorse engineered for demanding long-haul and heavy-load transportation. Designed with reliability and performance in mind, this model combines a high-output powertrain with durable components to excel in diverse operational conditions.
Engine: Likely equipped with a WEICHAI WP13 series diesel engine (550 horsepower), renowned for its torque delivery and fuel efficiency, compliant with Euro 5/6 emission standards.
Transmission: Paired with a FAST 12-speed manual transmission (e.g., 12JSD240TA), ensuring smooth gear shifts and optimal power distribution for heavy loads.
Drive Configuration: 6×4 (6 wheels, 4 driven) with MAN-series axles (front: 5.5T, rear: 16T double reduction), providing exceptional traction and load-bearing capacity (typical Gross Combination Weight up to 49 tons).
Comfort & Safety: Features a spacious sleeper cab with air conditioning, power steering, and air suspension seats for driver comfort during extended trips. Safety is enhanced by ABS braking system and robust frame construction.
1. Long-Haul Logistics & Intercity Transportation
Focus: Moving bulk goods (e.g., consumer products, industrial materials) across highways and long distances.
2. Mining & Resource Transportation
Focus: Hauling ores, coal, and construction aggregates from mines or quarries to processing plants.
3.Construction & Heavy-Duty Cargo
Focus: Transporting construction machinery (e.g., excavators, bulldozers), steel beams, and prefabricated structures to job sites.
4.Energy & Industrial Supply Chains
Focus: Supporting oil, gas, and power sectors by transporting equipment, pipelines, or bulk fuels.
| Category | Details |
|---|---|
| Truck Name | Shacman X3000 550hp 6×4 Tractor Head |
| Engine | – Model: WEICHAI WP13.550E62 (Euro 6 compliant) – Power: 550 hp @ 1900 rpm – Torque: 2550 Nm @ 1000-1400 rpm – Displacement: 12.54 L |
| Transmission | – Type: FAST 12JSD240TA manual transmission – Gears: 12 forward + 2 reverse – Clutch: 430mm dry single-plate with hydraulic booster |
| Drive Configuration | 6×4 (6 wheels, 4 driven) |
| Axles | – Front Axle: MAN 7.5T (I-beam) – Rear Axle: MAN 16T double reduction (ratio: 3.364) |
| Chassis | – Frame: 300×8+6 mm (high-strength steel) – Wheelbase: 3800/4200/4575 mm (configurable) |
| Tires | 12R22.5 tubeless radial tires (6 pcs + 1 spare) |

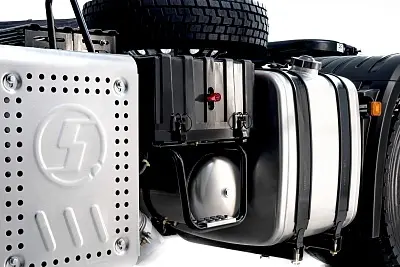

| Fuel System | – Type: Diesel – Tank Capacity: 600L aluminum alloy (dual tanks optional) |
| Cabin | – High-roof sleeper cab (left-hand drive) – Features: Air suspension seat, automatic A/C, electric windows, heated mirrors, refrigerator |
| Weight | – Curb Weight: ~8,800 kg – Gross Combination Weight (GCW): Up to 49,000 kg |
| Braking | – Service Brake: Dual-circuit air brake with ABS/EBS – Parking Brake: Spring brake on rear axle |
| Suspension | – Front: Parabolic leaf spring (2/3 leaves) – Rear: Multi-leaf spring with shock absorbers |
| Steering | ZF 8098 power steering (hydraulic, integral) |
| Dimensions (L×W×H) | ~7000×2490×3155 mm (varies by wheelbase) |
| Additional Equipment | – 180Ah battery, 24V electrical system – LED headlamps, rear fog lights – Central locking with remote control |
