Type of vehicle – Shacman CargoTruck
Power – 385 HP
Engine – Cummins / Weichai
Overall dimension (mm) – 1800+3575+1400
Type of vehicle – Shacman CargoTruck
Power – 385 HP
Engine – Cummins / Weichai
Overall dimension (mm) – 1800+3575+1400

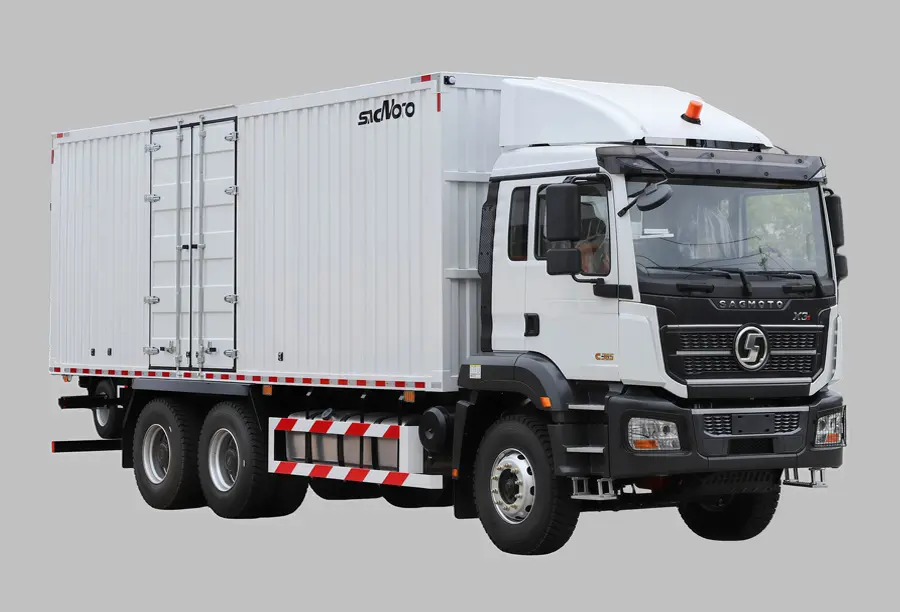

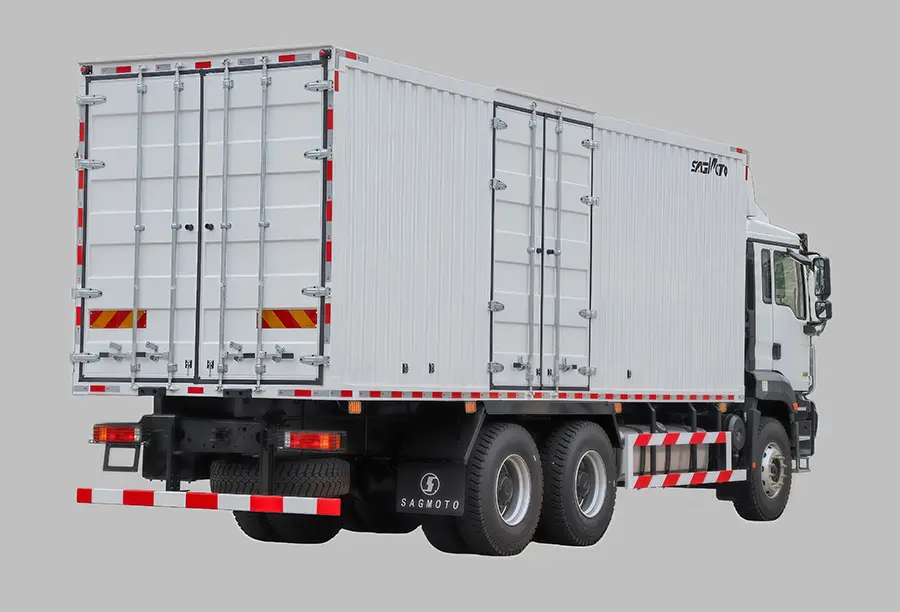

The SHACMAN X3S Cargo Truck is engineered to redefine efficiency in intercity freight, bulk cargo delivery, and urban logistics, combining robust performance with flexible load configurations. As part of SHACMAN’s next-generation X3S series,payload capacity, and driver comfort—ideal for fleet operators and commercial transport businesses worldwide.
Key Features for Efficient Cargo Transport
Flexible Load Configurations: Available with customizable cargo bodies (van, stake bed, refrigerated) to suit diverse goods—from perishables to construction materials. The 6×4 model supports curtain-side designs for quick loading/unloading in urban hubs.
Euro 6 Compliance: Meets strict emission standards for markets like the EU, Australia, and Southeast Asia, ensuring access to high-regulation regions and reducing environmental impact.
Durable Chassis: High-strength steel frame (6mm thick rails) and reinforced suspension handle rough road conditions, while the corrosion-resistant cargo body extends service life in humid or coastal areas.
Driver-Centric Design: Spacious day cab with ergonomic seating, air conditioning, and a 7-inch touchscreen dashboard—reducing fatigue during long-haul trips or multi-stop urban routes.
Global Adaptability: Left/right-hand drive options, multi-language dashboards, and compatibility with local fuel standards (diesel, CNG optional) make it suitable for Africa, the Middle East, and Latin America.
Urban Logistics: The 6×4 light-duty model excels in narrow city streets, delivering retail goods, parcels, and small-scale cargo with excellent maneuverability (turning radius ≤7.5m).
Intercity Freight: The 6×4 heavy-duty variant transports bulk cargo (grain, textiles, machinery) between warehouses, ports, and industrial zones, with a maximum cruising speed of 90 km/h.
Specialized Transport: Optional refrigerated bodies (temperature range: -20°C to +15°C) for food/pharmaceutical transport, or flatbed designs for oversized equipment like generators or construction tools.
| SHACMAN X3S CARGO TRUCK | ||
| Drive type | 6X4 | |
| Vehicle Weight | GVW:8.5 tons | |
| GCW:40 tons | ||
| Frame | 850×300(8+5) mm | |
| Vehicle Dimensions | 9650~11500×2550×3270mm | |
| Wheelbase | 7500~9300 mm | |
| Cargo box length | 4375~5775+1400mm | |
| Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L – 12L | ||
| Power: 300 PS –550 PS | ||
| Torque: 1200 Nm – 2200 Nm | ||
| Cummins | Emissions: Euro II to Euro V | |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 550 PS | ||
| Torque: 1400 Nm – 2100 Nm | ||
| Transmission | FAST 12 or 16 speed manual | |
| Clutch | φ430 | |
| Steering gear | ZF8098 | |
| Axle | Front axle: MAN 7.5 — 9 ton | |
| Rear axle: MAN 13 — 16 ton single or double reduction | ||
| Gear ratio: 3.7 – 4.769 | ||
| Suspension | Multi or few leaf spring front and rear setup | |
| Tires | 315 / 80R22.5 | |
| Fuel tank | 400 – 1000 liter aluminum or steel tank | |
| Cab | Lengthened high roof | |
| Lengthened flat roof | ||
| Standard | ||
| Configuration | Hydraulic driver seat, four point hydraulic suspended cab, common rear-view mirror, electronically controlled automatic constant temperature air conditioner, manual window lifter, manual turnover, common air filter, metal bumper, hinged upper pedal, 165ah maintenance free battery, spare tire rack, SHACMAN logo | |
