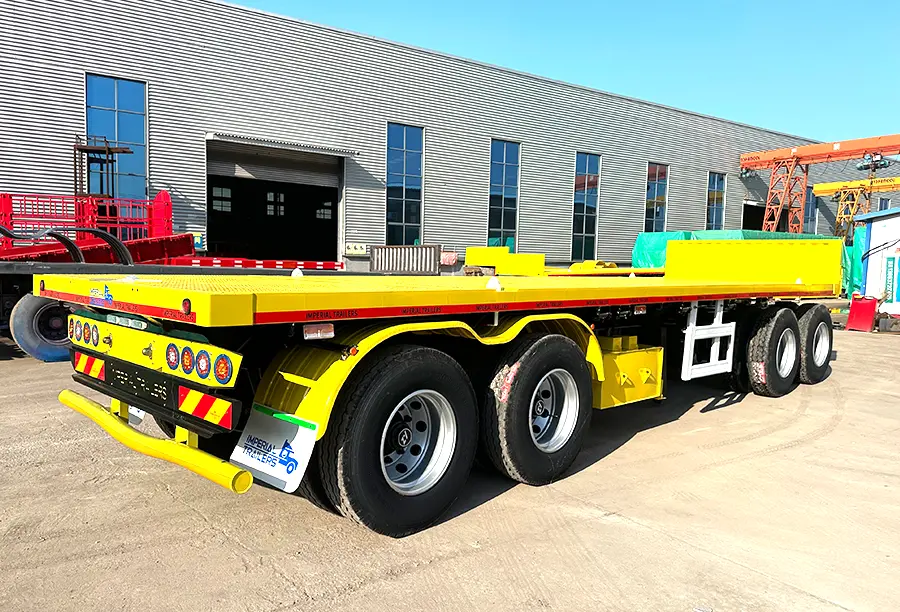

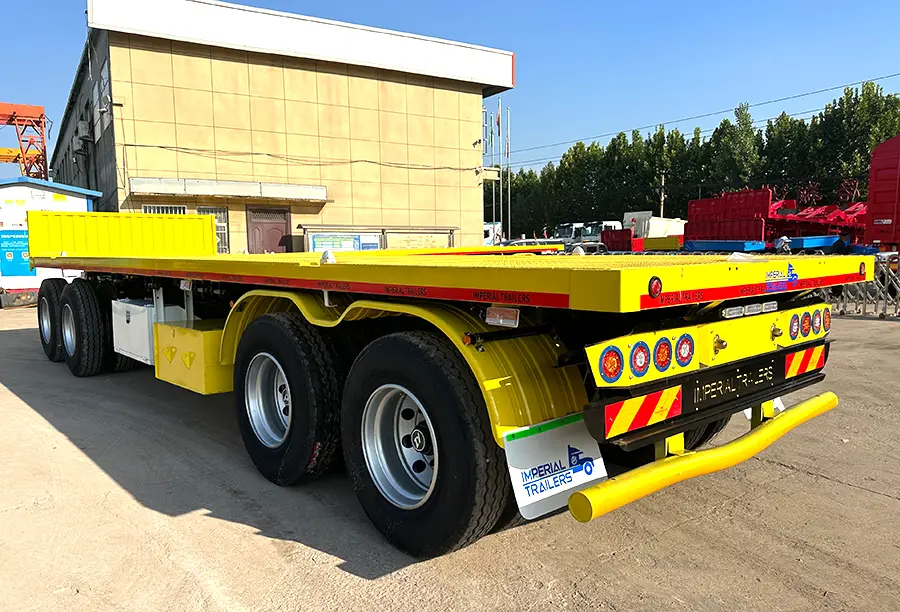

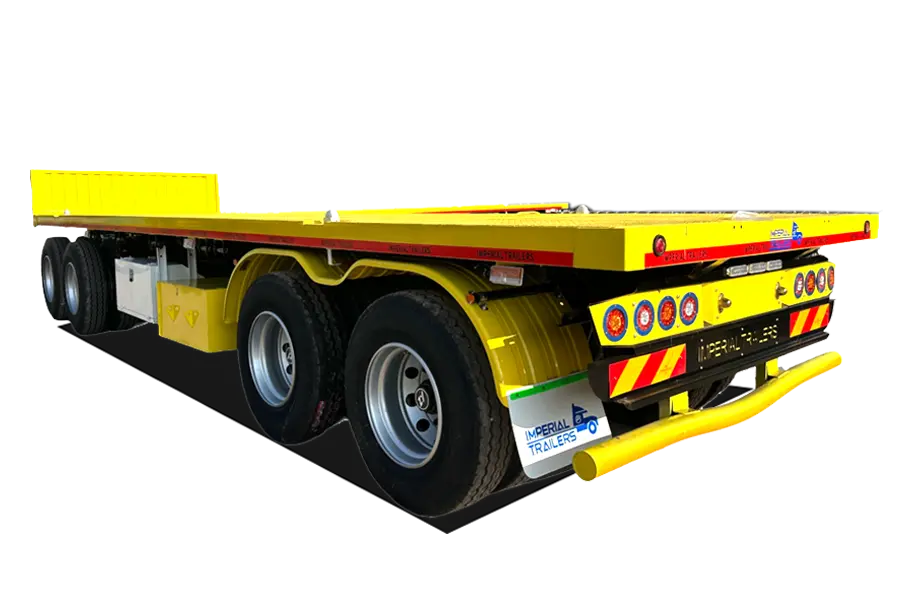

Shacman 4 Axles Flatbed Drawbar Trailer

The Shacman 4 Axles Flatbed Drawbar Trailer is a heavy-duty commercial trailer designed to meet the demanding requirements of long-haul logistics, construction, and specialized cargo transport operations. Built for seamless integration with Shacman tractor trucks such as the F3000, X3000, and X5000 series, this flatbed drawbar trailer offers exceptional load capacity, durable construction, and versatile configurations to transport oversized cargo, machinery, containers, and bulk materials across diverse operating environments.

Load Capacity: Designed to handle heavy payloads typically ranging from 50-100 tons, with specific models capable of accommodating up to 120 tons for extreme heavy-duty applications. The 4-axle configuration ensures optimal weight distribution and stability during transport.

Standard Configuration: Typically available in lengths of 12, 13.75, or 16 meters, with a width of 2.5 meters and height of 1.55 meters

Container Compatibility: Compatible with 20ft, 40ft, 45ft, and 53ft shipping containers, with integrated twist locks for secure container transport

Customization: Available in extendable configurations for transporting oversized cargo such as wind turbine blades, construction beams, or heavy machinery

Main Beam: Constructed from high-strength Q345B steel I-beams, with automatic submerged arc welding for superior durability. The main beam typically features a height of 500mm, with upper plate thickness of 14mm, lower plate thickness of 16mm, and middle web thickness of 8mm

Cross Beams: Made from Q235B steel, providing additional structural support and load distribution across the trailer bed

Surface Treatment: Sandblasted with two coats of anticorrosive primer for enhanced rust resistance and extended service life

Axles: Equipped with 4 heavy-duty axles from trusted brands such as FUWA or BPW, with optional load ratings to suit specific applications. The axles are designed with advanced braking systems including dual air chambers and ABS for enhanced safety

Suspension: Available with multiple suspension options:

Rigid Leaf Spring Suspension: Standard configuration featuring 10-piece leaf springs for reliable performance in rugged conditions

Air Suspension: Optional configuration for improved ride quality, reduced cargo damage, and adjustable height for easier loading and unloading

Bogie Suspension: Available for extreme heavy-duty applications requiring additional load capacity and stability
