Model – SX5315GJBJT306
Horsepower – 330HP- 500HP
Engine – WP10.336E53
Dimensions (L×W×H) – 10655x2500x3540mm
Model – SX5315GJBJT306
Horsepower – 330HP- 500HP
Engine – WP10.336E53
Dimensions (L×W×H) – 10655x2500x3540mm

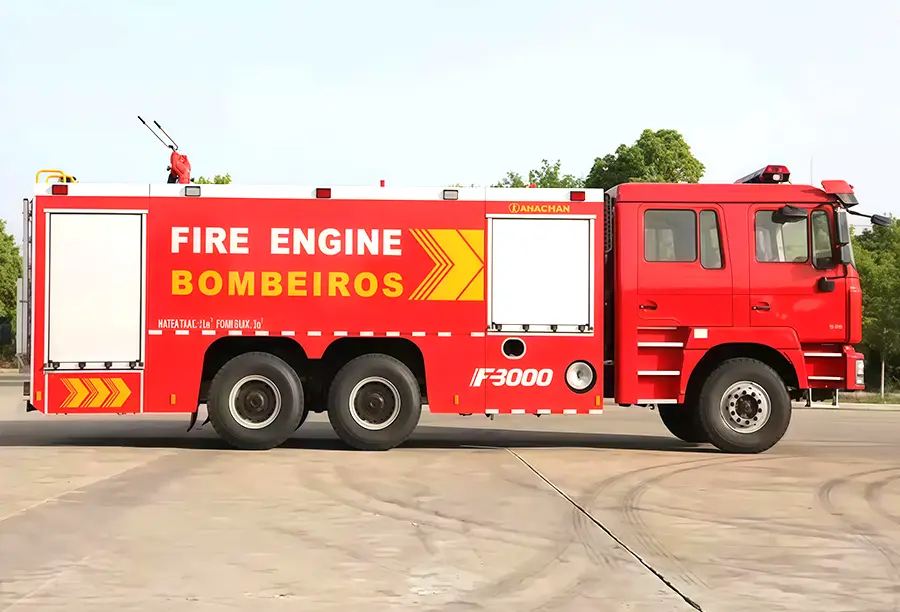

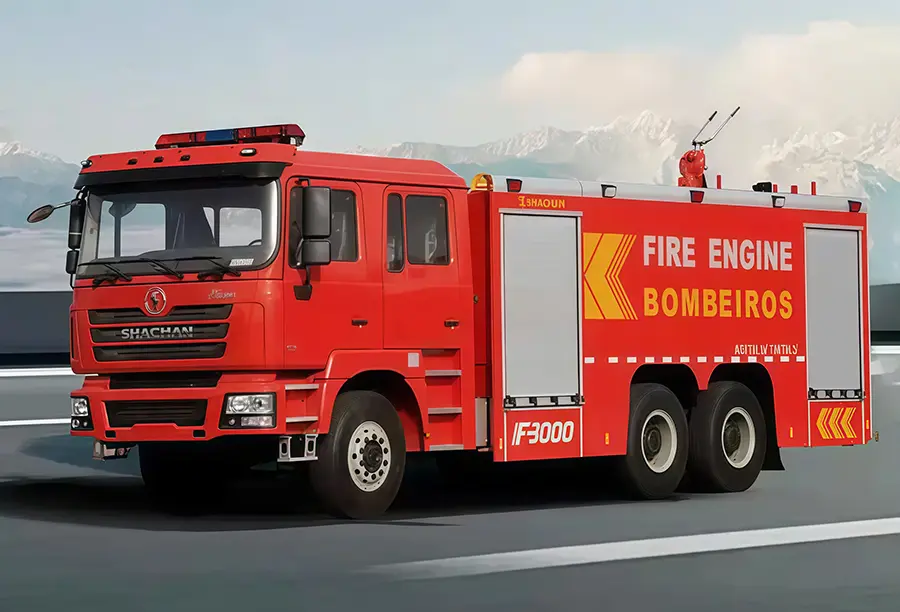

The Shacman F3000 6×4 Fire Truck is a robust emergency response vehicle engineered for large-scale fire suppression and rescue operations. Built on Shacman’s proven F3000 heavy-duty chassis, it combines a high-capacity water/foam tank, powerful pumping system, and durable drivetrain to excel in urban, industrial, and rural emergency scenarios. Targeting fire departments and industrial facilities in emerging markets, it delivers reliable performance with a 10,000–15,000L tank capacity and rapid deployment capabilities, making it a critical asset for fire control and disaster relief.
High-Capacity Fluid Storage:
The truck’s 10,000–15,000L tank supports extended operation without refueling, critical for remote areas or large-scale fires. Optional dual compartments allow simultaneous storage of water and foam concentrate, with a mixing system for instant foam production (ideal for oil or chemical fires).
Powerful Pumping Performance:
Equipped with a 4000 L/min centrifugal pump, it delivers high-pressure water flow for long-distance hoses (up to 100m horizontal range) or elevated nozzles. The pump is driven by the engine via PTO, ensuring consistent power even under heavy load.
Heavy-Duty Chassis & Maneuverability:
The 6×4 drivetrain (front axle: 9.5T, rear axles: 16T×2) and reinforced steel frame handle rough terrain, while the 10-speed transmission provides optimal torque for steep gradients. A tight turning radius (~9.5m) enables navigation through urban streets and industrial sites.
|
SHACMAN F3000 6X4 FIRE TRUCK
|
|
|
Chassis
|
|
|
Product Name
|
SHACMAN 6X4 Heavy duty water and foam aerial ladder fire truck price
|
|
Dimensions
|
10655x2500x3540mm
|
|
Chassis Model
|
SHACMAN
|
|
Wheel Base(mm)
|
4575+1400mm
|
|
Engine
|
SHACMAN / WP10.336E53, 9726ml/336HP Power
|
|
Tyre
|
10pcs plus 1 spare wheel, 12.00R20
|
|
Cabin
|
Four-door with double-row cab of 2+3 persons( includes driver) with power jack, tempered windshields.
|
|
Tanker
|
|
|
Capacity of water tanker
|
16000Liters
|
|
Material
|
High quality carbon steel Q235
|
|

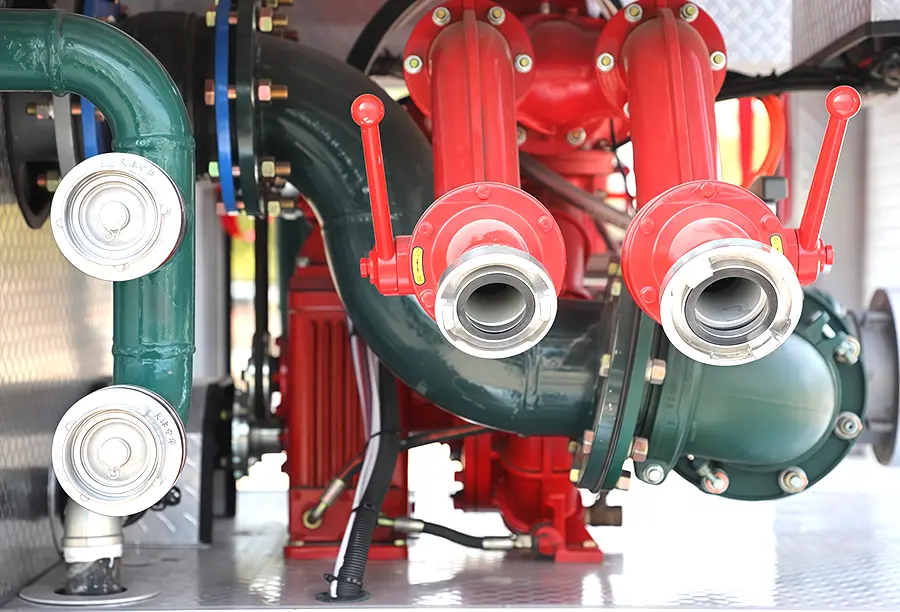

Fire pump
|
|
|
Model
|
CB 10/60
|
|
Rated of flow
|
60L /S
|
|
Pressure
|
1.0 Mpa
|
|
Water Pump
|
|
|
Model
|
CB10/30-XZ low pressure vehicle fire pump
|
|
Form
|
Centrifugal pressure
|
|
Rate of flow
|
30 L/s
|
|
Range
|
≥60m
|
|
Pressure
|
1.0Mpa
|
|
Water diversion device
|
Self-contained slide pump
|
|
Maximum suction depth
|
7m
|
