Model – SX33105C426B
Power – 336/340/ 375/ 380/385
Engine – Weichai WP12.430E50
Gearbox – Fast 12JSD200T-B
Wheelbase – 1800+4175+1400mm
Model – SX33105C426B
Power – 336/340/ 375/ 380/385
Engine – Weichai WP12.430E50
Gearbox – Fast 12JSD200T-B
Wheelbase – 1800+4175+1400mm

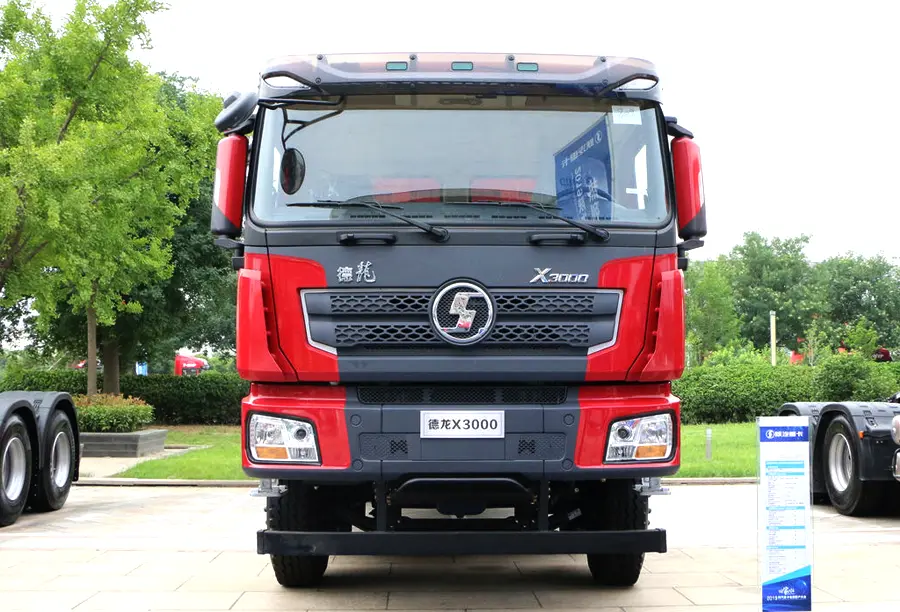

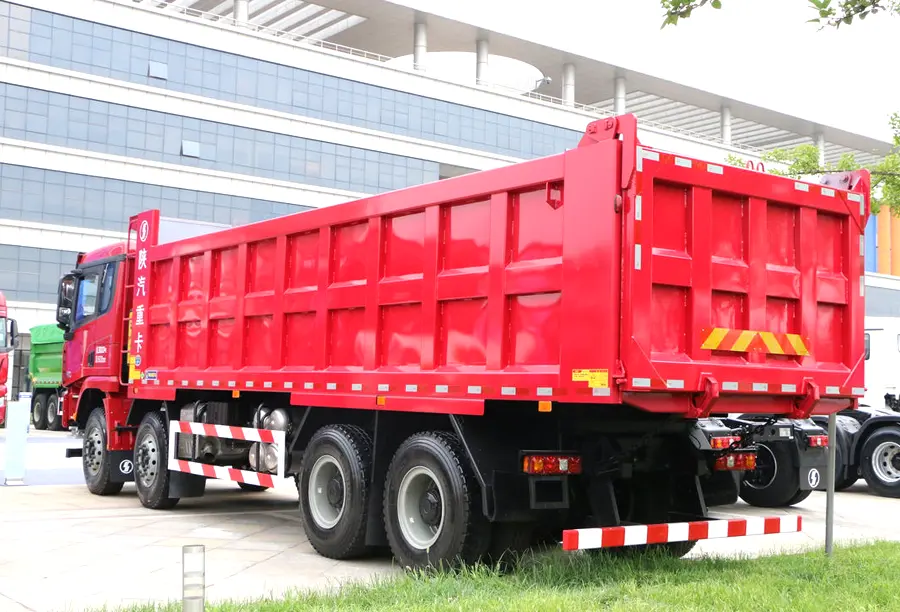

The Shacman X3000 8×4 Dump Truck is a premium heavy-duty vehicle designed to meet the most demanding requirements of mining, construction, and large-scale infrastructure projects. Building on Shacman’s decades of manufacturing expertise, this advanced dump truck combines exceptional power, durability, and innovative technology to deliver reliable performance in the toughest working conditions.
Powertrain:
Engine: Weichai WP12.430E20 turbocharged diesel engine delivering 430 HP (316 kW) power output
Transmission: FAST 12-speed manual transmission with optimized gear ratios for heavy-load operation
Emission Standard: Euro 2 or Euro 3 compliant, with options for higher emission standards in select markets
Performance: Maximum torque of 2,100 Nm for strong pulling power and smooth operation on steep gradients
Dimensions & Capacity:
Overall Size: 11150mm × 2600mm × 3600mm (typical configuration)
Payload Capacity: 41-50 tons with a gross vehicle weight of 60 tons
Cargo Box: 7300mm × 2300mm × 1600mm capacity with heaped capacity up to 40 cubic meters
Axle Configuration: 8×4 drive with heavy-duty axles (9+9+16+16 tons load capacity)
Fuel & Efficiency:
Fuel Tank: Large-capacity fuel tank for extended operation between refueling stops
Fuel Efficiency: Advanced engine management system optimizing fuel consumption without sacrificing performance
| SHACMAN MOTORS X3000 DUMP TRUCK | |
| Model: | SX33105C426B |
| Drive type: | 8X4 |
| Wheelbase: | 1800+4175+1400mm |
| Engine: | Weichai WP12.430E50 |
| Gearbox: | Fast 12JSD200T-B |
| Rear axle ratio: | 5.262 |
| Body length: | 10.95 metres |
| Body width: | 2.55 metres |
| Body height: | 3.45 metres |
| Front track: | 2011/2011 mm |
| Rear track: | 1860/1860 mm |
| Gross vehicle weight: | 15.5 tonnes |
| Rated load capacity: | 16.1 tonnes |
| Gross vehicle weight: | 31 tonnes |
| Energy type: | Diesel |
| Engine model: | Weichai WP12.430E50 |
| Number of cylinders: | 6-cylinder |
| Displacement: | 11.596 L |
| Maximum Horsepower: | 430 horsepower |
| Maximum Power Output: | 316 kW |
| Maximum Torque: | 2060 N·m |
| Maximum Torque RPM: | 1000–1400 rpm |
| Rated RPM: | 1900 rpm |
| Engine Type: | In-line six-cylinder, electronically controlled high-pressure common rail + SCR |
| Gearbox Model: | Fast 12JSD200T-B |
| Front Axle Payload Capacity: | 6500/6500 kg |
| Rear Axle Description: | 16T MAN two-stage cast axle |
| Rear Axle Payload Capacity: | 18,000 (second axle group) kg |
| Gear Ratio: | 5.262 |
| Number of Leaf Springs: | Left 14, Right 13 / Left 14, Right 13 / 12, 10 / 10 / 10, 14 / 14 / 12, 14 / 13 / 12 |
| Tyre Size: | 11.00-20 18PR, 12.00-20 18PR, 11.00R20 18PR, 12.00R20 18PR, 12R22.5 18PR |
| Number of Tyres: | 12 |
