Model – SX5200XXYXA
Vehicle width: – 2.55 meters
Engine – WP7.270E51
Wheelbase: – 6975+1400mm
Model – SX5200XXYXA
Vehicle width: – 2.55 meters
Engine – WP7.270E51
Wheelbase: – 6975+1400mm

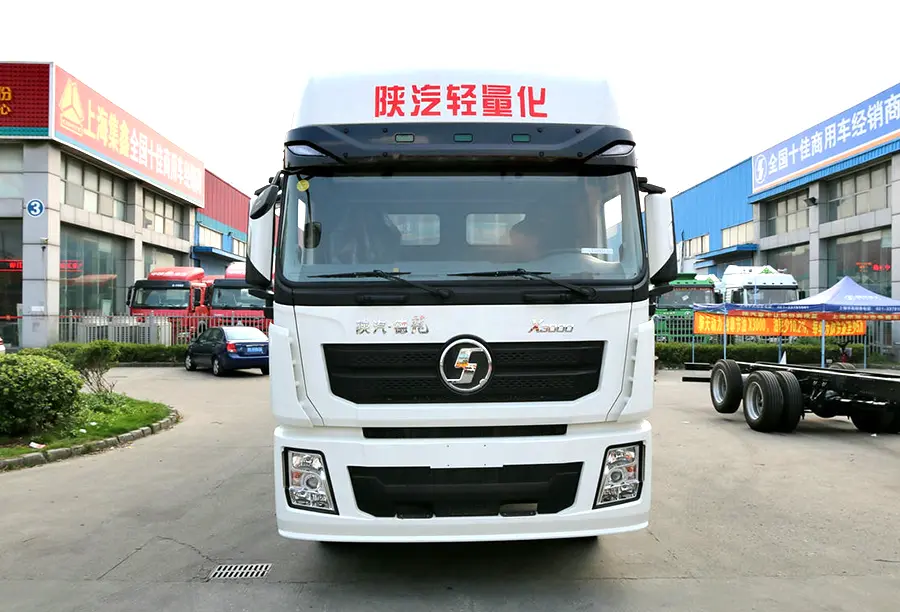

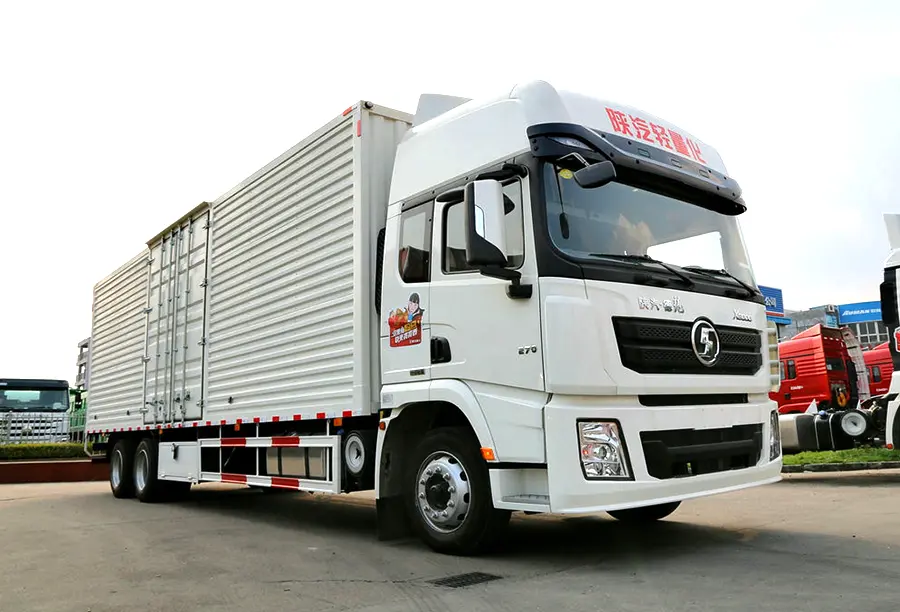

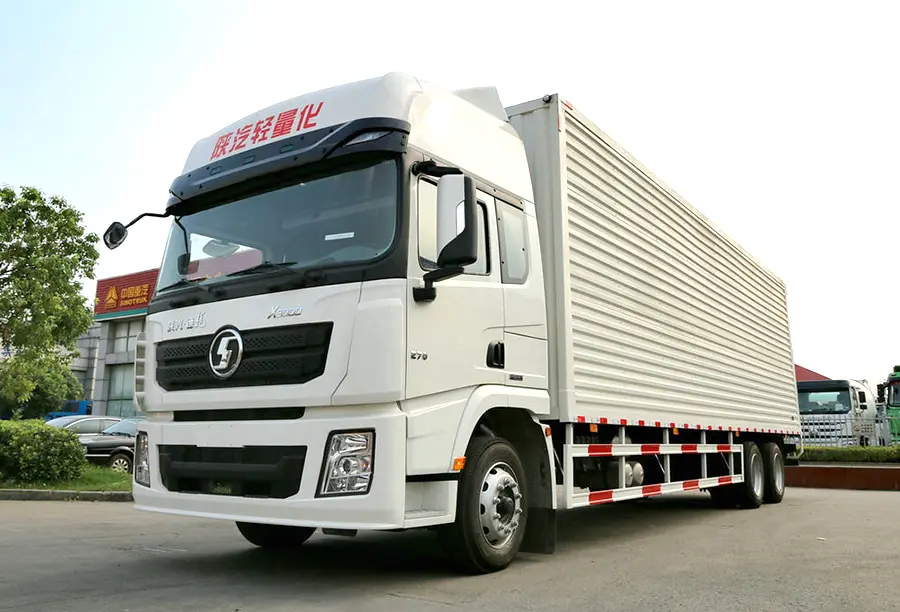

The SHACMAN X3000 6X2 Box Truck is a medium-to-heavy-duty commercial vehicle engineered for secure, efficient transport of palletized goods, dry cargo, and temperature-sensitive products. Built on SHACMAN’s rugged X3000 chassis, this 6X2 (tandem rear axle) configuration balances payload capacity with fuel efficiency, making it ideal for long-haul logistics, urban distribution, and regional freight operations in emerging markets like Africa, Southeast Asia, and the Middle East. With a focus on reliability, customization, and operator comfort, it targets fleet operators and independent transporters needing a versatile solution for bulk cargo delivery.
Secure Box Body Design:
The all-steel box body (2.5mm thick outer panels) features weatherproof seals, reinforced door locks, and optional side-access doors for loading/unloading flexibility. Insulated versions (with 80mm foam padding) are available for transporting perishables like food or pharmaceuticals.
Payload Optimization: Tandem rear axle (13T capacity) with air suspension ensures stable weight distribution, while the 6X2 drive reduces fuel consumption compared to 6X4 models—critical for long-haul routes (≥500 km).
Power & Efficiency:
Weichai/Cummins diesel engines deliver 1,250–1,600 Nm torque, enabling smooth acceleration even with full loads. The 10-speed manual transmission optimizes gear ratios for highway cruising (max speed: 90 km/h).
Durable Chassis: 300mm wide frame rails (8mm thickness) with high-tensile steel (600MPa) resist bending under heavy cargo, supported by multi-leaf spring suspension for rough road conditions.

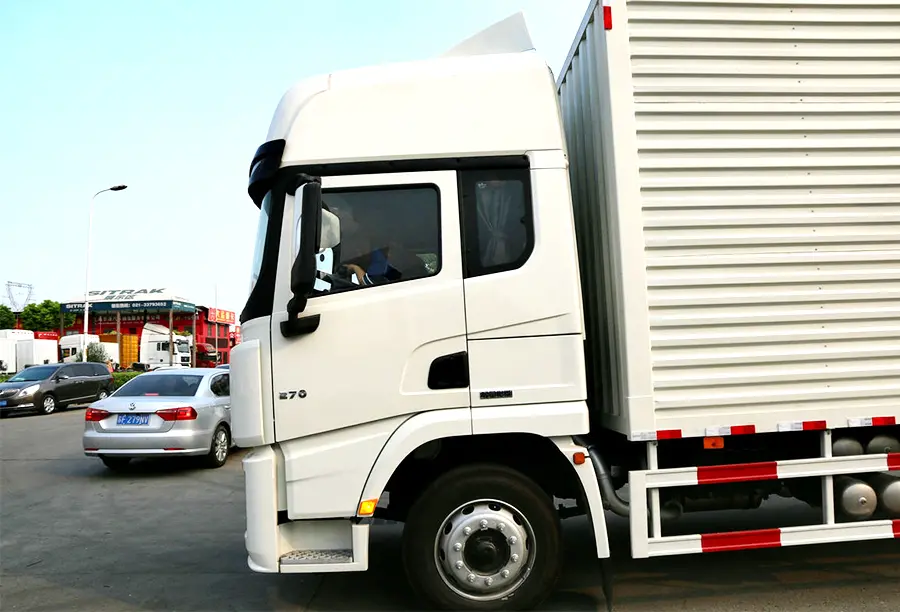

Operator-Centric Cabin:
| SHACMAN X3000 6X2 BOX TRUCK | |
| Model | SX5200XXYXA |
| Type: | Box truck |
| Drive type: | 6X2 |
| Wheelbase: | 6975+1400mm |
| Container length level: | 9.6 meters |
| Engine: | WP7.270E51 |
| Transmission: | Fast 9JS119TB |
| Rear axle ratio: | 3.083 |
| Vehicle length: | 12 meters |
| Vehicle width: | 2.55 meters |
| Vehicle height: | 4 meters |
| Front track: | 2011mm |
| Front track: | 1860/2204mm |
| Total vehicle weight: | 10.17 tons |
| Rated load: | 9.9 tons |
| Total mass: | 20.2 tons |
| Maximum speed: | 100km/h |
| Place of origin: | Xi’an, Shaanxi |
| Tonnage class: | Heavy trucks |
| Approach angle: | 18 degrees (°) |
| Departure angle: | 11 degrees (°) |
| Front/Rear Suspension: | 1.525/2.1 meters |
| Energy type: | Diesel fuel |
| Engine brand: | Weichai |
| Engine model: | WP7.270E51 |
| Number of cylinders: | 6 cylinders |
| Fuel type: | Diesel fuel |
| Cylinder arrangement: | inline |
| Displacement: | 11.6L |
| Emission standards: | National VI |
| Maximum output power: | 199kW |
| Maximum horsepower: | 270 HP |
| Maximum torque: | 1160N·m |
| Maximum torque speed: | 1200-1700rpm |
| Rated speed: | 2300rpm |
| Maximum torque: | Inline six-cylinder, electronically controlled high-pressure common rail SCR |
| Transmission model: | 9JS119TB |
| Gearbox brand: | Fast12 |
| Gear shifting method: | Manual |
| Forward gears: | 9 gears |
| Reverse gears: | 1 |
| Cargo box type: | Box |
| Cargo box length: | 9.55 meters |
| Cargo box width: | 2.45 meters |
| Cargo box height: | 2.75 meters |
| Cargo box interior width: | 2.4500000476837 |
| Cabin: | High Top |
| Occupancy: | 3 people |
| Number of seats: | Half |
| Fuel tank material: | Aluminum alloy |
| Fuel tank capacity: | 400L |
| Front axle allowable load: | 5500kg |
| Rear axle description: | MAN 11.5-ton class |
| Rear axle allowable load: | 9100/5600kg |
| Speed ratio: | 3.083 |
| Number of leaf springs: | 3/-/- |
| Tire specifications: | 295/80R22.5 |
| Number of tires: | 8 |
| Tire specifications (metric): | 295 |
