Model – SX5258GJB6R364C
Power – 253KW/345HP
Engine – ISM11E5 345 +PTO（JACOB）
Wheel base (mm) – 3575+1400
Model – SX5258GJB6R364C
Power – 253KW/345HP
Engine – ISM11E5 345 +PTO（JACOB）
Wheel base (mm) – 3575+1400

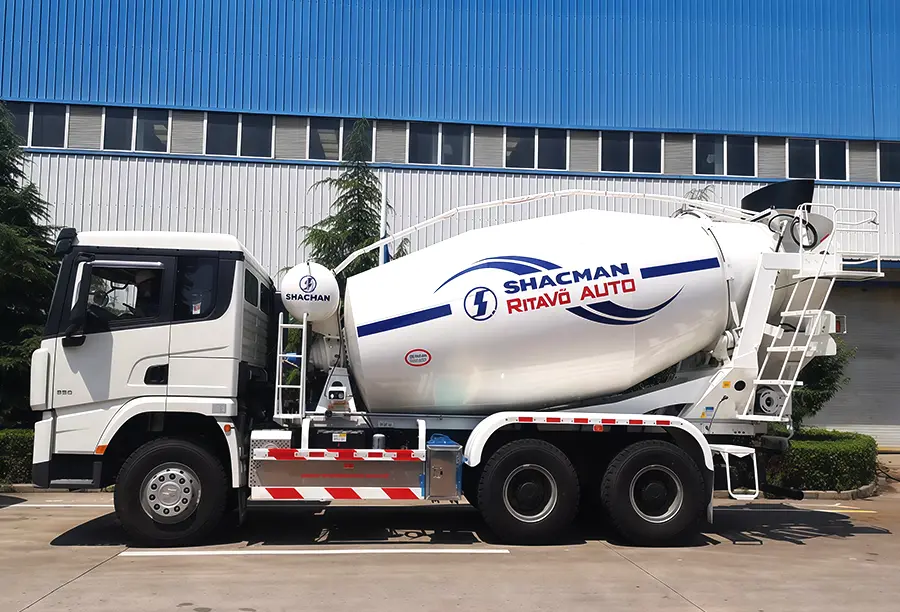

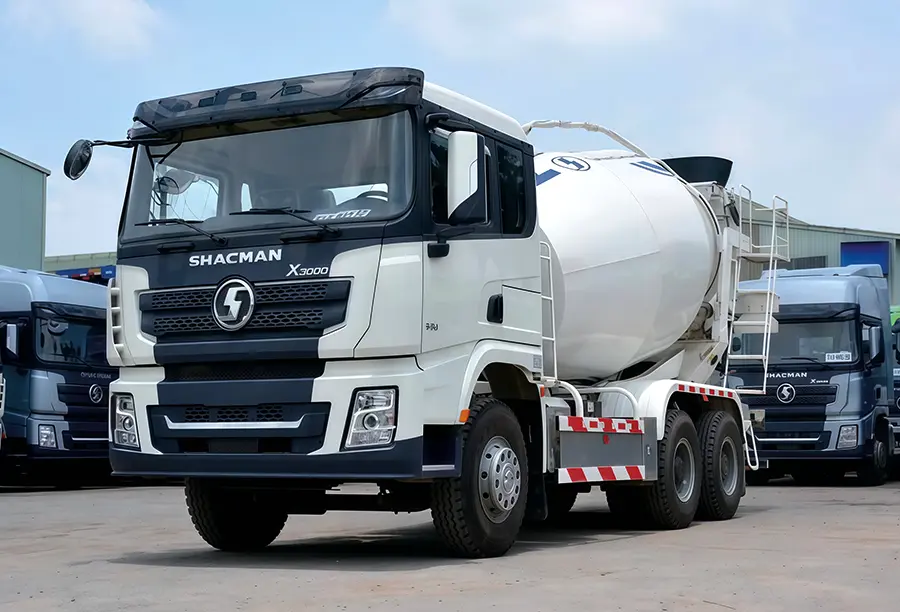

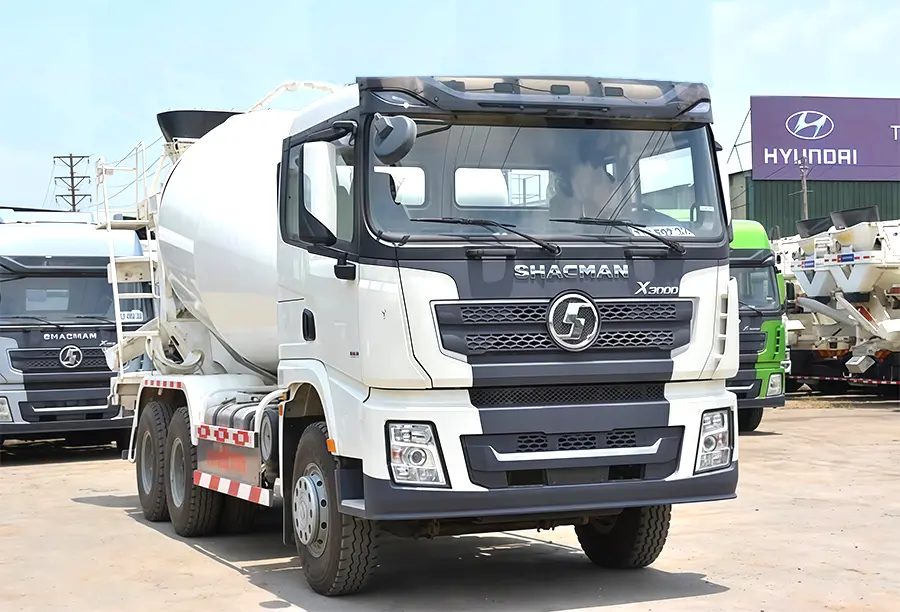

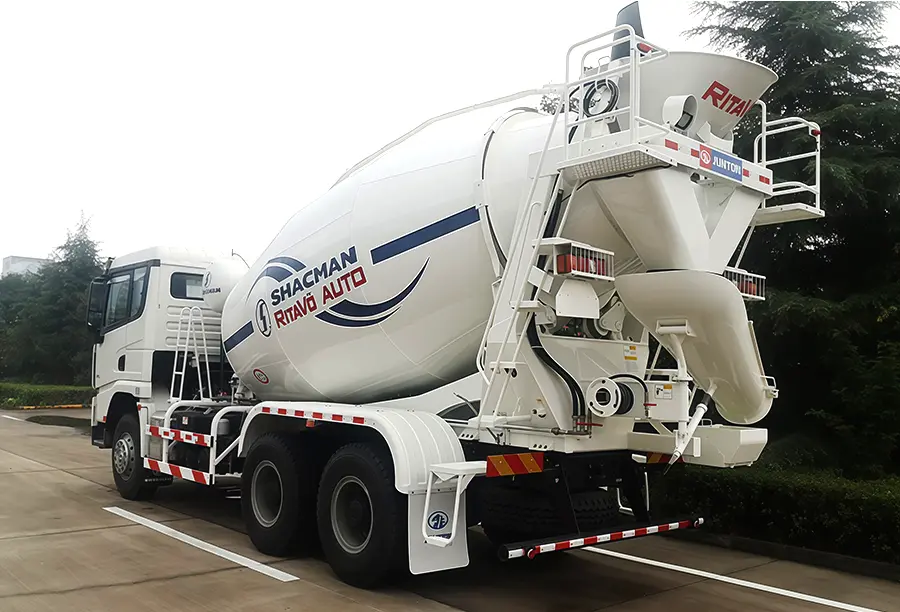

The Shacman X3000 6×4 Mixer Truck is a robust and efficient heavy-duty vehicle engineered for dependable concrete transportation in demanding construction environments. Combining the proven X3000 chassis platform with a high-performance mixing drum system, it delivers exceptional durability, operational efficiency, and driver comfort for critical batching plant-to-site logistics.
Robust Powertrain and Chassis
Equipped with a high-torque, fuel-efficient diesel engine (typically Weichai WP series), providing ample power for fully loaded operations on varied terrain, including urban and rough construction sites.
Built on a reinforced 6×4 heavy-duty chassis with a high-strength frame, engineered to withstand the constant stress of concrete mixing and transportation while ensuring superior stability.
High-Efficiency Mixing Drum System
Features a durable, hydraulically-driven mixing drum with an optimized internal blade design for homogeneous concrete mixing and consistent discharge.
The drum is constructed from wear-resistant steel, ensuring longevity and reliable performance. The hydraulic system offers smooth drum rotation control for precise charging, mixing, and pouring operations.
| SHACMAN X3000 6X4 MIXER TRUCK | ||
| MODEL | SX5258GJB6R364C | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3575+1400 | |
| Max. Speed/(km/h) | 75km/h | |
|
Engine
|
Brand | CUMMINS |
| Model | ISM11E5 345 +PTO（JACOB） | |
| Emission Standard | EURO V | |
| Rated output power/（PS） | 253KW/345HP | |
| Displacement(L) | 10.8L | |
|
Transmission
|
Brand | FAST/ |
| Model | 10JSD180T | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN Double speed reduction bridge<br>Speed ratio: 5.262 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300 (8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding bolts | |
| Fuel tank | 300L Aluminum alloy | |
| Wheels and tires | 12.00R20 10+1 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin |
X3000 medium length flat top cab without air deflector, air main and auxiliary seats, four point hydraulic suspension, ordinary rearview mirrors, electrically controlled automatic temperature control air conditioning, electric window rocking machine (March motor), manual flipping, metal bumper with light protection net, three-level boarding pedal, multifunctional steering wheel (with cruise control), ordinary air filter, ordinary exhaust, water tank protection grille, imported clutch, rear axle stabilizer bar, tail light protection grille, 180Ah maintenance free battery, Shacman telematics (with screen but no terminal), yellow illuminated sunshade light, cab flipping Spanish logo, SHACMAN logo, all English logo, aluminum alloy air storage tank. Special rear protection, reverse buzzer, 2kg fire extinguisher, remote throttle controller, telescopic shaft control, rear beam lighting (with protective net) LED daytime running lights, inverter power supply (300W), Jack Sail compressor (ISM and WP engines only) |
|
| Upbody | 8 | |
