SHACMAN Truck Gear Lever: The Complete Guide to Fitment, Part Numbers & Replacement

Shacman Dump Truck | SHACMAN GROUP

When searching for a SHACMAN truck gear lever, the biggest mistake buyers make is assuming that any gear lever for a SHACMAN truck will fit their specific model. In reality, the gear lever is not a universal component. Fitment is determined by the transmission model, the control architecture (mechanical vs. pneumatic), and the cab layout—not simply by the truck series badge.

This guide explains how to identify the correct gear lever for your SHACMAN truck, the part number systems you need to understand, and the components that should be replaced together during a gear lever repair.

Why Your Truck Model Isn’t Enough

SHACMAN produces multiple truck series (F2000, F3000, X3000, X5000, X6000, M3000, H3000, L3000), but the gear lever fitment follows the transmission and the cab it sits in, not the series name. A gear lever that fits an F3000 with a Fast 12JS160T transmission may not fit an F3000 with a different transmission variant.

The nameplate model code on the gearbox carries most of what a supplier needs to work from. Shaanxi Fast Auto Drive, which supplies transmissions for most SHACMAN chassis, publishes a key to its model codes. The initial numeral indicates the number of forward gears, and the middle digits track a torque class. The letters record construction details: mechanical manual operation, the centre distance in the auxiliary section, helical gearing, twin countershaft layout, and whether synchronizers are fitted.

However, none of those characters describe the shift tower, the cab floor height, the remote mechanism, or the side the driver sits on. Two gearboxes in different torque classes can share one shift control, and one gearbox model in two cab layouts can require two different gear levers.

shacman trucks – Shacman group

The Two Variables That Decide Fitment

Before comparing any gear lever, you must confirm two things:

1. Full Transmission Model Code (with Suffix)

The complete transmission model code, including any suffix, determines whether an auxiliary section exists and therefore which family of parts applies. This is stamped on the gearbox nameplate, not on paperwork.

2. Control Architecture: Mechanical vs. Pneumatic vs. AMT

SHACMAN trucks use three different gear lever architectures:

• Mechanical (Direct or Remote): The gear lever is physically connected to the transmission via rods or cables. Most F3000 and X3000 manual trucks use this setup.

• Pneumatic-Assisted (Range Valve): The gear lever includes an integrated range valve that controls the high/low range selection on the auxiliary section. The air line runs from the lever base to the transmission.

• AMT (Automated Manual Transmission): The selector is electronic, verified with diagnostic equipment, and will not interchange with a mechanical lever or its knob. Newer X6000 models use a column-mounted AMT selector that frees up cabin space.

An error in control architecture only surfaces after the part is installed in the cab. This is why tracing the air line from the lever base—to see whether it terminates at the shaft or leaves the cab toward a housing on the gearbox—is essential before ordering.

shacman trucks – Shacman group

Common SHACMAN Gear Lever Part Numbers

SHACMAN gear lever components circulate under three numbering conventions. Recognizing which system a part number belongs to tells you what that number can confirm on its own.

Chassis-Side Numbering (DZ…)

These numbers are used on SHACMAN and Delong builds. They confirm that an assembly belongs to a chassis family but do not confirm the gearbox variant, cab layout, or control architecture within that family.

Gearbox Model Prefix (12JS160T-…)

These numbers are catalogued by the transmission manufacturer and are keyed to the specific gearbox model. They confirm that a part sits in that gearbox’s shift-control group but do not confirm which cab or remote mechanism it was installed with.

Example: 12JS160T-1708010-1 — Gear shift lever for Fast 12JS160T transmission.

Sinotruk-Side Numbering (WG…)

These numbers are frequently listed as cross-fittings. A seller may treat them as interchangeable, but interchangeability with a SHACMAN control is not guaranteed without formal cross-reference. Compare gate pattern, air port position, and shaft dimensions against the old part before ordering.

shacman trucks – Shacman group

Gear Lever Components That Should Be Replaced Together

A gear lever replacement is rarely just the lever. The following components should be inspected and often replaced at the same time to ensure proper function and avoid repeat labor:

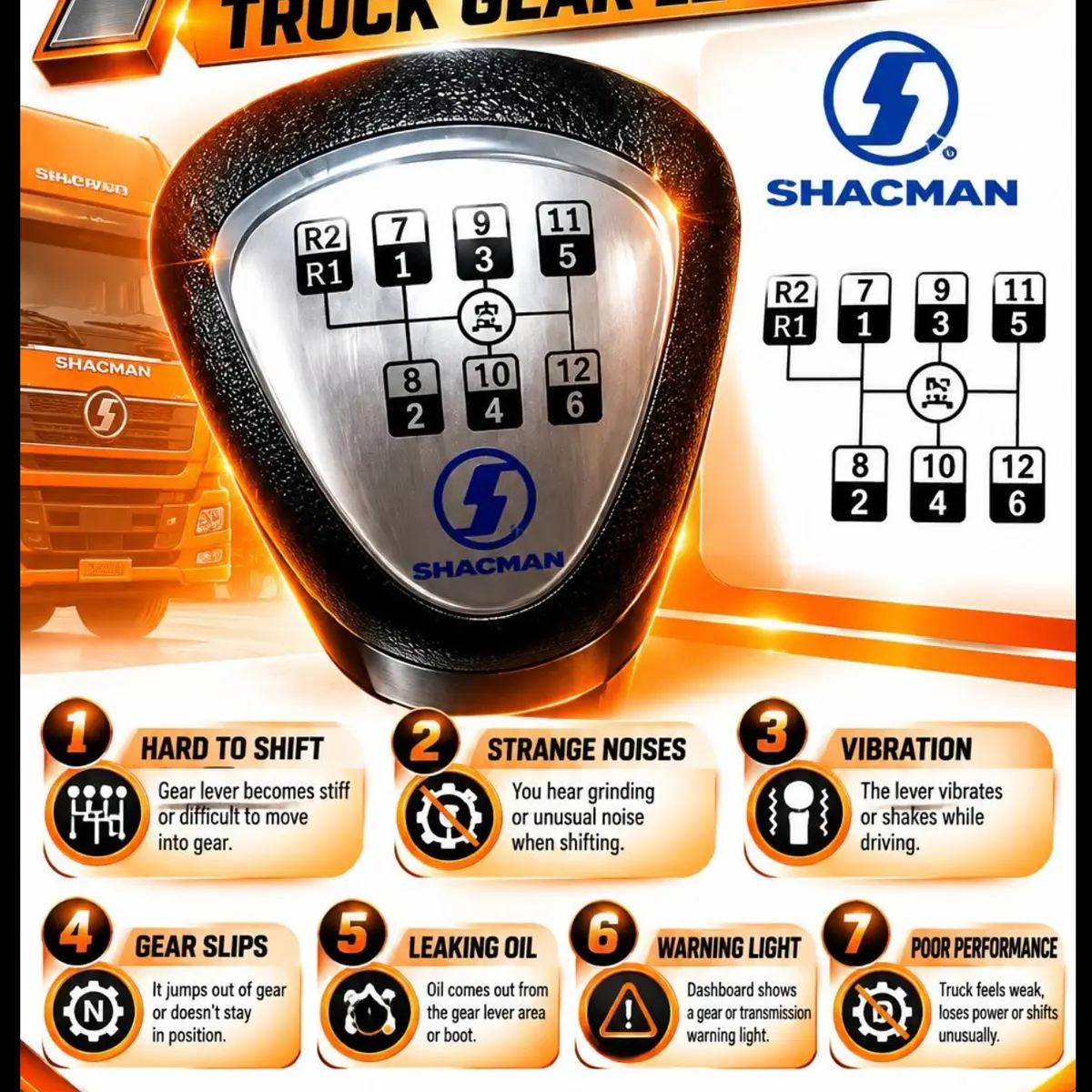

Diagnostic Guide: Gear Lever vs. Range Valve vs. Linkage

Most shifting complaints on SHACMAN trucks resolve to one of four subsystems. The symptom pattern narrows the search before anything is disassembled:

models – shacman group

Maintenance Tips for SHACMAN Gear Levers

For X5000 Flexible Shift Mechanism: SHACMAN X5000 uses a telescopic rod transmission control device with flexible connections. The shift handle ball has 50mm of free play. This design reduces shift force by 66% compared to rigid rods and 50% compared to cables.

Key maintenance for this system:

• Regularly clean dust and debris from the shift booster, especially the breather plug, to prevent internal damage or blocked air passages

• Clean approximately every six months, adjusted for operating environment

• Check the booster air intake line for leaks during routine inspections to maintain stable booster performance

General Gear Lever Maintenance:

• Apply multi-purpose lithium lubricating grease to the bottom ball joint and cable connectors to ensure smooth shifting

• Inspect the rubber dust boot regularly; replace if cracked or torn

• For pneumatic range valves, check air line fittings for leaks after any disassembly

models – shacman group

Summary

Selecting the correct SHACMAN truck gear lever requires more than matching a truck model name. You must confirm the full transmission model code, the control architecture (mechanical, pneumatic, or AMT), and the cab layout. Use the part number system (DZ, gearbox prefix, or WG) as a starting point, and always verify against the old part or an OEM catalogue before ordering. When replacing the gear lever, inspect and replace associated components—cables, dust boot, air fittings, and knob valve—to avoid repeat labor and ensure proper function.
