Motor 1 model – SX1040E3D16B3411N2JEN
GVW – ≤ 8T
Power Battery – 100kwh
Front Axle – 2.2T
Rear Axle – 3.5t/16.193
Wheelbase(mm) – 3360
Motor 1 model – SX1040E3D16B3411N2JEN
GVW – ≤ 8T
Power Battery – 100kwh
Front Axle – 2.2T
Rear Axle – 3.5t/16.193
Wheelbase(mm) – 3360

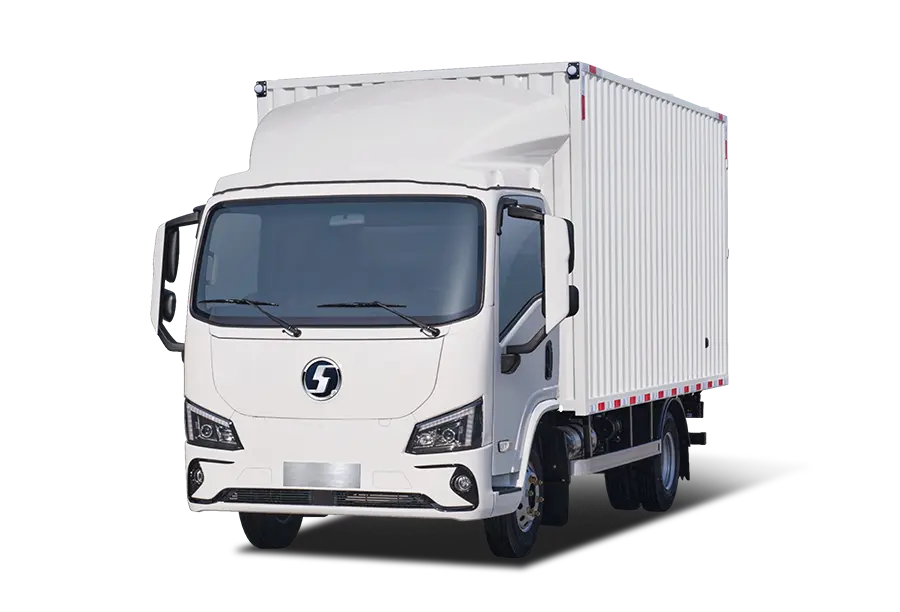

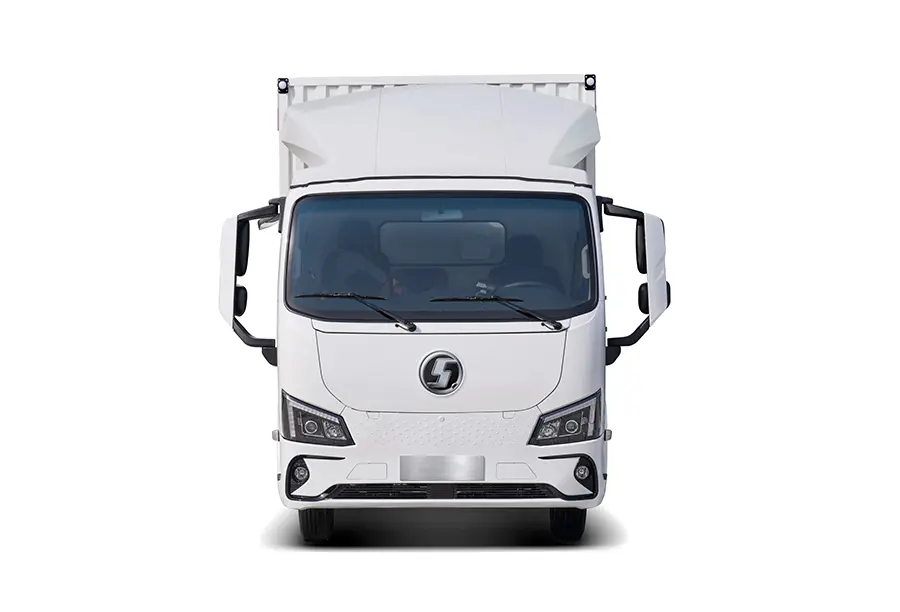

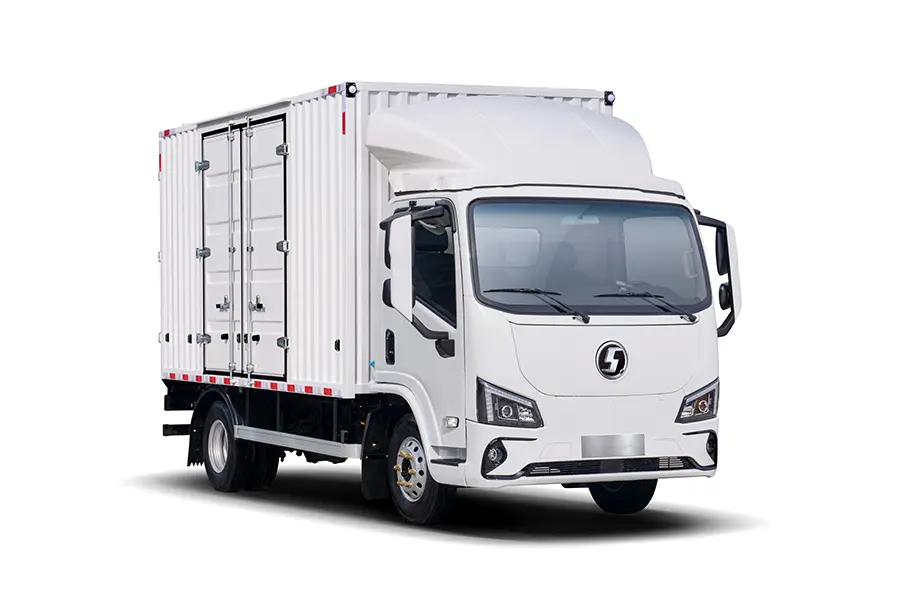

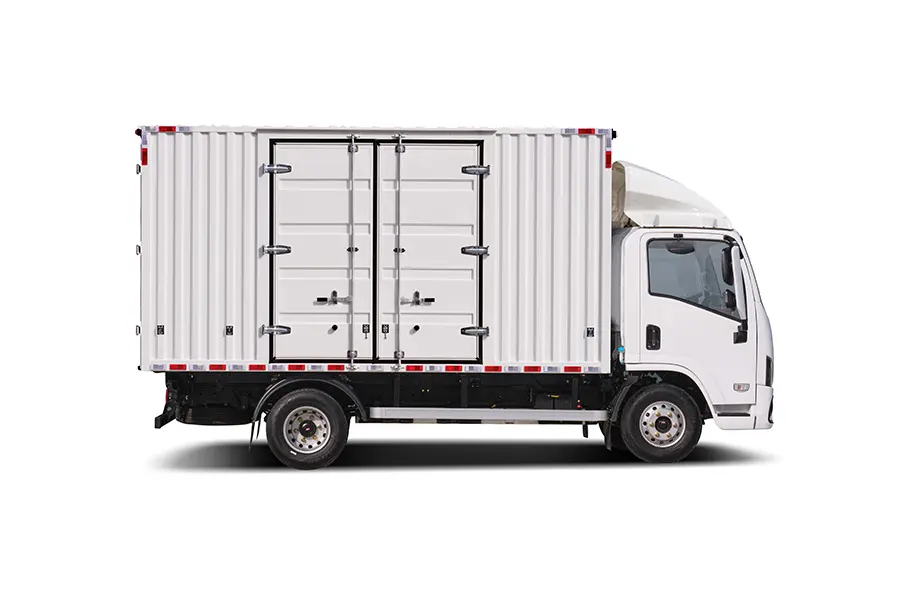

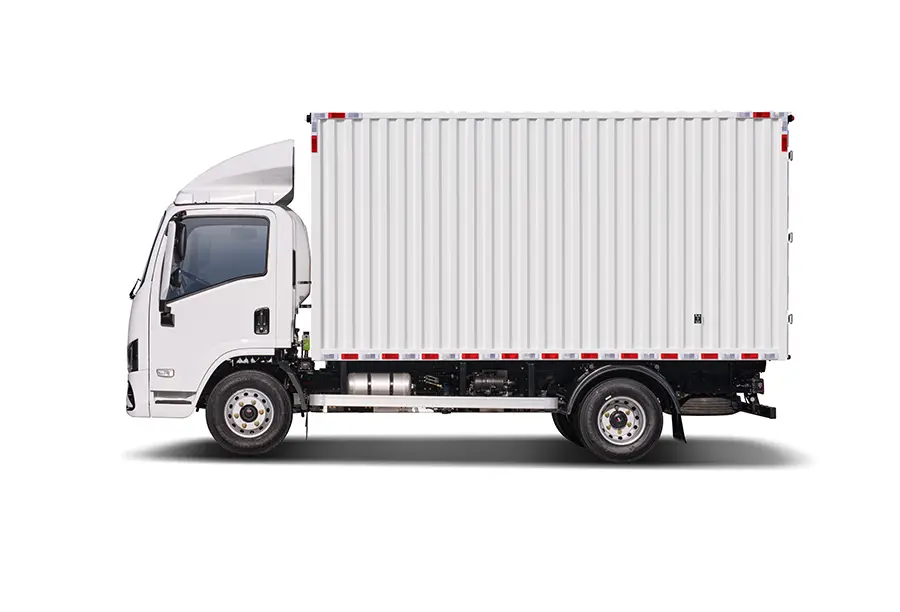

The SHACMAN I9 Electric Truck represents the next generation of heavy-duty commercial vehicles, designed to meet the growing global demand for eco-friendly, high-efficiency, and cost-effective logistics. Engineered with cutting-edge battery technology and a robust chassis, the SHACMAN I9 EV truck delivers uncompromised power, extended range, and zero tailpipe emissions for modern fleet operators.
1. High-Efficiency Electric Powertrain
Powered by top-tier lithium iron phosphate (LFP) battery packs and high-torque central electric motors, the SHACMAN I9 delivers instant acceleration and exceptional climbing ability. Its advanced energy management system ensures optimal power output even under heavy load conditions.
2. Flexible Charging & Battery Swapping Options
To minimize operational downtime, the SHACMAN I9 supports both dual-gun fast DC charging and rapid battery swapping technology. Fleet managers can recharge the vehicle to 80% in under 40 minutes or complete a full battery swap in just 3–5 minutes.
3. Reduced Total Cost of Ownership (TCO)
Compared to traditional diesel heavy trucks, the SHACMAN I9 EV drastically lowers daily operating expenses. With significantly fewer moving powertrain parts, maintenance costs are reduced by up to 40%, delivering a rapid return on investment (ROI) for logistics companies.
4. Smart Driving & Driver Comfort
The SHACMAN I9 features an ergonomically designed cabin equipped with digital instrument clusters, intelligent fleet management telematics, and advanced driver-assistance systems (ADAS) to ensure maximum safety and comfort during long-haul or port transport operations.
Car-to-car charging: the DC charging port of the vehicle can be compatible with the discharge function, which supports external devices to get electricity from the DC charging port. Insulation monitoring After the insulation failure of the air conditioning circuit occurs, the air conditioner can be intelligently detected and disconnected, which does not affect the safe driving of the vehicle.
| Basic Info | Product Name | SHACMAN NEW ENERGY i9 Electric Light Truck |
| Model Code | SX1040E3D16B3411N2JEN | |
| Application Scenarios | Express delivery, supermarket distribution, LTL transportation, cold chain logistics | |
| Exterior & Safety | Design | Streamlined new energy exclusive styling |
| Cab Crash Performance | Compliant with ECE_R29 crash requirements | |
| Rearview Mirror | Integral electric heating ultra-narrow frame large-area rearview mirror | |
| Headlight | Optional eagle-eye blackened LED daytime running lights | |
| Idle Interior Noise | As low as 50.1dB | |
| Interior & Comfort | Dashboard | Passenger car-style semi-enclosed wrap-around structure, all buttons within easy reach |
| Seats | Full-wrapped ergonomic airbag seat, adjustable for front/back position and backrest angle | |
| Central Control | 10-inch multimedia screen + rearview camera | |
| Instrument | 7-inch color LCD dashboard for clear driving data reading | |
| Air Conditioner | Automatic constant temperature dual cooling & heating system | |
| Steering System | Electric power-assisted steering for easy operation | |
| Gear Shift | Rotary shift button, supports 2 driving modes for quick switching | |
| Color Scheme | Mainly brown, black and red interior tones | |
| Storage | Built-in storage space above the sun visor for convenient item placement |
