Model – SX4257MF4Q4SEV
Wheelbase – 3775+1350mm
Gross Vehicle Weight – 25 tons
Maximum Speed – 89km/h
Energy Type – Pure Electric
Model – SX4257MF4Q4SEV
Wheelbase – 3775+1350mm
Gross Vehicle Weight – 25 tons
Maximum Speed – 89km/h
Energy Type – Pure Electric

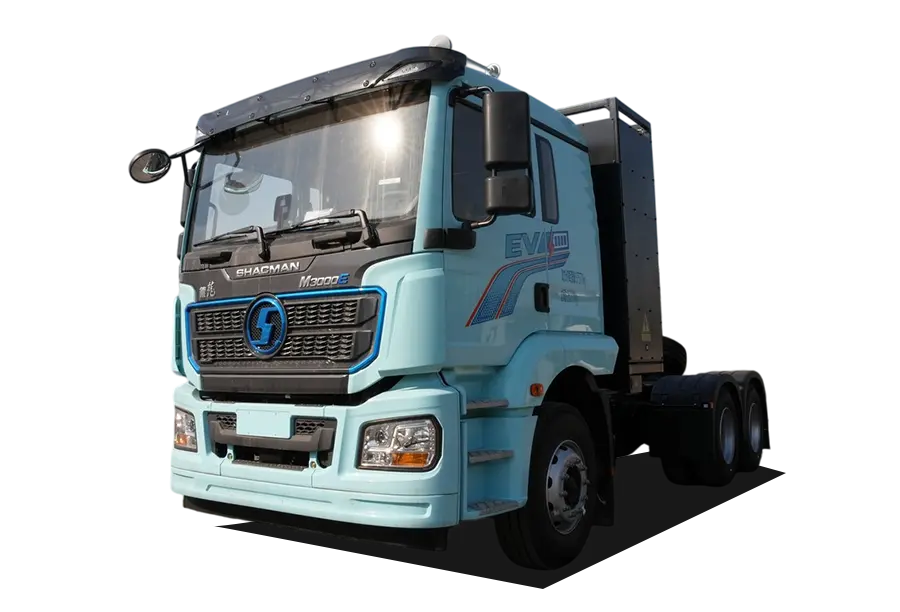

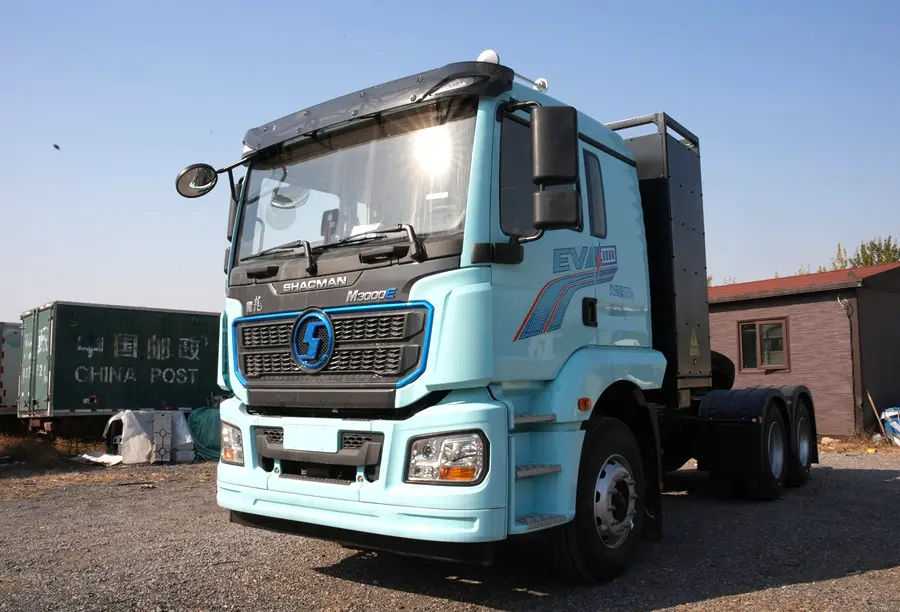

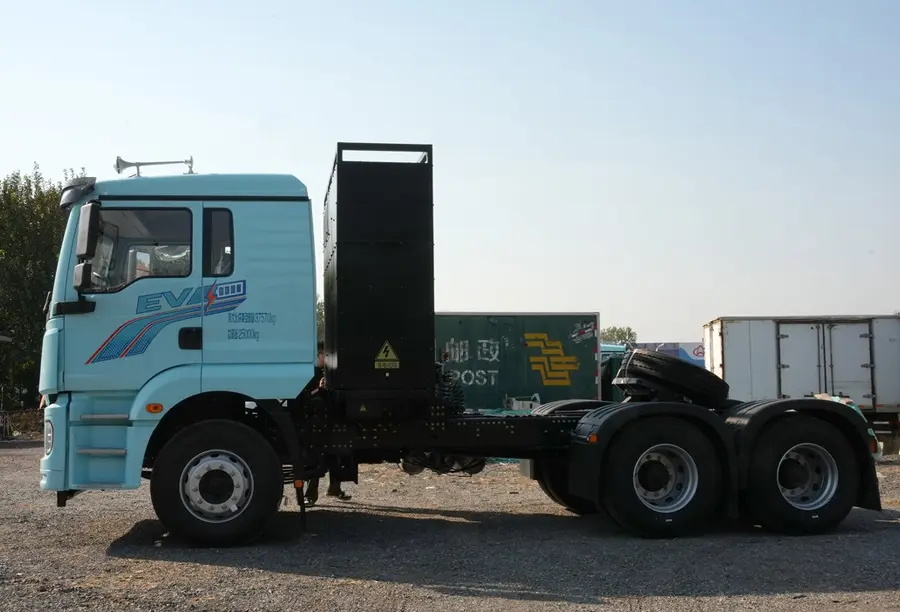

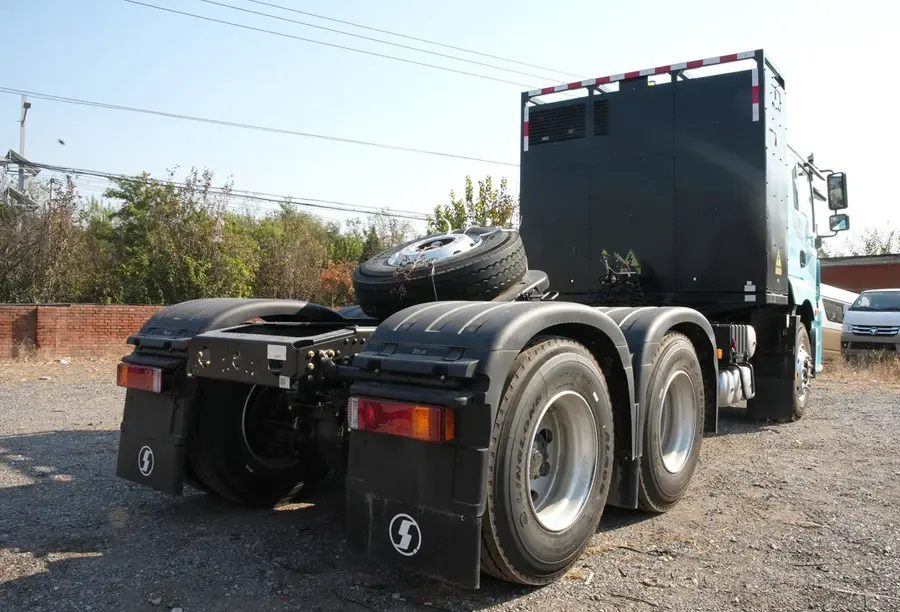

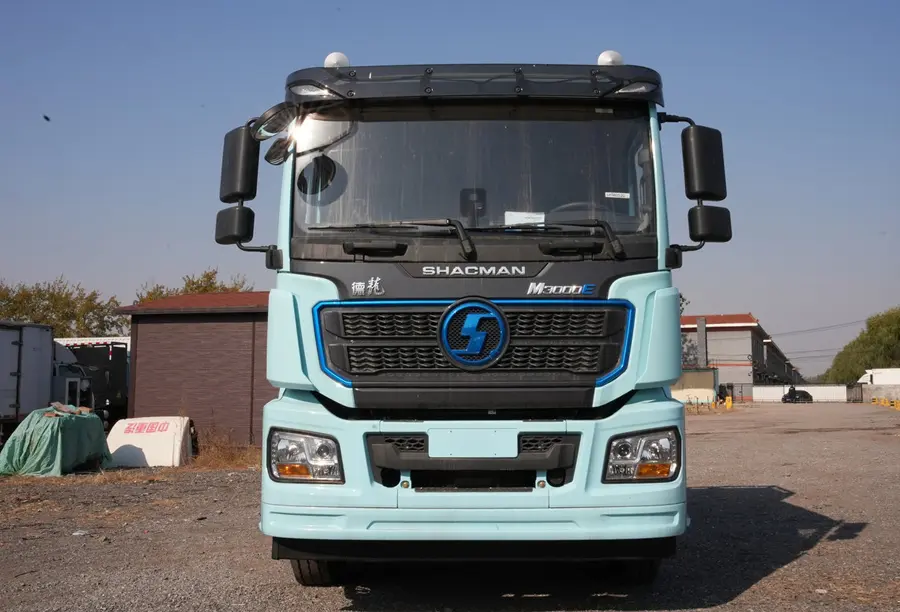

The Shacman M3000 Tractor Truck is a versatile heavy-duty vehicle designed to meet the demands of long-haul transportation and heavy cargo logistics. As a reliable member of Shacman’s commercial truck lineup, the M3000 offers a balanced combination of power, durability, and cost-effectiveness, making it an ideal solution for businesses across various industries including construction, mining, and freight transport.
Engine: Equipped with Weichai or Shacman-manufactured diesel engines delivering 371-450 horsepower, meeting Euro 2-4 emission standards
Transmission: 10-speed manual gearbox for smooth power delivery and optimal fuel efficiency
Fuel Tank: 600L capacity for extended range between refueling stops
Traction Capacity: Maximum towing weight up to 40 tons with 6×4 drive configuration
Payload: Rated load capacity of 12.1 tons with a gross vehicle weight of 30 tons
Torque: 2000-2500 Nm for strong pulling power on steep gradients and challenging terrain
Wheelbase: 3900+1350 mm (typical for 6×4 configuration)
Overall Size: 6800mm × 2560mm × 3100mm
Tires: 12.00R20 radial tires with ECE/GCC certification for enhanced durability
Reinforced steel chassis with heavy-duty leaf spring suspension for durability and load-bearing capacity
Tubeless tires for improved safety and reduced maintenance requirements
Dual-line air brake system with ABS for reliable stopping power
| SHACMAN M3000 TRACTOR TRUCK | |
| Model Number: | SX4257MF4Q4SEV |
| Front Track/Rear Track: | Front track: 2070mm; Rear track: 1880/1880mm |
| Drive Type: | 6X4 |
| Wheelbase: | 3775+1350mm |
| Vehicle Length: | 7.41m |
| Vehicle Width: | 2.55m |
| Vehicle Height: | 3.59m |
| Vehicle Weight: | 10.25 tons |
| Gross Vehicle Weight: | 25 tons |
| Maximum Speed: | 89km/h |
| Towing Capacity: | 38.62 tons |
| Tonality Class: | Heavy truck |
| CLTC Range: | 240km |
| Version: | Lightweight version |
| Energy Type: | Pure electric |
| Battery Swapping Support: | Battery swapping |
| Motor 1 Brand: | Zhide |
| Motor 1 Model: | TZ400XS033 |
| Motor 1 Peak Power: | 410kW |
| Motor Type: | Permanent magnet synchronous motor |
| Total Rated Power: | 270kW |
| Peak Power: | 410kW |
| Number of Drive Motors: | Single motor |
| Battery Brand: | CATL |
| Battery Type: | Lithium iron phosphate battery |
| Battery Capacity: | 400.61kWh |
| Cabin: | M3000E extended semi-high roof |
| Cabin Suspension: | Four-point airbag suspension |
| Occupancy: | 2 people |
| Driver’s Seat Type: | Airbag shock-absorbing seat |
| Front Axle Permissible Load: | 7000kg |
| Rear Axle Permissible Load: | 18000 (two-axle group)kg |
| Number of Tires: | 10 units |
| Tire Specifications: | 12R22.5 18PR |
