Type of vehicle – Shacman Tractor Truck
Power 440 – 330HP- 500HP
Engine – Cummins 30ISM11E5 440
Overall dimension (mm) – 10800X2550x3920mm
Type of vehicle – Shacman Tractor Truck
Power 440 – 330HP- 500HP
Engine – Cummins 30ISM11E5 440
Overall dimension (mm) – 10800X2550x3920mm

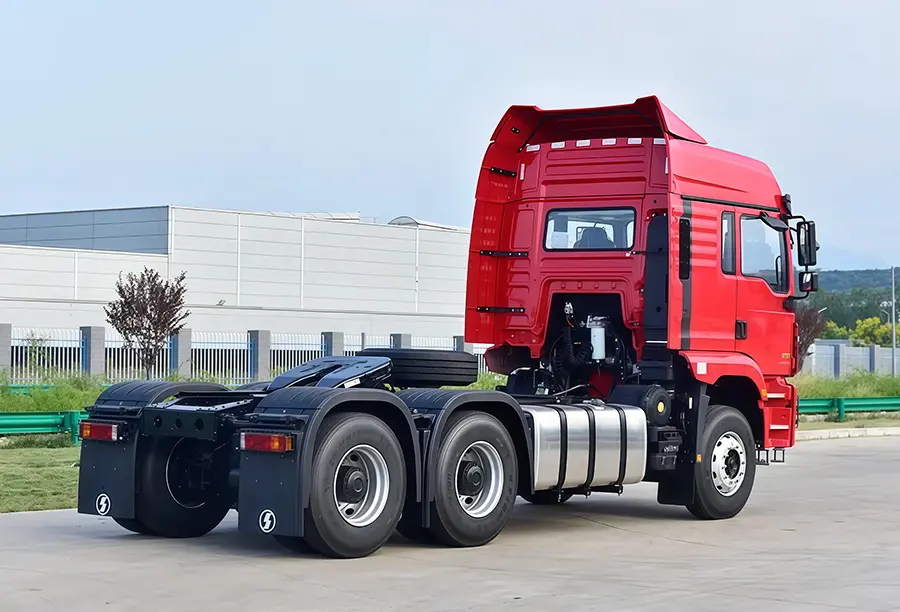

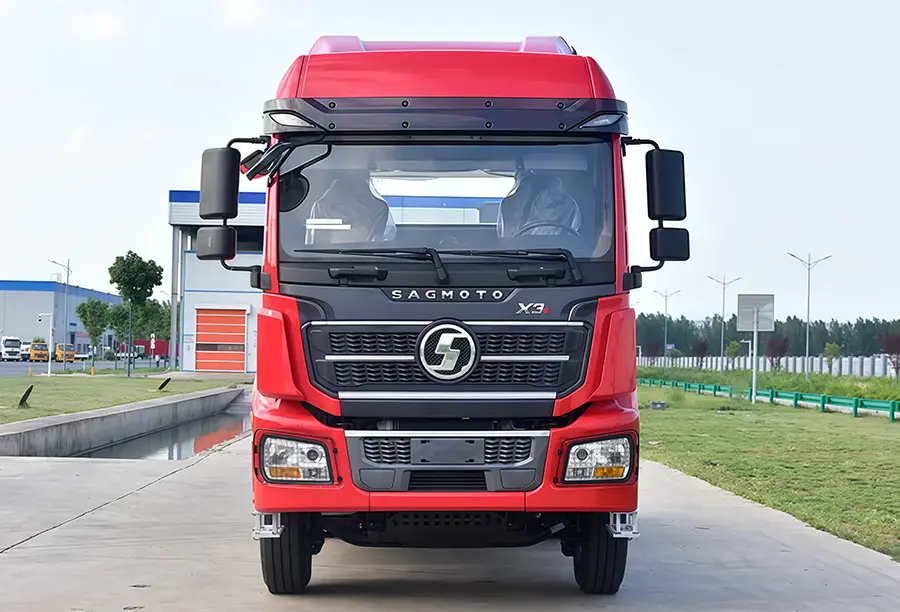

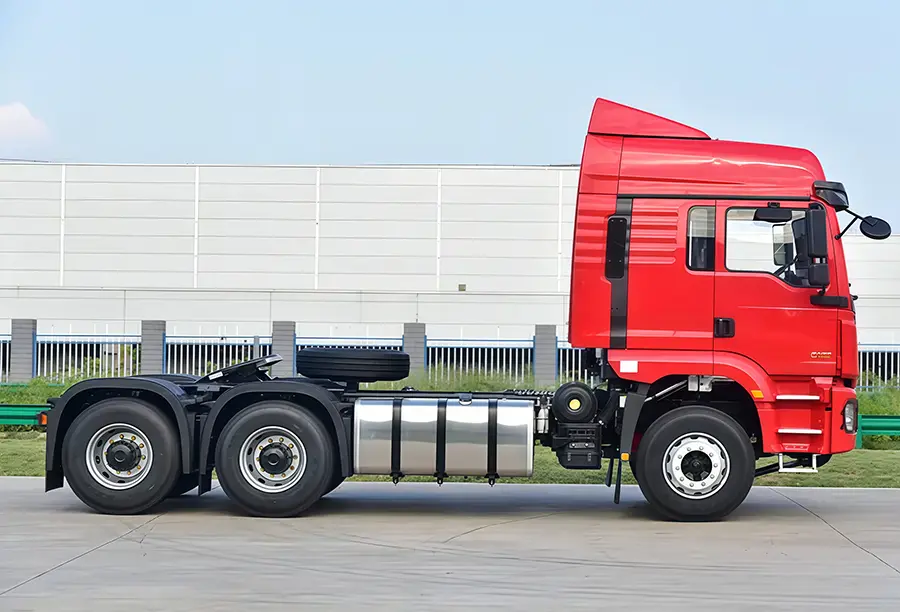

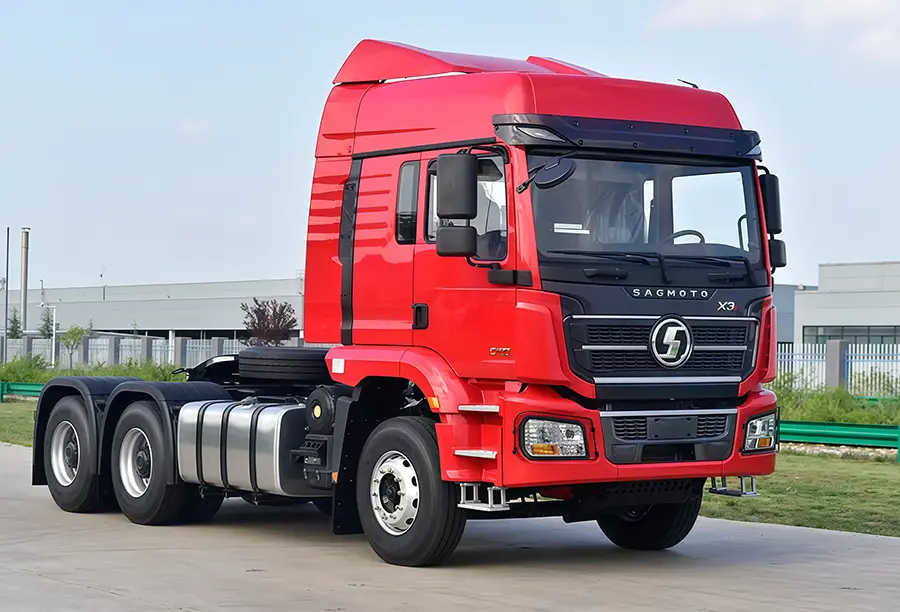

The SHACMAN X3S 6×4 Tractor Head is a premium heavy-duty commercial vehicle engineered for long-haul container transport, intercity freight, and heavy-duty logistics. As the flagship model in SHACMAN’s X3S series, it integrates advanced powertrain technology, aerodynamic design, and smart safety features, targeting global fleet operators and logistics companies in high-demand markets like Southeast Asia, Africa, and the Middle East.
Powerful & Fuel-Saving Powertrain:
The 500HP Weichai WP13 engine delivers 2,400 Nm torque, paired with a ZF AMT transmission for seamless gear shifts and 8–10% lower fuel consumption than previous generations. The engine’s high-pressure common rail system and exhaust gas recirculation (EGR) ensure Euro 6 compliance for strict emission markets.
Aerodynamic & Lightweight Design:
The sloped cab roof (drag coefficient 0.51) and side deflectors reduce wind resistance, while the aluminum alloy fuel tank (600L) and lightweight chassis (high-strength steel frame) optimize payload-to-weight ratio.
Smart Safety & Comfort:
Driver Assistance: ACC maintains safe distance from vehicles ahead, LDW alerts for lane drift, and a 360° camera system enhances visibility in tight spaces.
Cab Comfort: Spacious double bunk sleeper cab (2200mm length), climate control, and a 10-inch touchscreen with navigation and fleet management integration.
Customizable for Global Markets:
Available in left/right-hand drive, with options for cold-start kits (for sub-zero regions), reinforced suspension (for rough terrain), and telematics systems (real-time fleet tracking).
| SHACMAN X3S 6×4 TRACTOR HEAD | |
| LXWxH | 10800X2550x3920mm |
| Cargo body | 7000x2450x600mm |
| Curb weight | 19460 kg |
| Crane Weight | 4850 kg |
| Max. Rated Lifting Weight | 12000 kg |
| Basic Boom Length | 5.65 m |
| Full-extension Boom Length | 19.3 m |
| Max. Lifting Height | 20.3 m |
| Maximum Lifting Torque of Basic Boom | 330 KN.m |
| Boom Sections | 5 |
| Boom Structure | stacked hexagon |
| Expansion type | Double telescopic cylinder |
| Max outrigger span (front cross) | 7.6 m |
| Max.Winch Speed | 80m/min |
| Max slewing speed | 2 r/min |
| Full Extension Time of Boom | 27s |
| Lift Time of Boom | 22s |
| Chassis performance | |
| Type | X3s 6×4 |
| Model | SX5255JSQM3M42J5240 |
| GVW | ≤40T |
| Wheelbase | 5175+1400mm |
| Engine model | ISM11E5 420 |
| Engine emission | Euro 5 |
| Engine displacement | 10.8L |
| Gearbox | 12JSD200T-B+QH50 |
| Front axle | HDZ 7.5t |
| Rear axle | HDZ 16T Double stage dual axle/4.262 |
| suspension | Front and rear multiple leaf springs, four main springs +four U-bolts |
| Frame | 850X300/8+5+8 Three Layers |
| Fuel tank | 400L AI |
| Wheels and tires | 315/80R22.5 |
| Cab | X3s dedicated cab, airbag cushion-absorbing driver seat,four-point mechanical suspension, LED headlights,daytime running lights, multi- Cab function steering wheel, air conditioner, power windows,5-inch LCD combined instrument, bluetooth player (with 5-inch screen), manual flip, central lock (1 central key +2 mechanical keys) |
