Model – SX32595D404
Engine – WP12.400E62
Total mass – 25 tons
Wheelbase – 3975+1400mm
Model – SX32595D404
Engine – WP12.400E62
Total mass – 25 tons
Wheelbase – 3975+1400mm

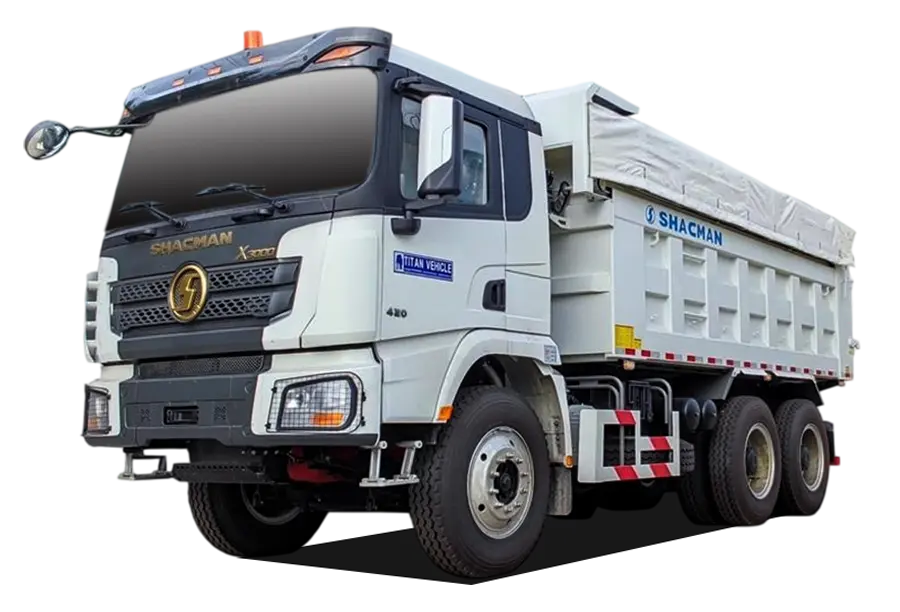

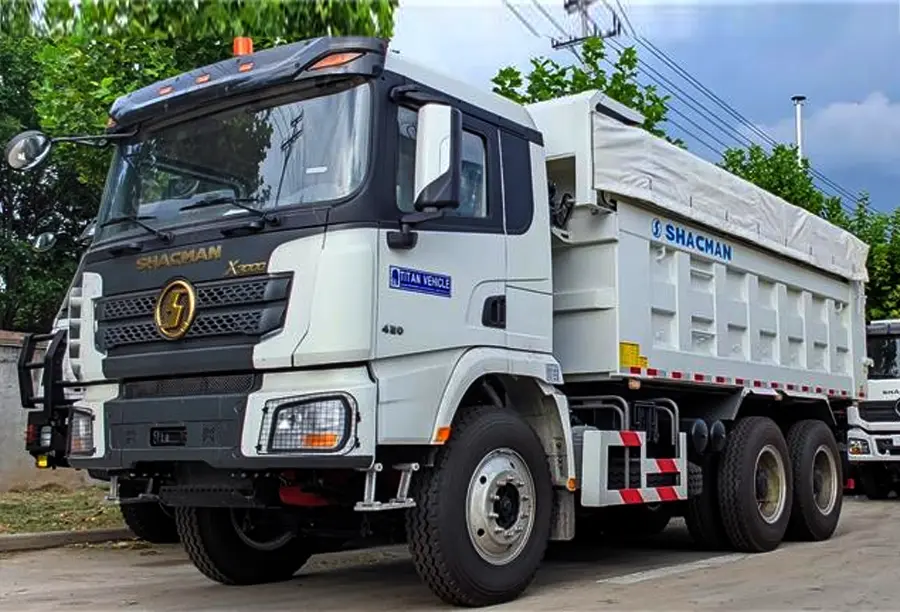

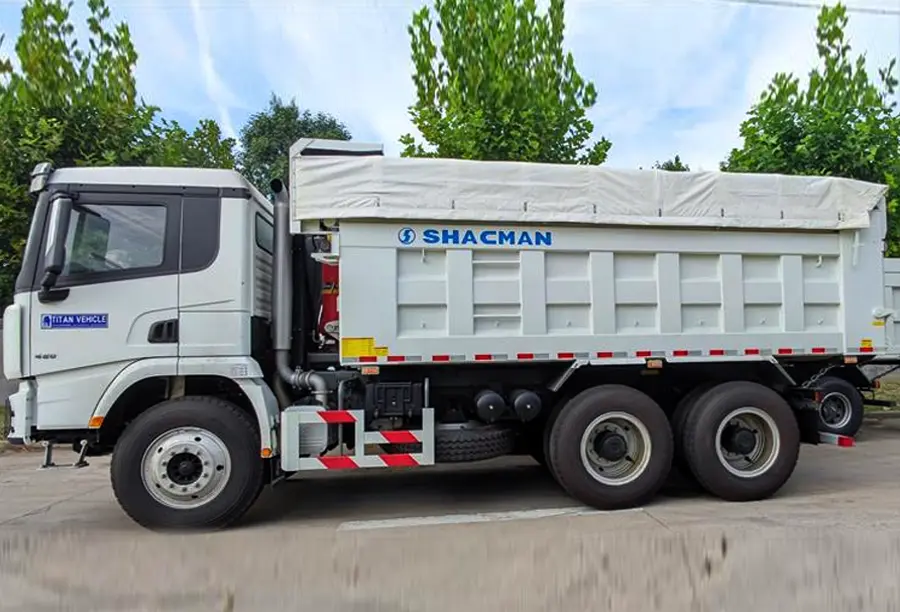

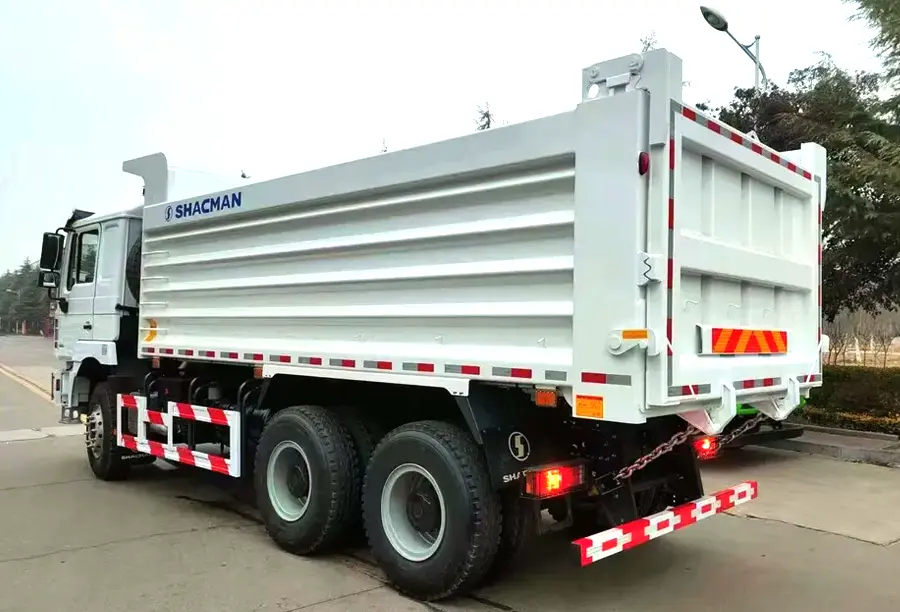

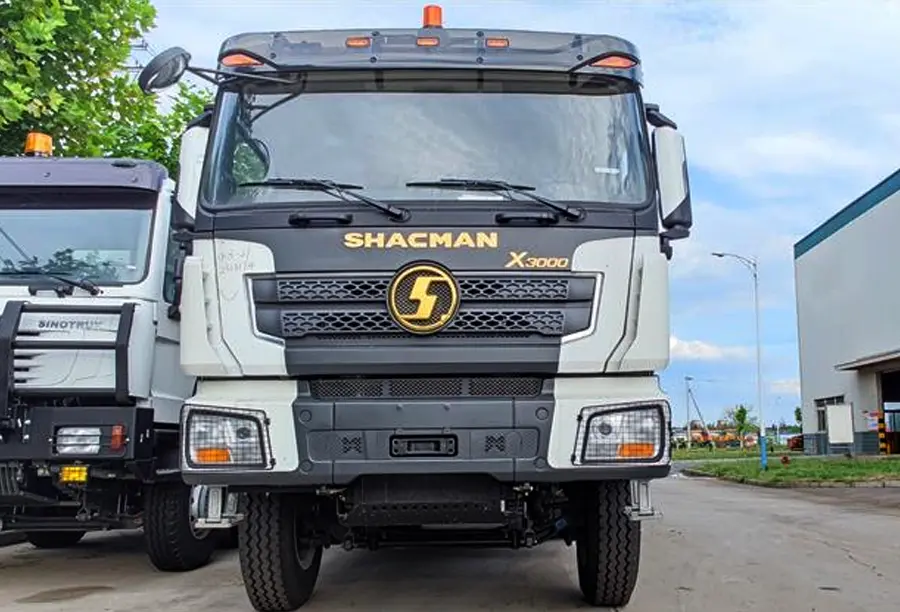

The Shacman X3000 10 Wheeler Dump Truck is a heavy-duty vehicle designed to meet the demanding requirements of mining, construction, and large-scale infrastructure projects. It is equipped with a powerful engine and advanced transmission system to ensure efficient and reliable performance in various operating conditions.
Powertrain:
Engine: Weichai WP12 series turbocharged diesel engine delivering 380-400 HP power output
Transmission: FAST 10-speed manual transmission system
Emission Standard: Euro 2, Euro 3, or Euro 6 compliant with advanced exhaust treatment systems
Performance: Powerful engine with sufficient torque for heavy-load operation on steep gradients
Drive Type: 6×4 or 8×4 configuration for optimal traction and load distribution
Payload Capacity: 30-50 tons with a gross vehicle weight suitable for heavy-duty operations
Cargo Box: Available in lengths from 5.3m to 8m with heaped capacity up to 38 cubic meters
Fuel Tank: Large-capacity fuel tank for extended operation between refueling stops
Fuel Efficiency: Advanced engine design optimizing fuel consumption without sacrificing performance
Reinforced heavy-duty chassis frame engineered to withstand constant loading, unloading, and rough terrain operation
High-strength steel cargo box with wear-resistant lining, available in U-shape or square-shape configurations
Front-lifting hydraulic system for quick and controlled unloading, with dumping angle suitable for various materials
Spacious cab with comfortable seating and ergonomic controls
Advanced climate control system for comfortable working environment in all weather conditions
| SHACMAN 10 WHEELER DUMP TRUCK | |
| Model | SX32595D404 |
| Drive type: | 6X4 |
| Wheelbase: | 3975+1400mm |
| Engine: | WP12.400E62 |
| Transmission: | Fast 12JSD200T |
| Rear axle ratio: | 5.262 |
| Vehicle length: | 8.55 meters |
| Vehicle width: | 2.55 meters |
| Vehicle height: | 3.5 meters |
| Front track: | 2036mm |
| Rear track: | 1860/1860mm |
| Total vehicle weight: | 12.5 tons |
| Rated load: | 12.37 tons |
| Total mass: | 25 tons |
| Tonnage class: | Heavy trucks |
| Approach angle: | 17 degrees (°) |
| Departure angle: | 24 degrees (°) |
| Place of origin: | Xi’an, Shaanxi |
| Energy type: | Diesel fuel |
| Engine model: | WP12.400E62 |
| Engine brand: | Weichai |
| Number of cylinders: | 6 cylinders |
| Fuel type: | Diesel fuel |
| Displacement: | 11.6L |
| Emission standards: | National VI |
| Maximum horsepower: | 400 HP |
| Maximum output power: | 294kW |
| Maximum torque: | 2000N·m |
| Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm |
| Maximum torque: | CR+DOC+DPF+Hi_SCR |
| Transmission model: | Fast12JSD200T |
| Gearbox brand: | Fast |
| Gear shifting method: | Manual |
| Forward gears: | 12 gears |
| Reverse gears: | 2 |
| Cargo box length: | 5.6 meters |
| Cargo box width: | 2.35 meters |
| Cargo box height: | 1.5 meters |
| Cargo box type: | Self-unloading |
| Unloading method: | Self-unloading |
| Driver’s cab: | Medium-length flat top |
| Cab width: | 2490mm |
| Passenger capacity: | 2 people |
| Fuel tank material: | Aluminum alloy |
| Fuel tank capacity: | 400L |
| Front axle allowable load: | 7000kg |
| Rear axle description: | 16TMAN |
| Rear axle allowable load: | 18000(Two-axis assembly)kg |
| Speed ratio: | 5.262 |
| Number of leaf springs: | 10/12 |
| Tire specifications: | 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR |
| Number of tires: | 10 |
