Model – SX33186V306C
Engine – WP12.430E201
Horsepower – 430HP
Wheelbase (mm) – 1800+2975+1400
Model – SX33186V306C
Engine – WP12.430E201
Horsepower – 430HP
Wheelbase (mm) – 1800+2975+1400

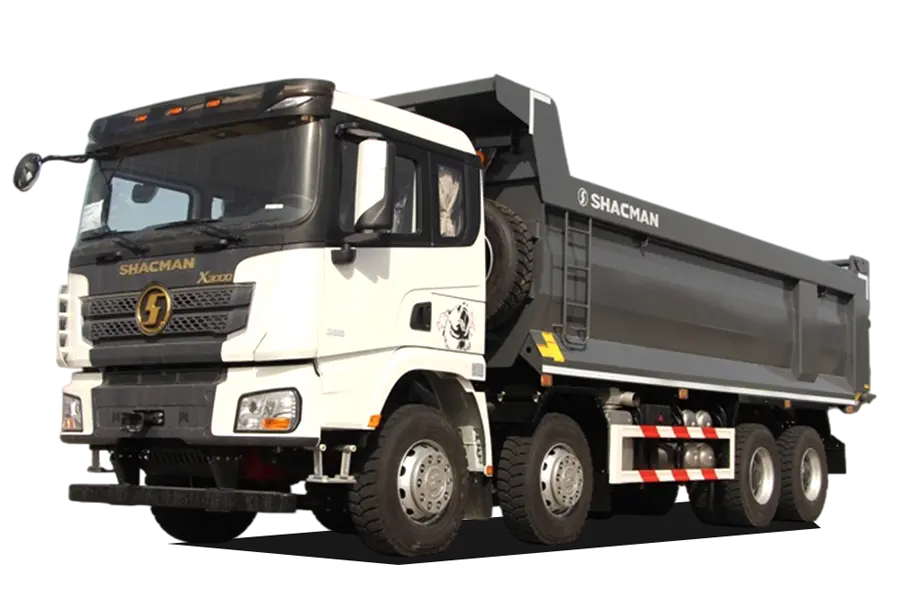

The Shacman X3000 Dump Truck is a heavy-duty vehicle designed to meet the demanding requirements of mining, construction, and large-scale infrastructure projects. It is equipped with a powerful engine and advanced transmission system to ensure efficient and reliable performance in various operating conditions.
Powertrain:
Engine: Weichai WP12 series turbocharged diesel engine delivering 400 HP power output
Transmission: Manual transmission system
Emission Standard: Euro 2, Euro 3, or Euro 6 compliant with advanced exhaust treatment systems
Performance: Powerful engine with sufficient torque for heavy-load operation on steep gradients
Drive Type: 6×4 or 8×4 configuration for optimal traction and load distribution
Payload Capacity: 31-50 tons with a gross vehicle weight suitable for heavy-duty operations
Cargo Box: Available in lengths from 5.3m to 8m with heaped capacity up to 38 cubic meters
Fuel Tank: Large-capacity fuel tank for extended operation between refueling stops
Fuel Efficiency: Advanced engine design optimizing fuel consumption without sacrificing performance
| SHACMAN X3000 DUMP TRUCK | |
| Edition | Super edition |
| Vehicle model | SX33186V306C |
| Drive | 8X4 |
| Wheelbase (mm) | 1800+2975+1400 |
| Suspension | Multi leaf springs |
| Engine | WP12.430E201 |
| Horsepower | 430HP |
| Emission standard | Euro Ⅱ |
| Displacement | 10.8L |
| Rated output | 309kW |
| Max.torque | 2000N.m |
| Transmission | 12JSD200TA-B-QH50+FHB400 |
| Clutch | 430 |
| Frame | 850×300（8+7+8） |
| Front axle | MAN 9.5T |
| Rear axle | 16T MAN two-stage widened bridge 4.769 |
| Tire | 12.00R24 |
| Fuel | Diesel |
| Fuel tank | 360L （Aluminum shell） |
| Battery | 180Ah |
| Inner dimension of loading space(mm) | 7300X2300X1500 |
| Material thickness of loading(mm) | Bottom12,Side10 |
| Lifting mode | Multistage front lifting hydraulic system |
| Cab | ◆Shacman X3000 mid-length flat-top cab does not have a roof shroud ◆Automated air conditioning ◆Four-point hydraulic mounting ◆Air cushioned drivers seat ◆Water tank protection grid ◆Electric window |
| Optional | 315/80R22.5 |
