Model – SX5315GJBJT306
Horsepower – 330HP- 500HP
Engine – WP10.336E53
Dimensions (L×W×H) – 10655x2500x3540mm
Model – SX5315GJBJT306
Horsepower – 330HP- 500HP
Engine – WP10.336E53
Dimensions (L×W×H) – 10655x2500x3540mm

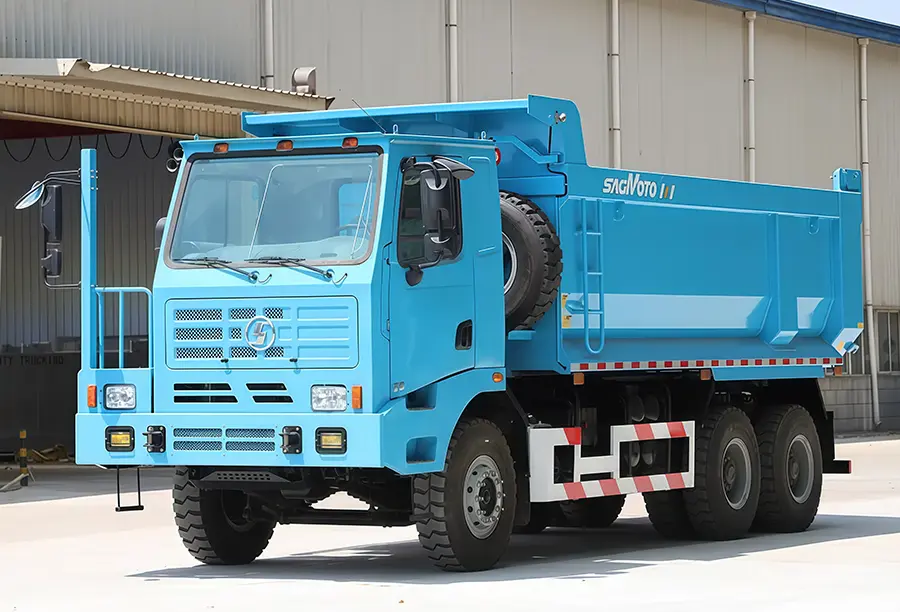

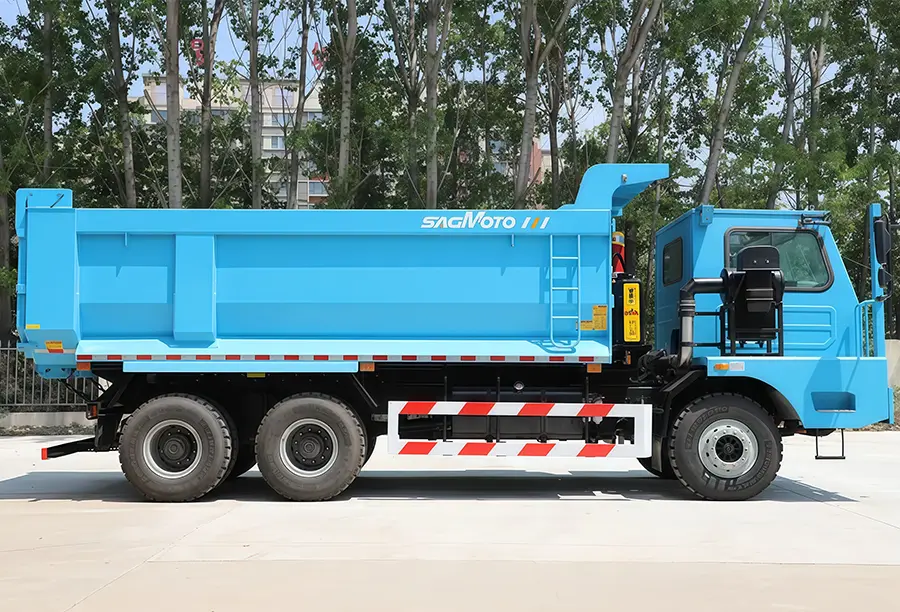

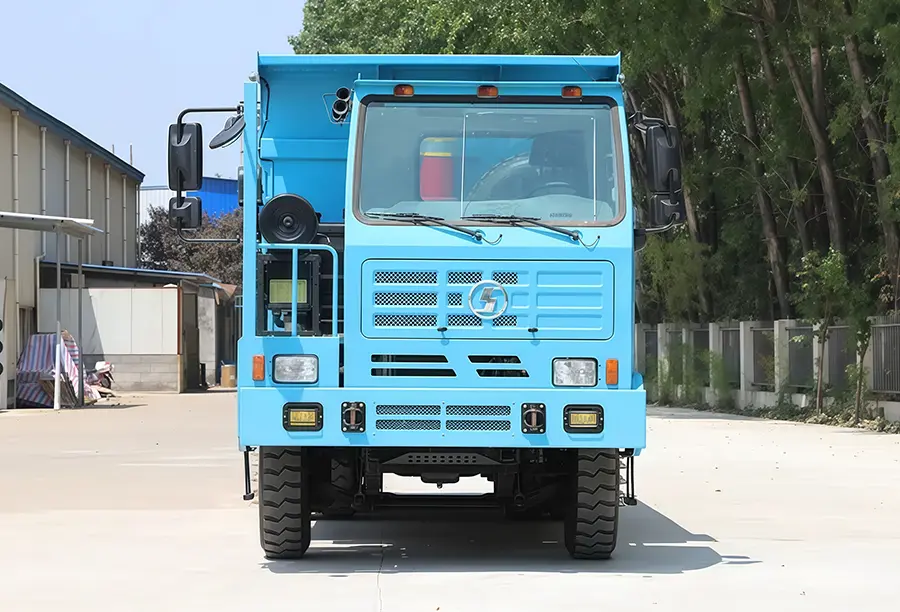

Shacman Offset Dump Mining Truck is a specialized heavy-duty vehicle engineered to meet the unique demands of narrow-vein mining, tunnel operations, and confined workspaces. With its innovative offset dumping design, this truck offers exceptional maneuverability and operational efficiency, making it an ideal choice for challenging mining environments.
Exceptional Maneuverability: The offset dumping design and compact dimensions of this mining truck make it highly maneuverable in narrow tunnels, tight working areas, and winding mine roads. It can easily navigate through obstacles and reach inaccessible areas, improving operational efficiency.
Precise Unloading: The offset dumping system allows for precise and controlled unloading of cargo, reducing the risk of material spillage and minimizing the need for additional cleanup. This feature is particularly beneficial in confined spaces where traditional rear-dump trucks may struggle to operate.
Drive Configuration: Available in 4×2 and 6×4 drive layouts, providing optimal traction and stability on uneven and slippery mining terrains.
Payload Capacity: Offers a payload capacity ranging from 20 to 40 tons, depending on the specific model, ensuring efficient transportation of ore, rock, and other mining materials.
Engine Options: Powered by high-performance Weichai or Cummins diesel engines, delivering horsepower ranging from 300 to 450 HP. These engines comply with Euro II, Euro III, and Euro V emission standards, catering to diverse environmental regulations.
Transmission: Equipped with reliable manual or automatic transmissions, such as FAST gearboxes, ensuring smooth shifting and optimal power distribution for enhanced operational efficiency.
Dumping System: Features an innovative offset dumping system, allowing the cargo body to tilt to the side, enabling precise unloading in confined spaces. The hydraulic lifting system ensures quick and easy dumping of cargo, minimizing downtime.
Cargo Body: The durable cargo body is made of high-strength, wear-resistant steel, capable of withstanding the abrasive nature of mining materials. It is designed for efficient loading and unloading, with a capacity ranging from 10 to 25 cubic meters.
| SHACMAN OFFSET DUMP MINING TRUCK | |
| Type of vehicle | STL380 |
| Drive | 6×4 |
| Curb weight(kg) | 29000 |
| Ratedtotalweight(kg) | 89000 |
| Design of outside dimension(mm) | 8970x3504x4250/8970x3504x4270 |
| Maximum speed(Km/h) | 40/51 |
| Minimum ground clearance(mm) | 330 |
| Maximum grade ability(%) | ≥40 |
| Wheelbase(mm) | 3850+1560 |
| Cab | Offset mining cab |
| Engine type | QSM11(C420 30)QSM11(C420 30) WP12G430E310 |
| (N.m/rpm)Maximumtorque/speed(N.m/rpm) | 1898/1400 1100/1500 |
| Emission standard | Three-stage |
| Transmission | Fast7SD220 |
| Front axle | Hand/PX20T/19T |
| Rear axles | Hand/PX 35T x2 |
| Frame(mm) | Duallayer(10mm+10mm) |
| Capacityoffueltank(L) | 450L Aluminium alloy |
| Tire | 14.00-25 |
| Inner dimension of loading space(mm) | 5800x3200x1800 |
| Material thickness of loading(mm) | Bottom16,Side12, |
| Lifting mode | Multistage front lifting hydraulic system |
