Model – SX4253G3M42J3240
Power – 430HP / 460HP / 480HP
Engine – Cummins 30ISM11E5 440
Overall dimension (mm) – 10800X2550x3920mm
Model – SX4253G3M42J3240
Power – 430HP / 460HP / 480HP
Engine – Cummins 30ISM11E5 440
Overall dimension (mm) – 10800X2550x3920mm

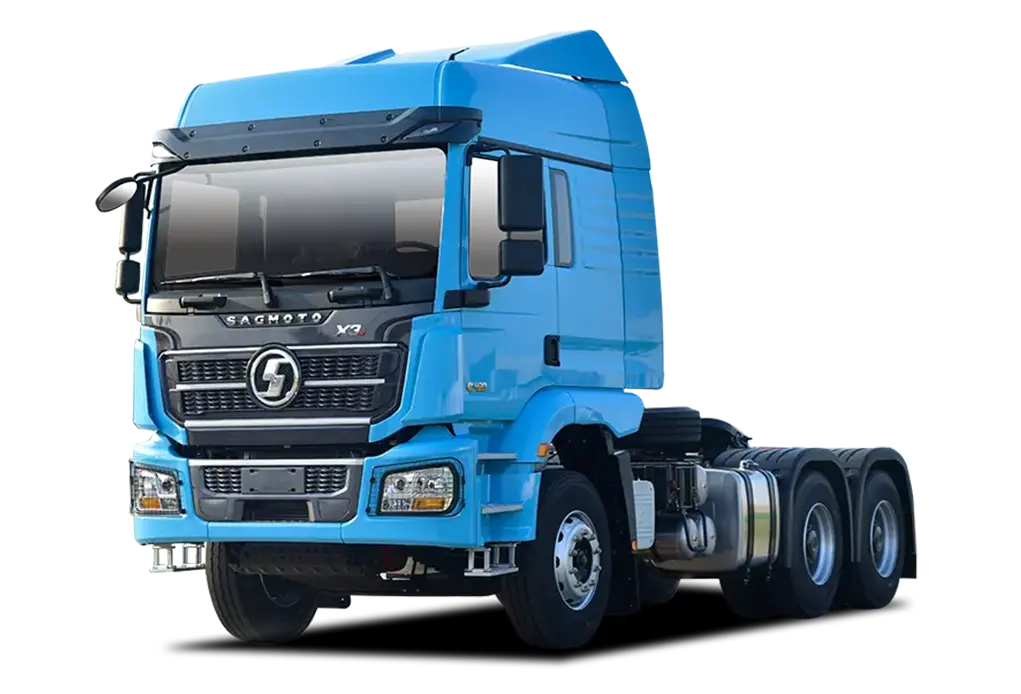

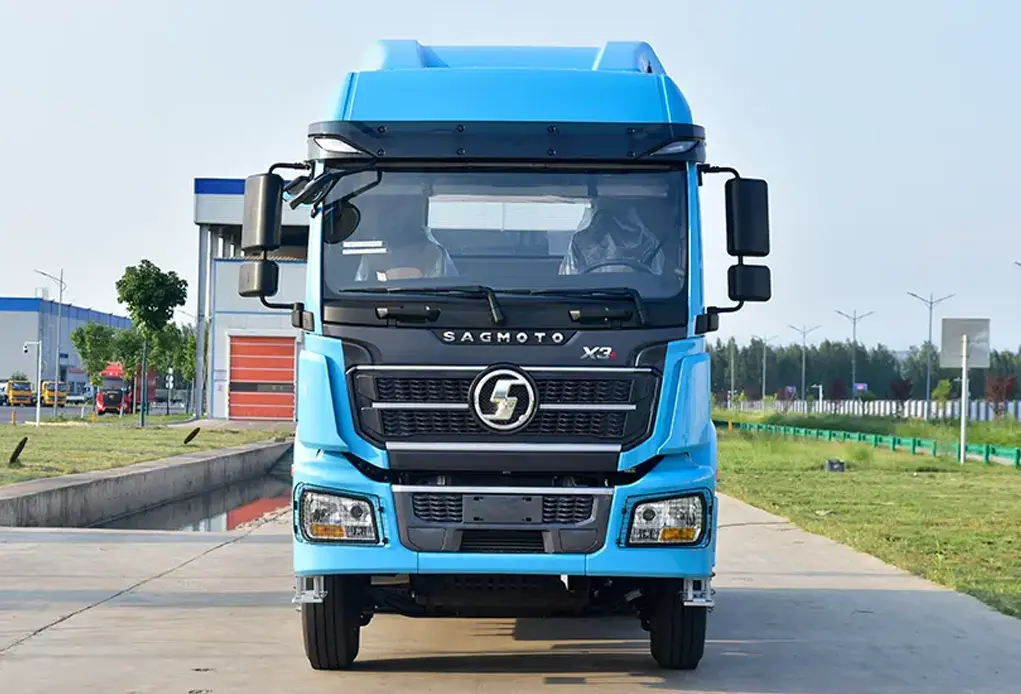

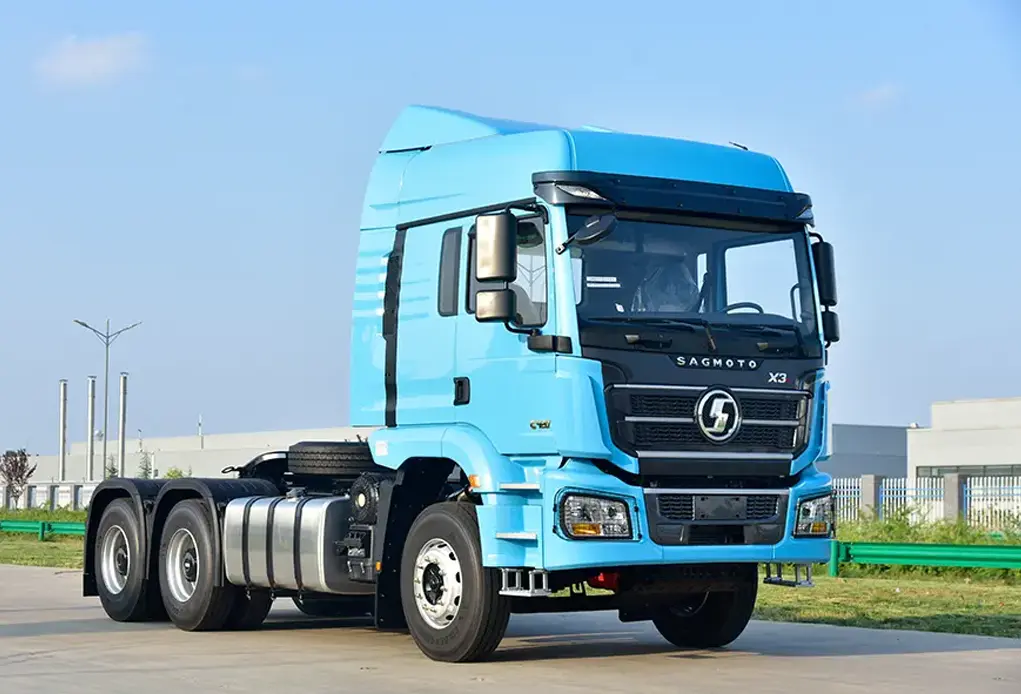

The Shacman X3s 6×4 Tractor Head is now available with upgraded powertrain options including 430HP, 460HP, and 480HP configurations, designed to meet the diverse requirements of heavy-duty transportation in Zimbabwe and across Africa. These higher horsepower models deliver exceptional performance, durability, and efficiency for demanding operations in challenging environments.
Engine: Cummins/Weichai Euro 3 diesel engine delivering 430 HP (316 kW) power output
Transmission: FAST 12JSD200T-B 12-speed manual transmission system
Performance: Maximum torque of 1800 Nm for strong pulling power and reliable operation on steep gradients
Payload Capacity: 40-60 tons with a gross combination weight of up to 60 tons
Engine: Cummins/Weichai Euro 3 diesel engine delivering 460 HP (343 kW) power output
Transmission: FAST 12JSD220T-B 12-speed manual transmission system
Performance: Maximum torque of 1900 Nm for enhanced performance in heavy-load and steep-gradient conditions
Payload Capacity: 40-65 tons with a gross combination weight of up to 65 tons
Engine: Cummins/Weichai Euro 3 diesel engine delivering 480 HP (358 kW) power output
Transmission: FAST 12JSD240T-B 12-speed manual transmission system
Performance: Maximum torque of 2000 Nm for exceptional pulling power and performance in extreme operating conditions
Payload Capacity: 45-70 tons with a gross combination weight of up to 70 tons
| SHACMAN X3S TRUCKS FOR SALE IN ZIMBABWE | |
| BASIC VEHICLE INFORMATION | |
| Model | SX4253G3M42J3240 |
| Vehicle Type | 6×4 Tractor Head (Semi-trailer Tractor) |
| Product Series | SHACMAN X3000 |
| Drive Type | 6×4 |
| Curb Weight | 8,400 – 8,850 kg (lightweight / standard version) |
| Gross Vehicle Weight (GVW) | 25,000 kg |
| Max Towed Trailer Mass | 39,500 – 40,000 kg |
| Wheelbase | 3,200 + 1,400 mm |
| Overall Dimension (L×W×H) | 6,825 × 2,490 × 3,750 mm |
| Maximum Speed | 90 – 110 km/h (speed limiter configurable) |
| POWERTRAIN | |
| Engine | Weichai WP12 / WP13 Series |
| Engine Power | 430HP / 460HP / 480HP (optional) |
| Emission Standard | Euro II – Euro VI (optional) |
| Transmission | Fast 12JSD Series, 12-speed Manual |
| Retarder | Hydraulic retarder (optional) |
| Clutch | φ430 Diaphragm Spring Clutch |
| Drive Shaft | Heavy-duty universal drive shaft |
| AXLES & CHASSIS | |
| Front Axle | Hande 7.5T Steering Axle |
| Rear Axle | Hande 16T Double-reduction Axle (Dual Stage) |
| Final Drive Ratio | 3.7 / 4.11 / 4.44 (optional) |
| Tire Specification | 315/80R22.5 Tubeless; 12.00R20 Radial (optional) |
| Chassis Frame | 850×300 mm Double-layer High-strength Steel Beam (8+7) |
| Suspension | Front/Rear Multi-leaf Steel Spring; Air suspension (optional) |
| Fuel Tank | 600L Aluminum Alloy Single Tank; 800L Dual Tank (optional) |
| Air Intake System | Heavy-duty Air Filter; Desert Air Filter (optional) |
| CABIN & INTERIOR | |
| Cabin Type | X3000 High-roof Double Sleeper; Flat-top (optional) |
| Driver Seat | Air-cushion Shock-absorbing Seat |
| Passenger Seat | Fixed seat; Air-cushion version (optional) |
| Standard Equipment | Power Windows, Central Locking, Thermostatic AC, Multi-function Steering Wheel, Cruise Control |
| Color Options | Pearl White, Engineering Yellow, China Red, Obsidian Black, etc. (customizable) |
| OPTIONAL FEATURES | |
| PTO | Power Take-Off (optional) |
| Steering Configuration | Left-hand Drive (LHD) / Right-hand Drive (RHD) (optional) |
| Spare Tire Carrier | Available (optional) |
| Water Sprinkler System | Available (optional) |
| Fuel Water Heater | Available (optional) |
