Model – SX32556T404
Horsepower – 279KW/380HP
Engine – WP10.380E22
Dimensions – 5800*2300*1700（mm）
Model – SX32556T404
Horsepower – 279KW/380HP
Engine – WP10.380E22
Dimensions – 5800*2300*1700（mm）

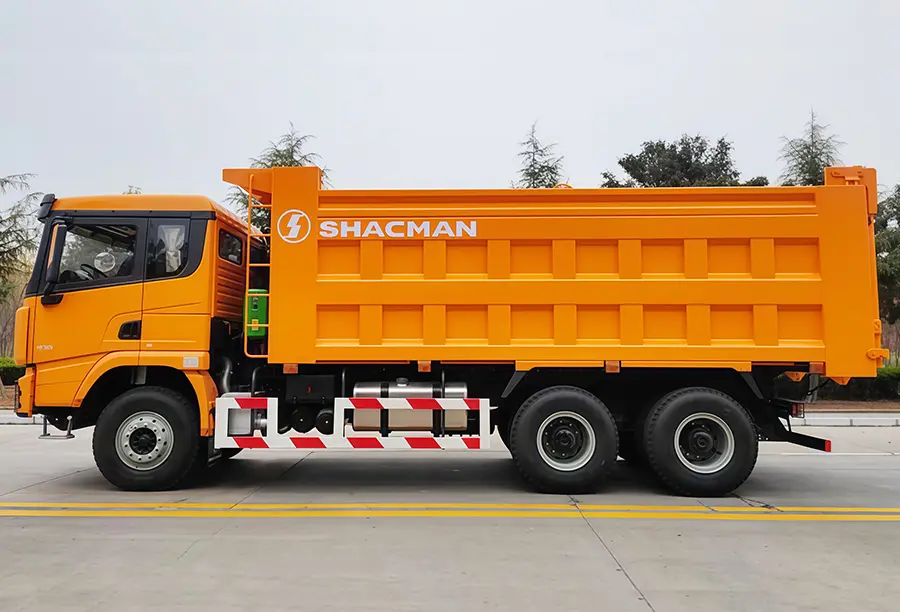

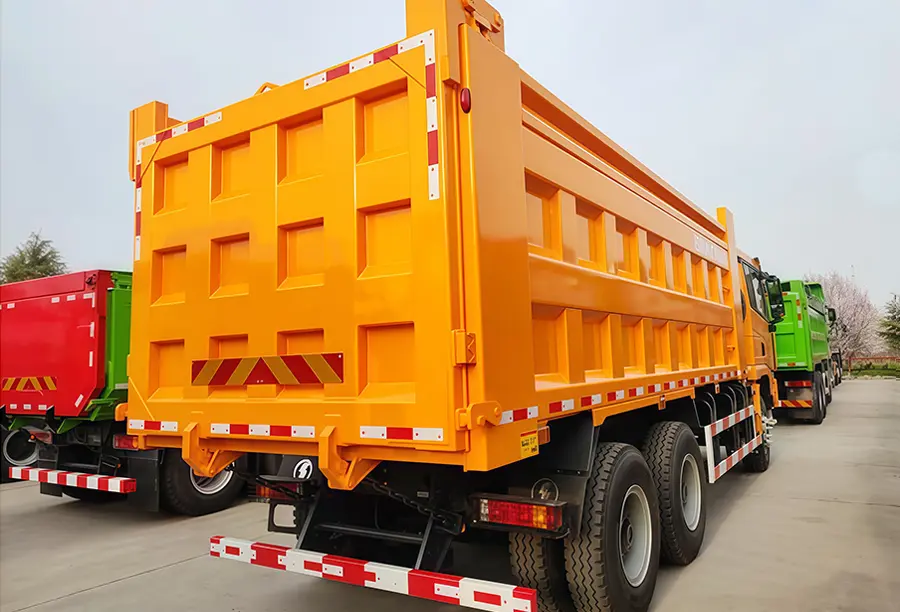

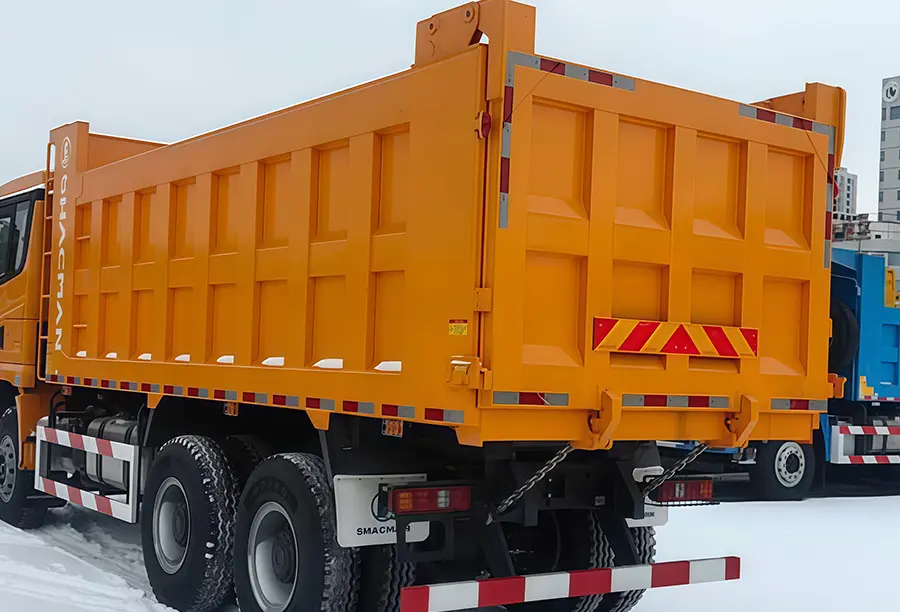

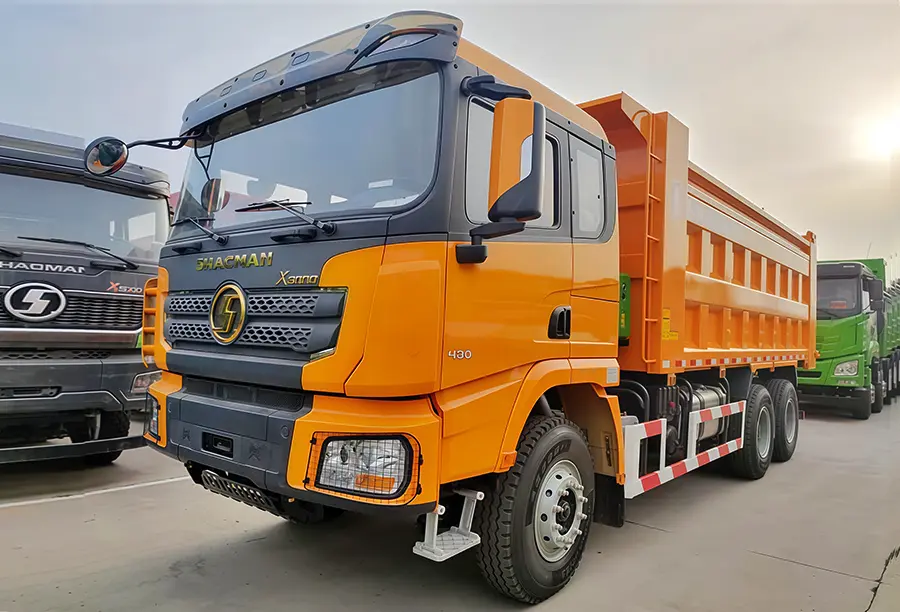

The Shacman X3000 6×4 Dump Truck, equipped with a durable square bucket body, is a robust and reliable heavy-duty transport solution, engineered to deliver exceptional productivity in mining, construction, and bulk material handling operations. Combining power, durability, and efficient design, it meets the demands of severe working conditions with proven performance and lower total cost of ownership.
Powerful Powertrain
Powered by a high-performance, fuel-efficient diesel engine (typically Weichai WP series), delivering strong torque and reliable power for steep gradients and heavy payloads.
Paired with a robust manual transmission and heavy-duty drive axle for smooth power transmission and excellent terrain adaptability.
Square Bucket Design
The square bucket body offers maximized load capacity and efficient material retention, ensuring high-volume transport of bulk materials such as sand, gravel, coal, and aggregates.
Designed with reinforced steel construction for enhanced durability and resistance to impact and abrasion in rugged environments.
Strong Chassis & Tipping System
Built on a reinforced 6×4 chassis, providing superior structural strength and load-bearing stability.
Equipped with a fast and reliable hydraulic tipping system, enabling efficient and controlled unloading with minimal downtime.
| SHACMAN X3000 6X4 DUMP TRUCK SQUARE BUCKET | ||
| MODEL | SX32556T404 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3975+1400 | |
| Max. Speed/(km/h) | 75km/h | |
|
Engine
|
Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
| Rated output power/（PS） | 279KW/380HP | |
| Displacement(L) | 9.726L | |
|
Transmission
|
Brand | FAST |
| Model | 12JSD200T-B–QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio: 5.92 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300(8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 400L Aluminum alloy | |
| Tire | 12.00R20 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin |
X3000 medium length flat top cab without top air deflector, air main seat, four point hydraulic suspension, electric heated rearview mirror, electronic automatic temperature control air conditioning, electric window shaking machine, manual flipping, metal bumper, three-level boarding pedal, central locking, oil bath air filter, ordinary exhaust, water tank protection grille, tail light protection grille, 165Ah maintenance free battery, SHACMAN logo, all Russian logo, front headlight protection grille, iron air storage cylinder, stainless steel wheel rim decoration cover, reverse buzzer, 2kg fire extinguisher, parking wedge, telescopic shaft control, daytime running lights |
|
| Upbody | 5800*2300*1700（mm） Bottom 8 sides 6 | |
* Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
