Model – SX33156T366
Transmission – 10JSD180+QH50
Engine – WP10.380E22
Dimensions – 1800+3575+1400mm
Model – SX33156T366
Transmission – 10JSD180+QH50
Engine – WP10.380E22
Dimensions – 1800+3575+1400mm

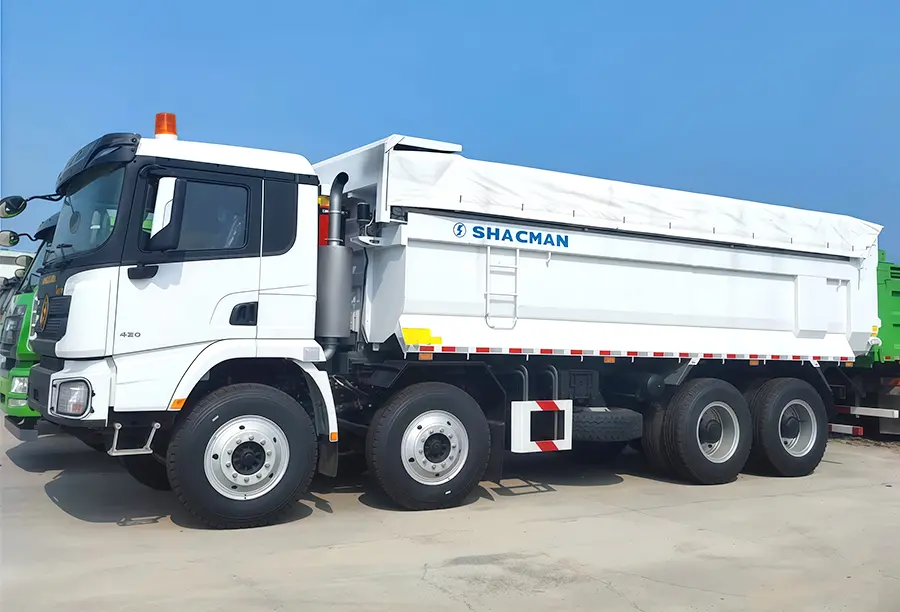

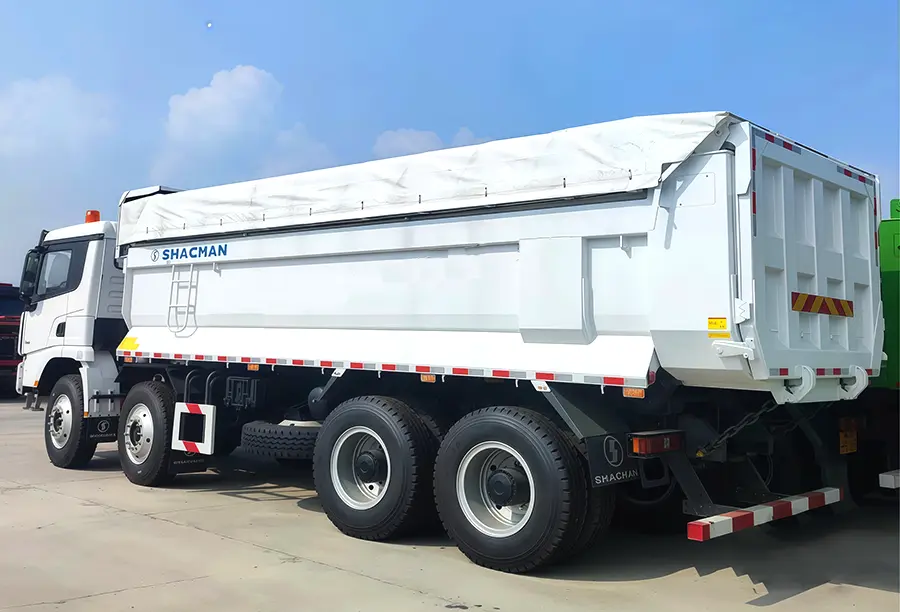

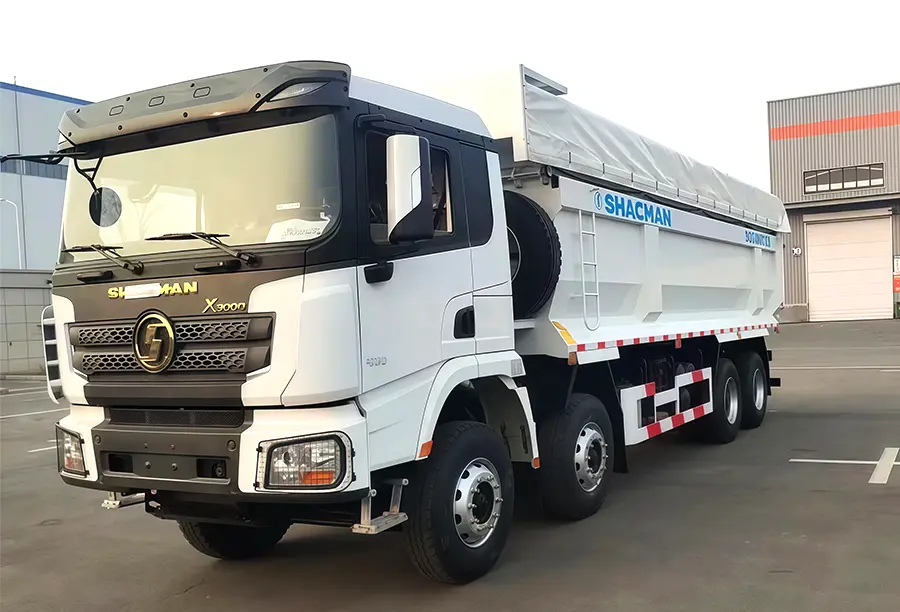

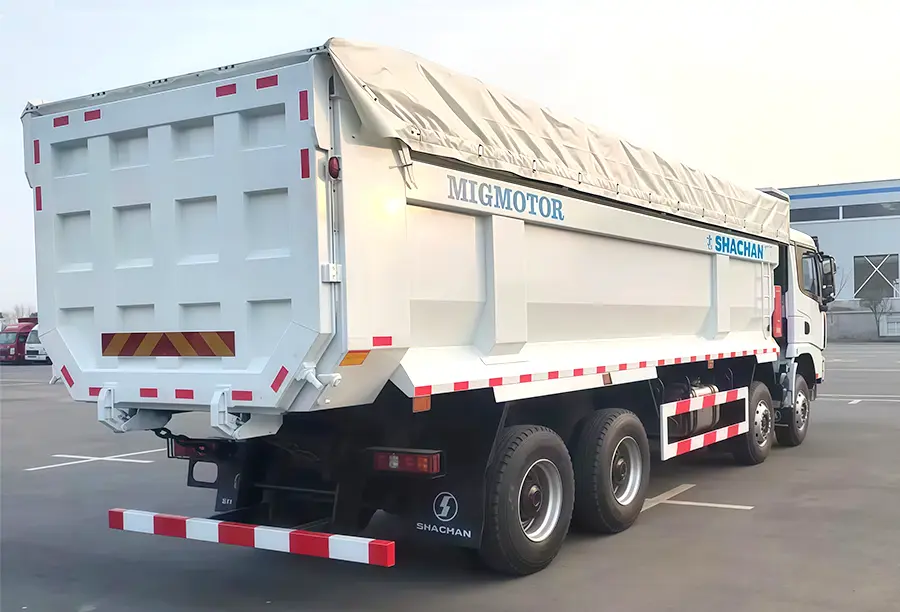

The Shacman X3000 8×4 Dump Truck, equipped with a durable tarpaulin cover, represents the perfect fusion of rugged power, operational efficiency, and environmental adaptability. Designed for the toughest construction, mining, and bulk material transport applications, this truck ensures reliable performance while complying with stringent operational standards.
Powerful & Efficient Powertrain:
Equipped with a high-torque, fuel-efficient diesel engine (commonly Weichai WP series), delivering exceptional pulling power and gradeability under full-load conditions.
Matched with a robust manual transmission and a reliable high-strength drive axle, ensuring smooth power delivery and outstanding durability in challenging terrains.
Robust Chassis & Dump Mechanism:
Built on a reinforced 8×4 chassis frame, offering superior load-bearing capacity and structural integrity for heavy payloads.
Features a fast, stable, and powerful hydraulic dump system (tipper body), enabling quick and safe unloading of various materials like sand, gravel, coal, and ore.
Durable Tarpaulin Cover:
The fitted tarpaulin (canvas cover) is made from high-strength, waterproof, and UV-resistant material, effectively protecting the cargo from weather elements (rain, sun, dust) during transit.
Ensures compliance with regulations regarding load covering, preventing spillage and dust pollution, making it ideal for urban construction sites and environmental-sensitive areas.
| SHACMAN X3000 8X4 DUMP TRUCK WITH TARPAULIN |
||
| Model | SX33156T366 | |
| Drive type | 8×4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Power/(kw/HP) | 279kw / 380Hp | |
| Maximum torque / (N.M)/rpm | 1600 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | EuroII | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 180Ah Maintenance-free battery | |
| Cab | Type | SHACMAN X3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |
