Model – SX3255DR384
Power 440 – 340HP
Engine – WEICHAI WP10.340E32
Overall dimension (mm) – 3775+1400
Model – SX3255DR384
Power 440 – 340HP
Engine – WEICHAI WP10.340E32
Overall dimension (mm) – 3775+1400

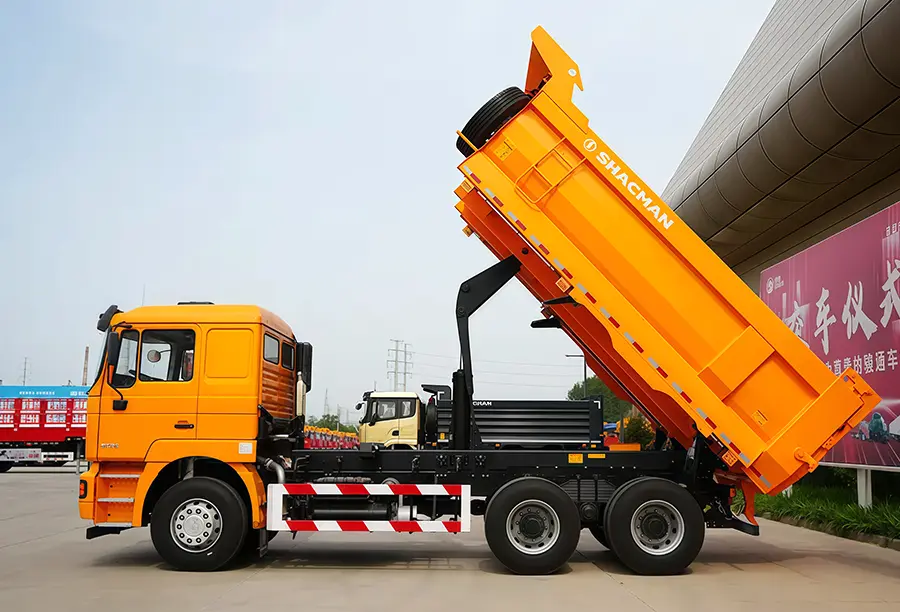

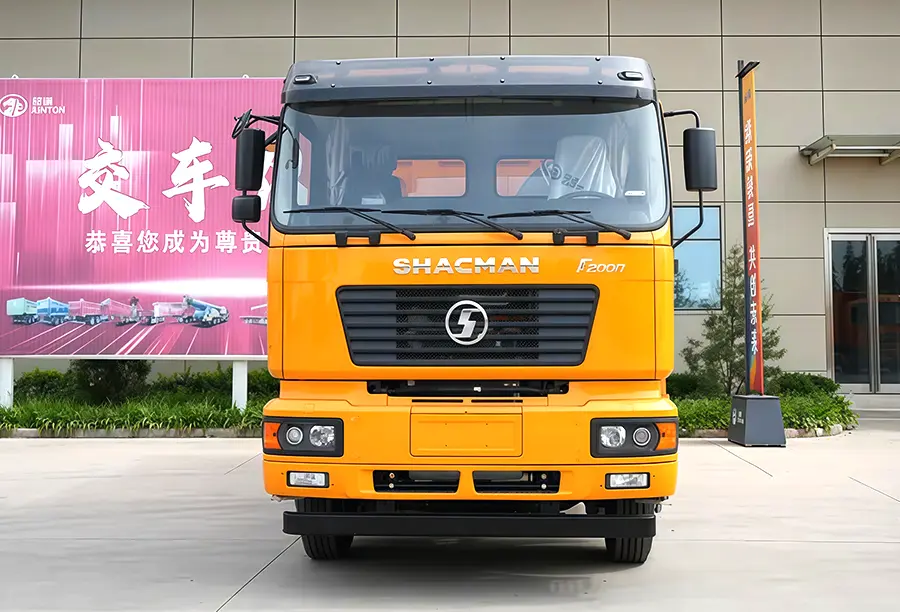

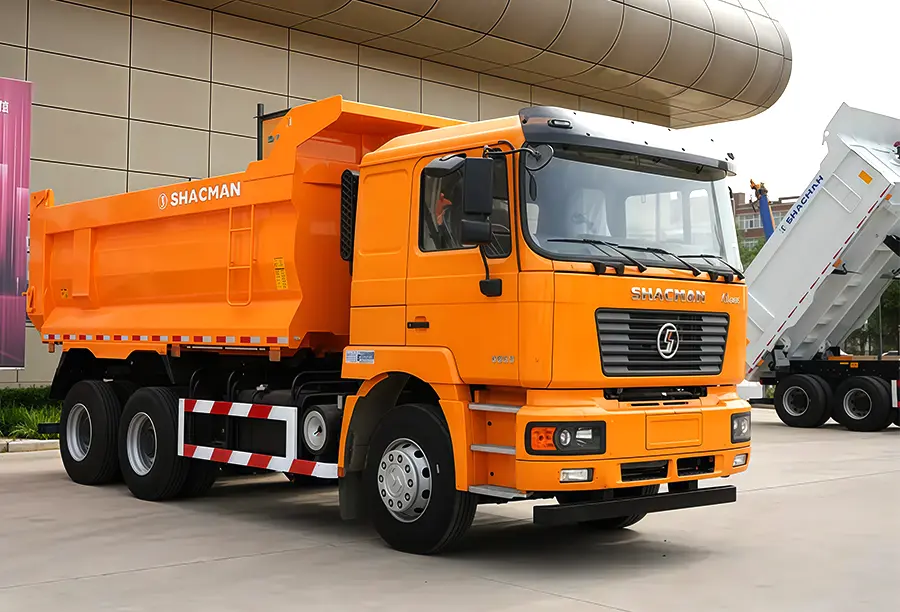

The SHACMAN F2000 6×4 Dump Truck is a cost-effective heavy-duty vehicle designed for medium-load material transport in construction, mining, and infrastructure projects. As a proven model in SHACMAN’s legacy lineup, it balances robust performance, easy maintenance, and adaptability to diverse operating conditions. Targeting emerging markets in Southeast Asia, Africa, and Latin America, it delivers a payload capacity of 20–30 tons, making it a practical choice for small-to-medium fleets and budget-conscious operators.
Mature Powertrain:
The F2000 is equipped with a Weichai diesel engine (290-380 hp) and a FAST manual transmission, providing reliable torque even on steep inclines and under heavy loads. The engine’s low-maintenance design reduces downtime, crucial for construction sites in remote areas.
Rugged Chassis and Cargo Box:
A reinforced steel frame and a U-shaped cargo box (high strength) can withstand frequent loading and unloading cycles. Optional forward-tilting or mid-tilting hydraulic systems ensure efficient material unloading with a cycle time of approximately 35 seconds.
Adaptable to Basic Road Conditions:
Off-road Performance: Heavy-duty axles (front: 7 tons, rear: 13 tons x 2) and leaf spring suspension handle rough terrain, while 12.00R20 tires provide stable grip on muddy or gravel surfaces.
Easy Operation: A spacious cab equipped with basic amenities (manual air conditioning, adjustable steering wheel) is suitable for extended operation in non-extreme weather conditions.
| SHACMAN F2000 6X4 DUMP TRUCK | ||
| Model | SX3255DR384 | |
| Driving Type | 6×4 | |
| Wheelbase (mm) | 3775+1400 | |
| Curb weight (kg) | 12370 | |
| Gross weight (kg) | 25000 | |
| Overall Dimension (mm) | L | 8495 |
| W | 2500 | |
| H | 3450 | |
| Max. Speed (km/h) | 78 | |
| Engine model | WEICHAI WP10.340E32 | |
| Rate power | 340HP | |
| Emission Standard | EURO II | |
| Engine displacement(L) | 9.726 | |
| Quantity of axle | 3 | |
| Gearbox | US Eaton Fuller technology, FAST,9JS135T-B, 9 forward gears, 1 reverse gear, with synchronizer | |
| Tire | 12.00R20 | |
| Fuel tank capacity(L) | 400L, Aluminum | |
| Cab | German MAN technology, F2000 D Cabin, one sleeper,hydraulic seat for driver, electric window glass lifter, with A/C, hydraulic cabin suspension | |
| Front axle | German MAN technology, HANDE, MAN 7.5T front axle | |
| Rear axle | German MAN technology, HANDE, STR 16T rear axle, Hub Reduction, ratio 5.73 | |
| Fuel kind | DIESEL | |
| Other Equipments | Manual cab tilting, Aluminum reservoir, 165Ah free-maintenance battery, desert air filter | |
| Body | Dump box,5600x2300x1500 mm, bottom 10mm side 8mm, HYVA 137 front lifting hydraulic cylinder | |
| QUALITY | 100PCT BRAND NEW. PRODUCED IN 2018 | |
| CIF,SHV port price（USD） | 26,000-30,000 | |
