Model – SX3258DR404TL
Power – 380hp
Engine – WP12NG380E51
Wheelbase: – 3775+1400mm
Model – SX3258DR404TL
Power – 380hp
Engine – WP12NG380E51
Wheelbase: – 3775+1400mm

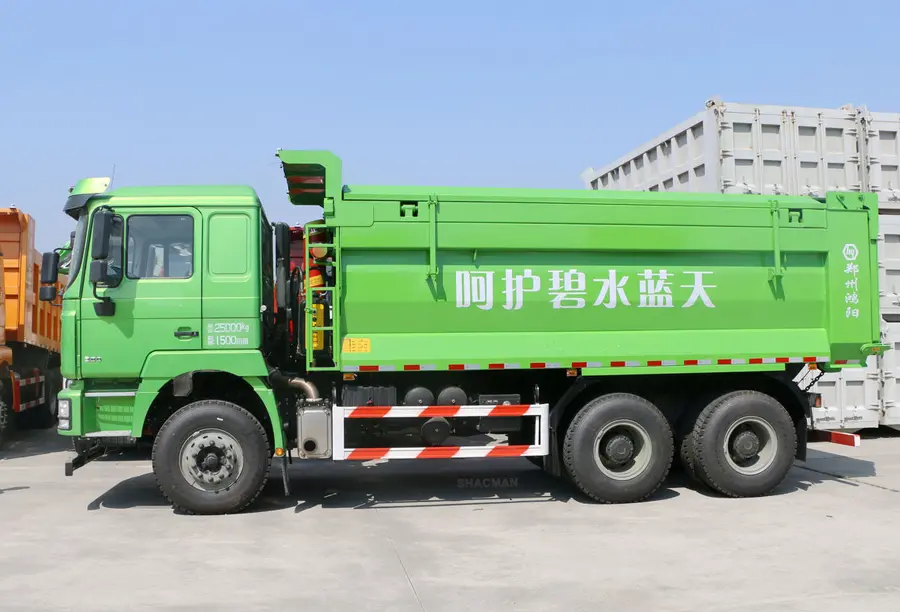

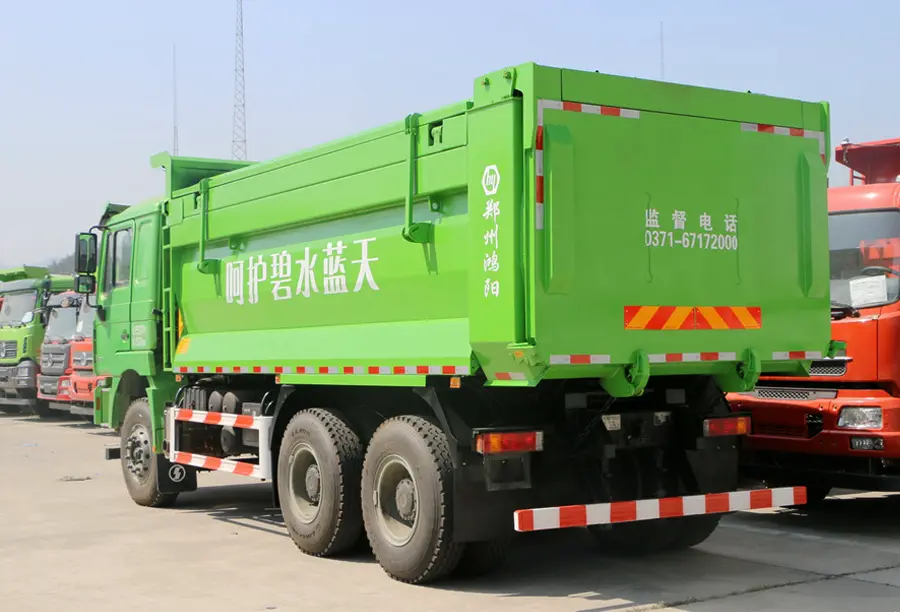

The Shacman F3000 8×4 LNG Tipper Truck is an advanced heavy-duty vehicle designed to meet the demanding requirements of construction, mining, and infrastructure projects while providing a cleaner alternative to traditional diesel-powered dump trucks. Built on the proven F3000 platform, this LNG-powered model combines exceptional power, durability, and environmental performance to deliver reliable operation in the toughest working conditions.
Engine: Weichai WP12.400E201 LNG engine delivering 400 HP (294 kW) power output
Fuel Tank: High-pressure LNG storage tank with 400-500L capacity
Emissions: Euro 2/3 emission standards compliance with significantly lower CO2, NOx, and particulate emissions compared to diesel
Performance: Maximum torque of 1,900 Nm for strong pulling power and heavy-load operationWheelbase: Customizable to suit different body lengths
Overall Size: 8214mm × 2496mm × 3386mm (typical configuration)
Payload Capacity: 31-40 tons with a gross vehicle weight of up to 60 tons
Cargo Box Length: 5.3-6.2m with heaped capacity up to 38 cubic meters
Transmission & Drivetrain:
Transmission: FAST 8DS240A manual transmission with 10 forward gears
Drivetrain: 8×4 drive configuration with reinforced axles for optimal traction and load distribution
Suspension: Heavy-duty leaf spring suspension system for enhanced durability and load handling
LNG System Integration:
Advanced LNG fuel system with cryogenic storage tank and vaporizer for efficient fuel delivery
Intelligent engine management system optimizing LNG combustion for maximum efficiency and reduced emissions
Safety features including pressure relief valves and automatic shut-off systems for LNG storage and delivery
| SHACMAN LNG F3000 8X4 TIPPER TRUCK | |
| Model: | SX3258DR404TL |
| Wheelbase: | 3775+1400mm |
| Engine: | Weichai WP12NG380E51 |
| Gearbox: | Fast 12JSD180T |
| Rear axle ratio: | 5.92 |
| Body length: | 8.75 metres |
| Body width: | 2.49 metres |
| Body height: | 3.45 metres |
| Front track width: | 2036 mm |
| Rear track width: | 1860/1860 mm |
| Gross vehicle weight: | 12.5 tonnes |
| Rated load capacity: | 12.37 tonnes |
| Gross vehicle weight: | 25 tonnes |
| Fuel type: | Liquefied Natural Gas (LNG) |
| Engine model: | Weichai WP12NG380E51 |
| Number of cylinders: | 6-cylinder |
| Fuel type: | Liquefied Natural Gas (LNG) |
| Displacement: | 11.596 L |
| Maximum horsepower: | 380 horsepower |
| Maximum power output: | 280 kW |
| Maximum Torque: | 1700 N·m |
| Maximum Torque RPM: | 1,200–1,500 rpm |
| Rated RPM: | 1,900 rpm |
| Engine Configuration: | Single-point injection + oxidation catalyst |
| Gearbox Model: | Fast 12JSD180T |
| Cab: | Medium-long flat-top cab |
| Permissible Front Axle Load: | 7,000 kg |
| Rear Axle Description: | 16-tonne MAN two-stage cast axle |
| Permissible Rear Axle Load: | 18,000 kg (second axle group) |
| Gear Ratio: | 5.92 |
| Tyre Size: | 12.00R20 16PR |
| Number of Tyres: | 10 |
| Tyre Type: | All-steel radial tyres |
