Model – SX3255PT404
Horsepower – YC6K400-33
Engine – WP10.336E53
Dimensions (L×W×H) – 8760×3255×3950
Model – SX3255PT404
Horsepower – YC6K400-33
Engine – WP10.336E53
Dimensions (L×W×H) – 8760×3255×3950
Shacman Offset Dump Mining Truck is a specialized heavy-duty vehicle engineered to meet the unique demands of narrow-vein mining, tunnel operations, and confined workspaces. With its innovative offset dumping design, this truck offers exceptional maneuverability and operational efficiency, making it an ideal choice for challenging mining environments.
Exceptional Maneuverability: The offset dumping design and compact dimensions of this mining truck make it highly maneuverable in narrow tunnels, tight working areas, and winding mine roads. It can easily navigate through obstacles and reach inaccessible areas, improving operational efficiency.
Precise Unloading: The offset dumping system allows for precise and controlled unloading of cargo, reducing the risk of material spillage and minimizing the need for additional cleanup. This feature is particularly beneficial in confined spaces where traditional rear-dump trucks may struggle to operate.
Drive Configuration: Available in 4×2 and 6×4 drive layouts, providing optimal traction and stability on uneven and slippery mining terrains.
Payload Capacity: Offers a payload capacity ranging from 20 to 40 tons, depending on the specific model, ensuring efficient transportation of ore, rock, and other mining materials.
Engine Options: Powered by high-performance Weichai or Cummins diesel engines, delivering horsepower ranging from 300 to 450 HP. These engines comply with Euro II, Euro III, and Euro V emission standards, catering to diverse environmental regulations.
Transmission: Equipped with reliable manual or automatic transmissions, such as FAST gearboxes, ensuring smooth shifting and optimal power distribution for enhanced operational efficiency.
Dumping System: Features an innovative offset dumping system, allowing the cargo body to tilt to the side, enabling precise unloading in confined spaces. The hydraulic lifting system ensures quick and easy dumping of cargo, minimizing downtime.
Cargo Body: The durable cargo body is made of high-strength, wear-resistant steel, capable of withstanding the abrasive nature of mining materials. It is designed for efficient loading and unloading, with a capacity ranging from 10 to 25 cubic meters.

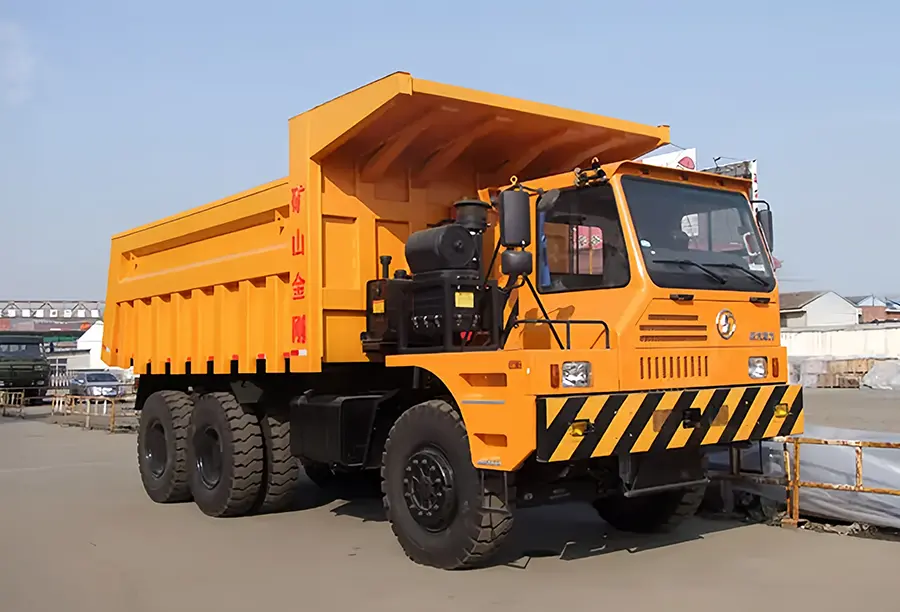

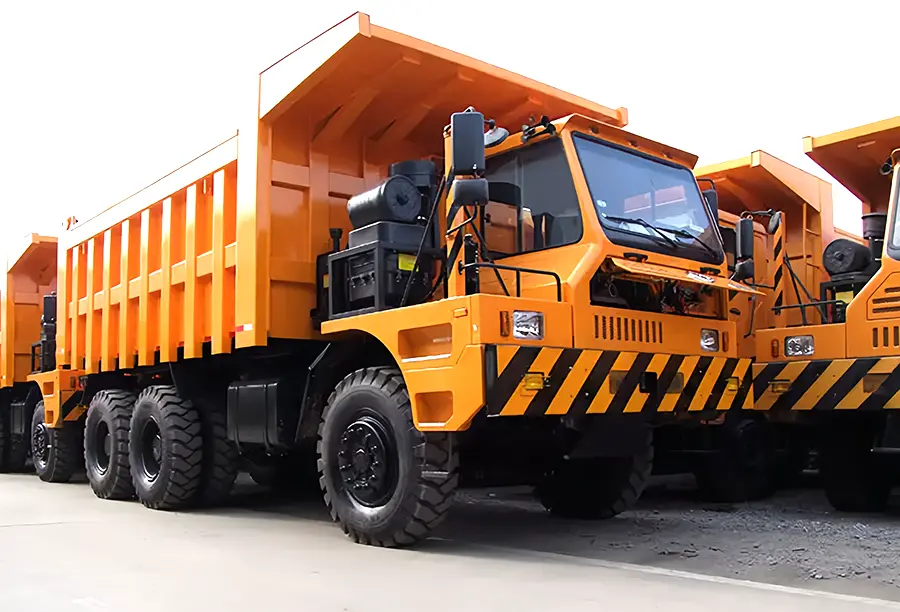

| SHACMAN LARGE MINING TRUCK | |
| Vehicle model Drive | SX3255PT404 |
| Drive | 6×4 |
| GVW (kg) | 70000 |
| Dimensions(mm) | 8760x3255x3950 |
| Max speed(km/h) | 60 |
| Min. clearance of chassis (mm) | 314 |
| Min. turning radius (m) | ≤9 |
| Max.gradeability (%) | 30 |
| Wheelbase(mm) | 3975+1400 |
| Cabin | Offset cab, Mechanical-Hydraulic,A/C,Sliding window |

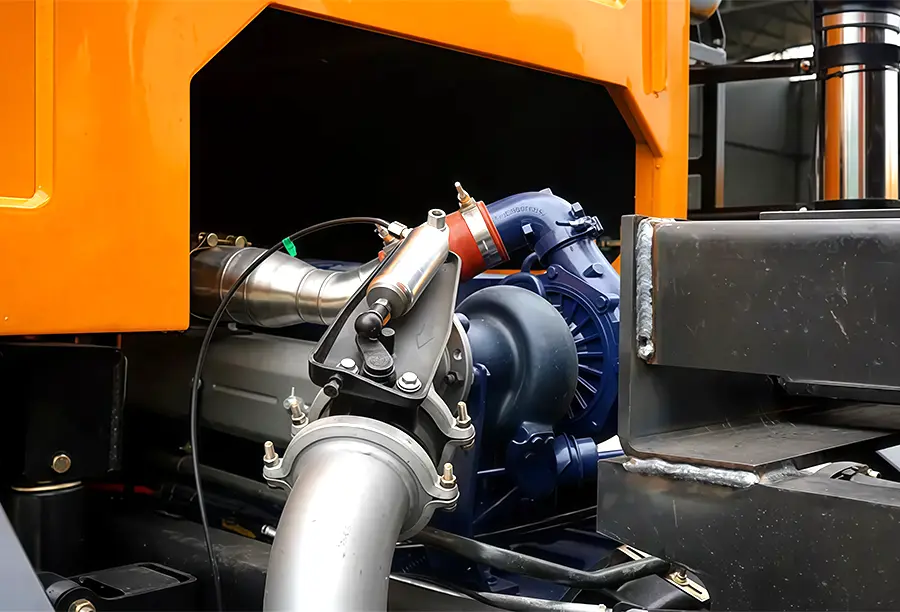

| Engine | YUCHAI YC6K400-33 |
| Transmission | FAST 10JSD180-QH50 |
| Front axle | MAN 9.5 T |
| Rear axle | 16T double reduction rear casting axle,ratio :6.733 |
| Frame | 850×320(8+7+8) |
| Suspension | Front and rear multi leaf spring set up, mining rear suspension, four main spring pieces + four riding bolts (front axle rear axle stabilizer bar) |
| Oil tank | 400L Iron |
| Tire | 12.00R20 |
| Cargo(mm) | 5800x2300x1600 |
| Container plate and thickness | Bottom 14 Sides 10, |
| Lifting form | FRONT-END CYLINDERS Multistage front lifting hydraulic system |
| Other | Metal bumper, flexible shaft gearbox operation, desert air filter,water box protector, steel air tank, 165Ah battery |
