Model – SX325862354C
Engine – CUMMINS
Horsepower – 385 HP
Dimensions – 8329*2490*3450
Model – SX325862354C
Engine – CUMMINS
Horsepower – 385 HP
Dimensions – 8329*2490*3450

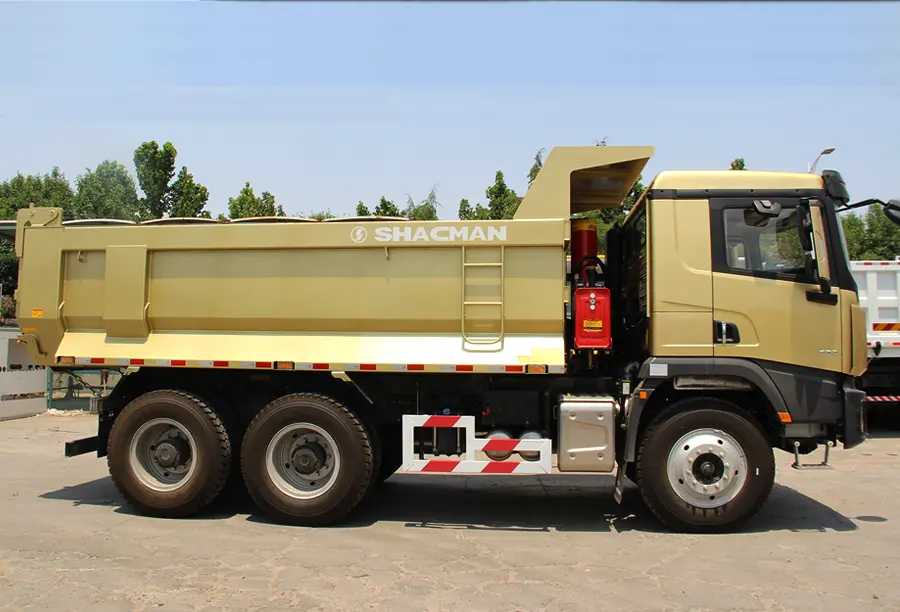

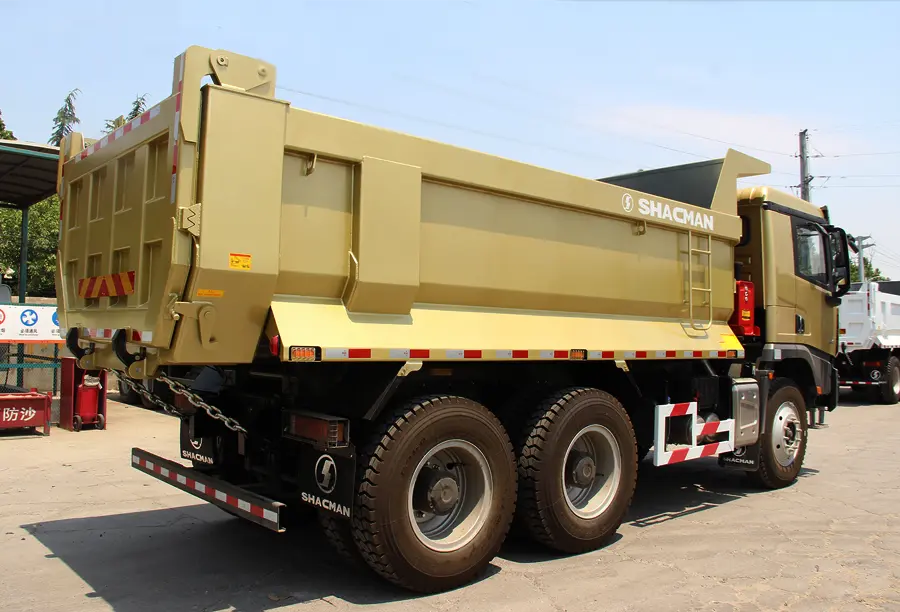

The Shacman X5000 SX325862354C is an advanced heavy-duty dump truck designed for high-performance operation in demanding construction, mining, and infrastructure projects. This model combines robust engineering with modern technology to deliver exceptional reliability, productivity, and operator comfort in extreme working conditions.
Powerful Engine Options: Equipped with Weichai WP12 series diesel engines ranging from 380HP to 450HP, providing massive torque output (2000-2500 Nm) for heavy-load transportation and superior climbing capabilities on steep gradients.
Advanced Transmission System: Features FAST 12-speed manual transmission with optimized gear ratios, ensuring smooth gear shifts and efficient power delivery tailored for heavy-duty operations.
Impressive Performance Metrics: Capable of reaching top speeds up to 86 km/h, with maximum gradeability of 30%, ensuring reliable performance in challenging terrain conditions.
6×4 Drive Configuration: Robust dual-reduction drive axles (2×16T) with optimized gear ratio, providing exceptional traction and stability for handling heavy payloads up to 60 tons.
Reinforced Structural Design: High-strength steel frame with heavy-duty leaf spring suspension system, ensuring durability and longevity under extreme load conditions.
Versatile Body Options: Customizable tipper body with cargo tank volume up to 19 m³, ideal for bulk material transportation in construction and mining operations.
Premium Cabin Experience: Spacious extended high roof cab with air-suspended driver’s seat, air conditioning system, and ergonomic controls for superior comfort during long working hours.
Advanced Convenience Features: Power windows, electrically adjustable side mirrors, multifunctional steering wheel, and manual cabin tilting mechanism for easy maintenance access.
Enhanced Safety Systems: Features dual-circuit compressed air brakes with spring-loaded parking brake and engine exhaust brake for reliable stopping power. Optional ABS system available for improved operational safety.
| SHACMAN X5000 DUMP TRUCK FOR SALE | |
| Model | SX325862354C |
| Drive type | 6×4 |
| Type | Dump truck |
| Complete kerb mass(kg) | 14,500 |
| Max.total mass (kg) | 50,000 |
| Max.speed (km/h) | 80 |
| Max.gradeability(%) | 33 |
| Max.length(mm) | 8,154 |
| Max.width(mm) | 2,490 |
| Max.height(mm) | 3,450 |
| Wheel base(mm) | 3,575+1,400 |
| Make | CUMMINS |
| Model | M13E5 520 |
| Rated output (kw/HP) | 382/520 |
| Max. torque(N.m/rpm) | 2,500/900-1,400 |
| Rated speed(rpm) | 1,800 |
| Displacement(mL) | 12,500 |
| Emission standard | E-Ⅴ |
| Type | 13JSDX240T |
| Control type | Manual |
| Gear Shift | 13 forwards and 2 reverses |
| Type | Spring plate,diaphragm spring |
| Diameter(mm) | φ430 |
| Type | Drum |
| Service brake | Dual-circuit compressed air brake |
| Park brake | Power spring brake acting on front & rear wheel |
| Auxiliary brake | JACOB |
| Type | 850*300(8+7), with double layers |
| Front | Semi-elliptic springs suspension |
| Rear | Trapezoidal leaf springs suspension with stabilizer bar |
| Type | ZF technology, integral inner circulation power steering |
| Front axle | MAN 9,500kg |
| Rear axles | MAN 16,000kg*2= 32,000kg axles |
| Ratio | 5.92 |
| Type | 12.00R24 |
| Numbers | 10+1 |
| Pattern | Front circumferetial pattern and Rear block pattern |
| Tank capacity(L) | 360L |
| Material | Aluminum |
| Type | 24V |
| Battery | 180Ah |
| Type | SHACMAN X5000, flat roof |
| Others | Intercooler protector, Reversing buzzer, Front&Rear lights protectors, Aluminum air reservoirs, Taillight of chassis, Fire extinguisher of 2kg,Oil bath air filter. |
| Lifting system | DEPKAALER ϕ160, Front lifting system |
| Body dimensions(mm) | 5,400×2,300×1,400 |
| Volume(m3) | 17.388 |
