Model – SX3253M3M39J3840
Power 440 – 450HP
Engine – Cummins ISME 450 30
Overall dimension (mm) – 3775+1400
Model – SX3253M3M39J3840
Power 440 – 450HP
Engine – Cummins ISME 450 30
Overall dimension (mm) – 3775+1400

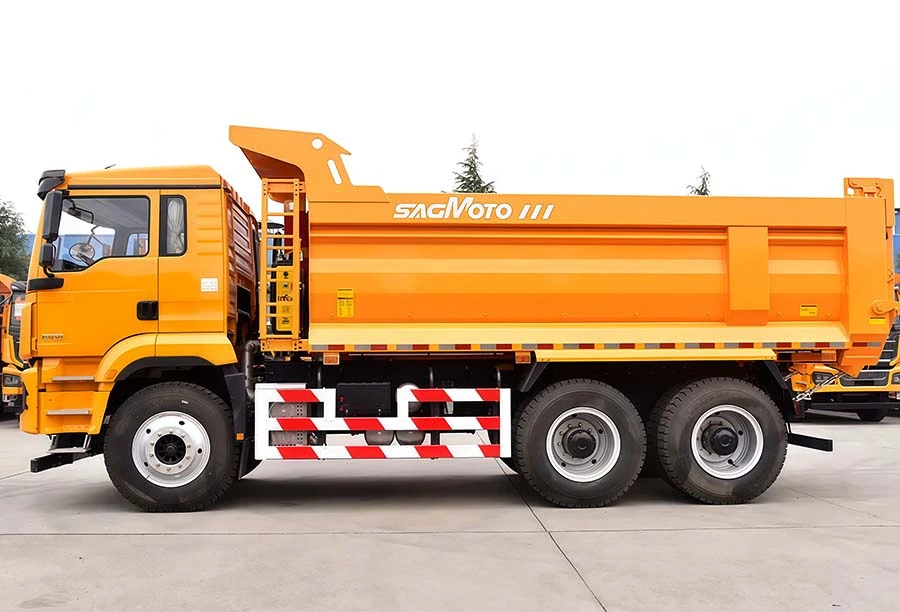

The SHACMAN X3S 6×4 Dump Truck is a highly adaptable heavy-duty vehicle engineered for medium-to-large-scale material transport in mining, construction, and infrastructure projects. As a key model in SHACMAN’s X3S smart truck series, it balances payload capacity, off-road performance, and fuel efficiency—ideal for operations requiring both maneuverability and heavy lifting.
Powertrain Optimized for Medium Loads:
The Weichai WP12 engine delivers 430 hp and 2,000 Nm of torque, paired with a heavy-duty transmission, ensuring smooth acceleration even on gradients up to 25%. It meets Euro 6 emission standards, satisfying the requirements of relevant markets. The low-speed, high-torque design reduces fuel consumption by 8% to 10% compared to the older 6×4 model.
Lightweight U-Shaped Cargo Box:

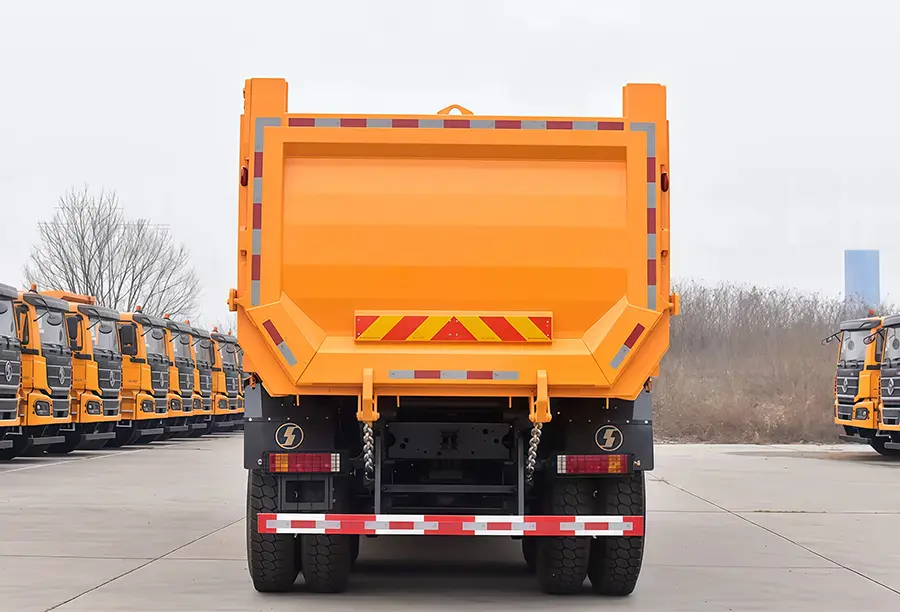

The U-shaped cargo box is constructed from high-strength carbon fiber steel (yield strength: 600 MPa), maximizing load capacity while minimizing weight (500 kg lighter than conventional designs). The streamlined structure ensures rapid unloading and minimizes residue. A 30-second hydraulic lifting cycle provides robust support for high-frequency operations.
Enhanced Handling:
The 6×4 drivetrain (front axle: 7.5 tons, rear axle: 16 tons x 2) balances stability and agility, with a turning radius of ≤9.5 meters, making it suitable for narrow mining roads and construction sites. Large off-road tires (12.00R20) and multi-leaf spring suspension effectively handle rough terrain and reduce bumps.
| SHACMAN X3S 6X4 DUMP TRUCK | |
|
Model |
SX3253M3M39J3840 |
|
Driving position |
left standard rudder |
|
Driving type |
6*4 |
|
Engine |
Cummins ISME 450 30 |
|
Effluent standard |
Europe 3 |
|
Transmission |
Fast 810JSD180(cast iron)-QH50 |
|
Vehicle speed ratio |
16t/ two-stage/5.92 |
|
Frame (mm) |
850×300 /8+7 |
|
Wheel base(mm) |
3775+1400 |
|
Front axle |
9.5t |
|
Suspension |
10/12 (four main films+four horseback riding) |
|
Fuel tank |
400L Aluminum fuel tank |
|
Wheels and tires |
12.00R20/18PR |
|
Other configurations |
1. Cab: X3s medium-long and half-high roof, airbag shock-absorbing main seat, fixed auxiliary seat, four-point mechanical mount, halogen headlights, multi-function steering wheel, lever rearview mirror, automatic constant temperature air conditioner, electric window, 5-inch LCD screen combination instrument, Bluetooth player (with 5-inch screen)., manual turnover, central locking (1 central key +2 mechanical keys), M3000S metal bumper (bumper can be the same color as the cab or black bumper), cast outrigger/central towing hook, three-step stepping and sunshade; 2. Chassis: 180Ah maintenance-free battery, iron gas cylinder, spare wheel rack with spare wheel, oil-bath air filter, headlight and taillight protection grille, 50t jack, water tank protection grille+oil pan protection grille (optional in desert area: windproof oil pan protection grille). 3. Logo: with non-luminous SQ logo, SAGMOTO logo, English or Chinese and Englis |
