Model – SX3313M3M39J3660
Power 440 – 430HP
Engine – Cummins ISME
Overall dimension (mm) – 10800X2550x3920mm
Model – SX3313M3M39J3660
Power 440 – 430HP
Engine – Cummins ISME
Overall dimension (mm) – 10800X2550x3920mm

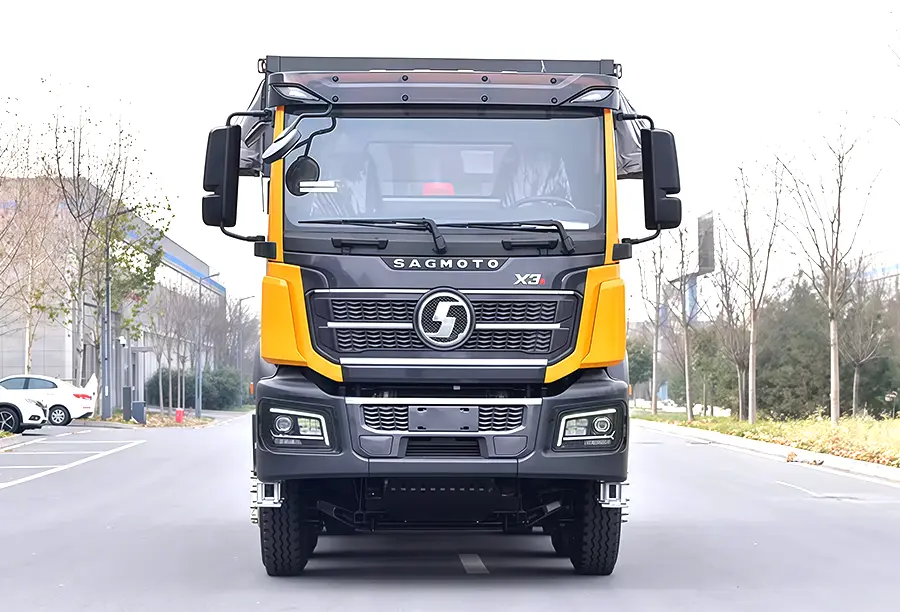

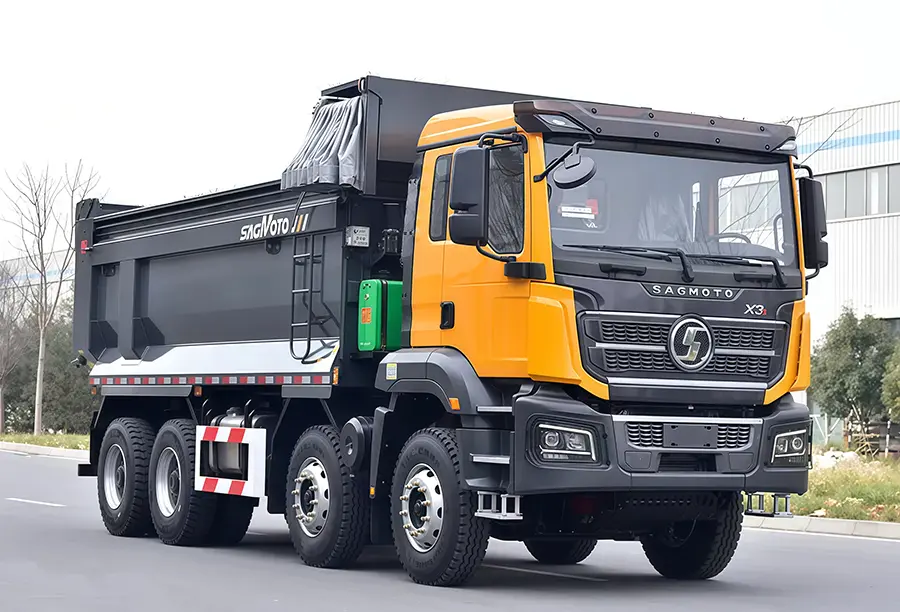

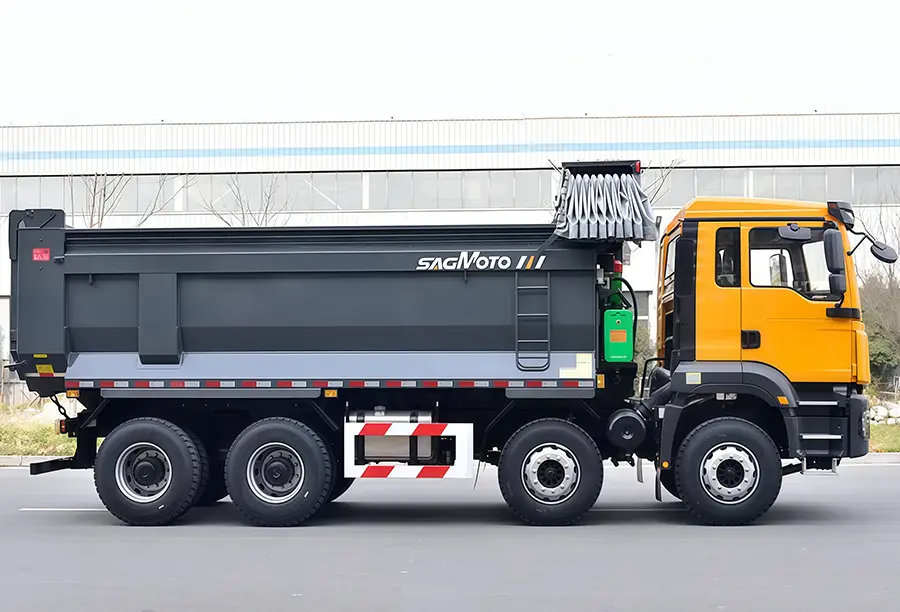

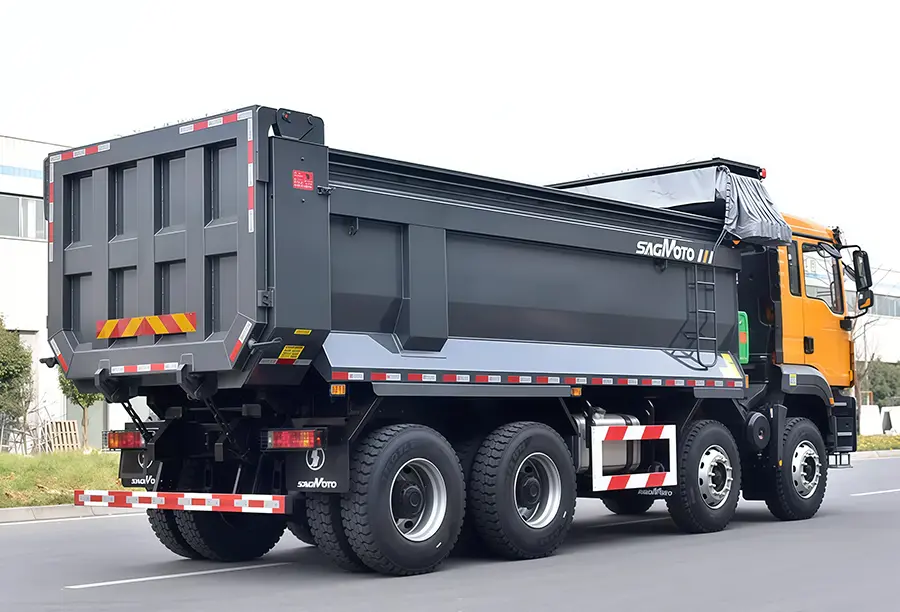

The SHACMAN X3S Dump Truck is a high-performance heavy-duty vehicle engineered for bulk material transport in construction, mining, and infrastructure projects. As a flagship model in SHACMAN’s X3S smart truck series, it combines a powerful powertrain, durable U-shaped cargo body, and intelligent fuel management to excel in harsh operating conditions. Targeting global markets like Southeast Asia, Africa, and the Middle East, it balances payload capacity (up to 40 tons), fuel efficiency, and reliability—making it a preferred choice for large-scale earthmoving and resource transportation.
Powerful and Fuel-Efficient Powertrain:
The Weichai WP12 engine delivers up to 430 horsepower and 2,000 Nm of torque, paired with a high-torque transmission for smooth acceleration even on steep inclines. It meets Euro 6 emission standards, satisfying the requirements of the EU and other highly regulated markets. Furthermore, the engine’s low-speed, high-torque characteristics reduce fuel consumption by 8% to 10% compared to the previous X3000 model.
Lightweight and Robust Cargo Box:
The U-shaped cargo box utilizes high-strength carbon fiber, reducing weight by 500 kg while increasing load capacity. Its streamlined design minimizes material residue during unloading, making it ideal for transporting sand, gravel, and carbon fiber. Optional features include a reinforced tailgate and a hydraulic lifting system (30-second unloading cycle) to further enhance operational efficiency.
Adaptability to Extreme Environments:
Off-road Performance: Heavy-duty axles (front: 9 tons, rear: 16 tons x 2) and multi-leaf spring suspension easily handle rough terrain, while large off-road tires (12.00R20) provide strong grip.
Weather Resistance: Sealed electrical systems and corrosion-resistant components are suitable for humid, high-salt environments (e.g., coastal construction sites).
Typical Applications
Construction Projects: Hauling excavated soil, concrete, and building materials to/from job sites.
Mining Operations: Transporting coal, iron ore, and minerals from mines to processing plants.
Infrastructure Development: Supporting road, bridge, and airport construction with bulk material delivery.
| SHACMAN X3S DUMP TRUCK | |
| Model | SX3313M3M39J3660 |
| Engine | Cummins ISME 420-30 420 HP Euro III |
| Gearbox | Fast 810JSD180 10-speed manual |
| Drive | 8×4 |
| Rear Axle | 16 T two-stage, ratio 5.262 |
| Payload | 30 t |
| Dump Body | 13 m³ (5.6×2.3×1.0 m) T700 steel |
| GVW | 31 t |
| Suspension | 14/14/12 leaf springs |
| Fuel Tank | 400 L aluminum |
| Tyres | 12.00R20 18PR |
| Cab | X3s half-high, A/C |
| Max Speed | 80 km/h |
| Certification | ISO9001, SONCAP |
