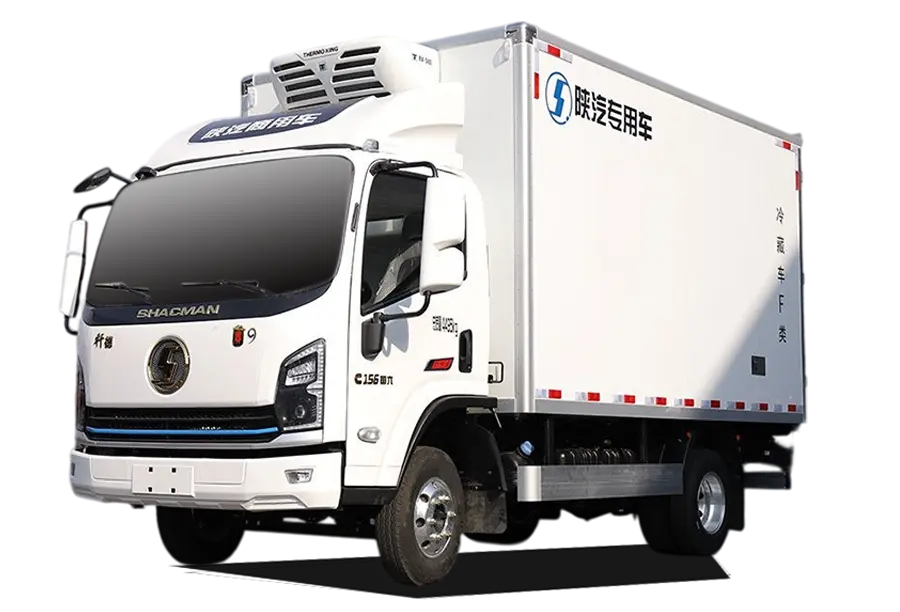

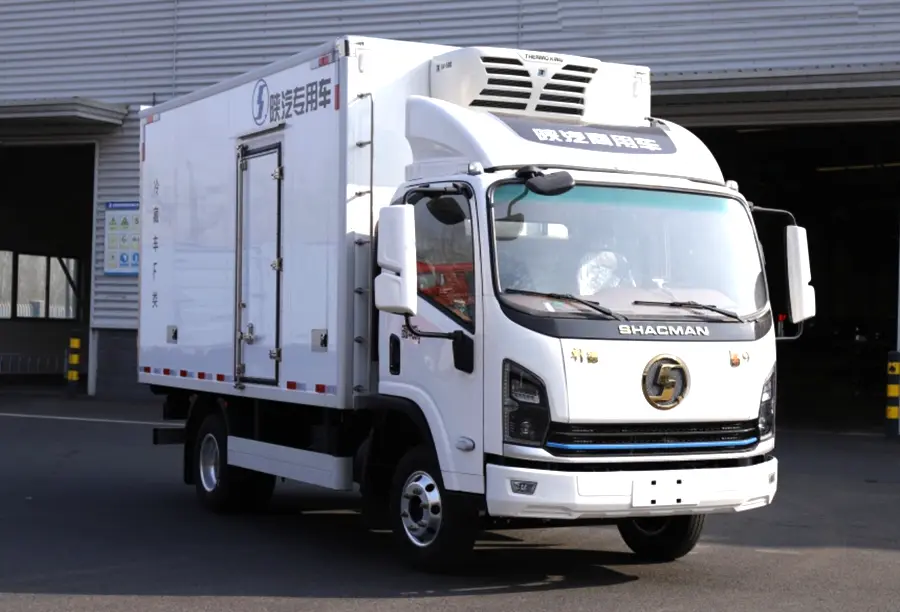

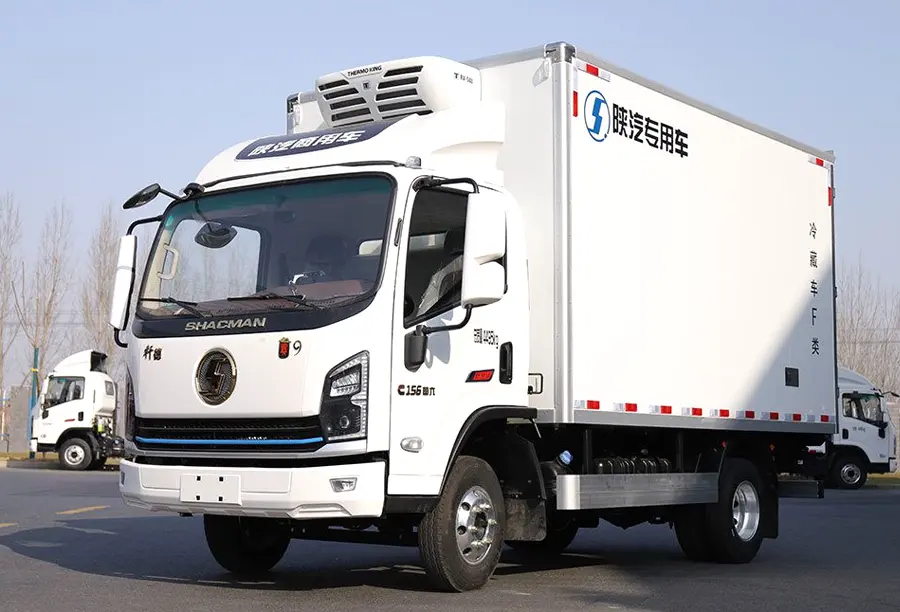

Shacman E9 Refrigerated Truck

The Shacman E9 Refrigerated Truck in the 150HP power class is a light-duty, temperature-controlled commercial vehicle purpose-built for urban and regional cold chain distribution. It sits within the E9 series light truck platform, positioned for short-distance transportation with a focus on comfort, intelligence, and operational efficiency–1. The 150HP variant is a mainstream configuration for standard-load cold chain applications, particularly where maneuverability and fuel economy are prioritized over maximum payload.

The powertrain is matched with a FAST 6DS50T-D manual transmission (6-speed) and a rear axle with a ratio of 5.286 or 6.5. The optimized powertrain matching enables the truck to handle frequent starts and stops in urban logistics without excessive fuel consumption.

Max Torque: 350 N·m at 1400–1800 rpm

Displacement: 4.214L

Rated Speed: 2800 rpm

Max Speed: 100 km/h

Economic Speed: 50–60 km/h

High-Power Dedicated PTO System: Delivers stable output for independent refrigeration units without affecting main driving power, ensuring continuous cargo compartment cooling even during full-load highway climbing.

Reinforced Electrical System: Supports simultaneous operation of refrigeration units, temperature recorders, and telematics modules, avoiding circuit overload during long-haul transport.

Tropical Market Adaptations: Enhanced engine cooling and condenser protection prevent overheating under sustained high-temperature operation.

The E9 chassis features an 800 × 232/6 single-layer frame and a suspension system with front 7 layers and rear 10+3 layers, providing durability for the demands of cold chain logistics. The cab (X9-1995 single row) offers:

Mechanical seats with staggered perforated texture design

Air conditioning

Electric power windows and central locking

Remote control key
