Model – SX5255ZYSDR434C
Power – 345HP
Engine – CUMMINS ISME345 30
Overall dimension (mm) – 4375+1400
Model – SX5255ZYSDR434C
Power – 345HP
Engine – CUMMINS ISME345 30
Overall dimension (mm) – 4375+1400

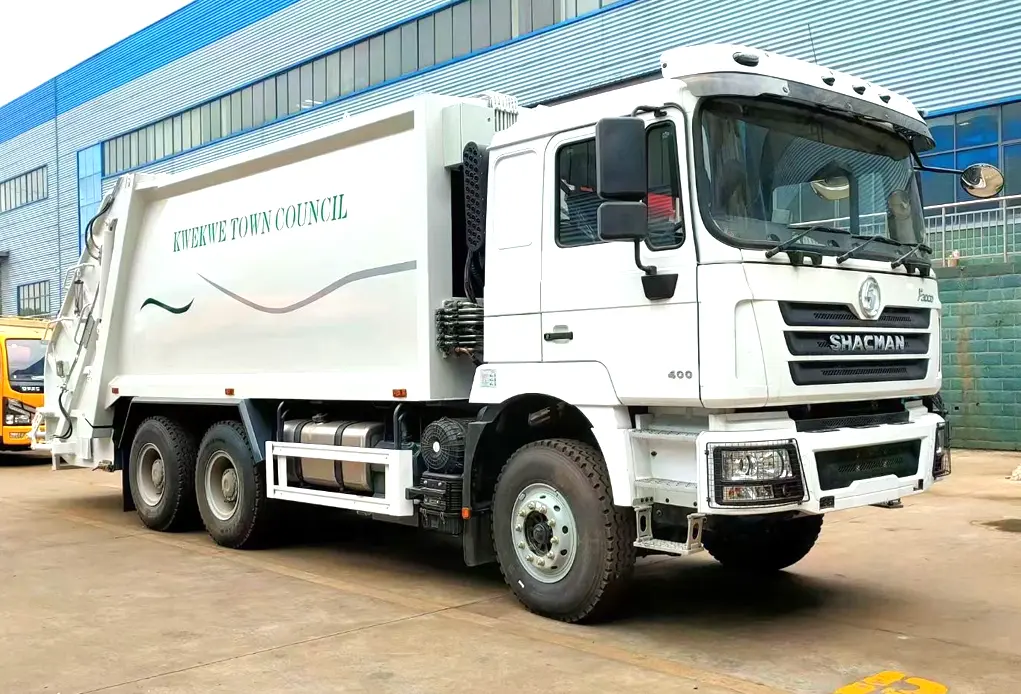

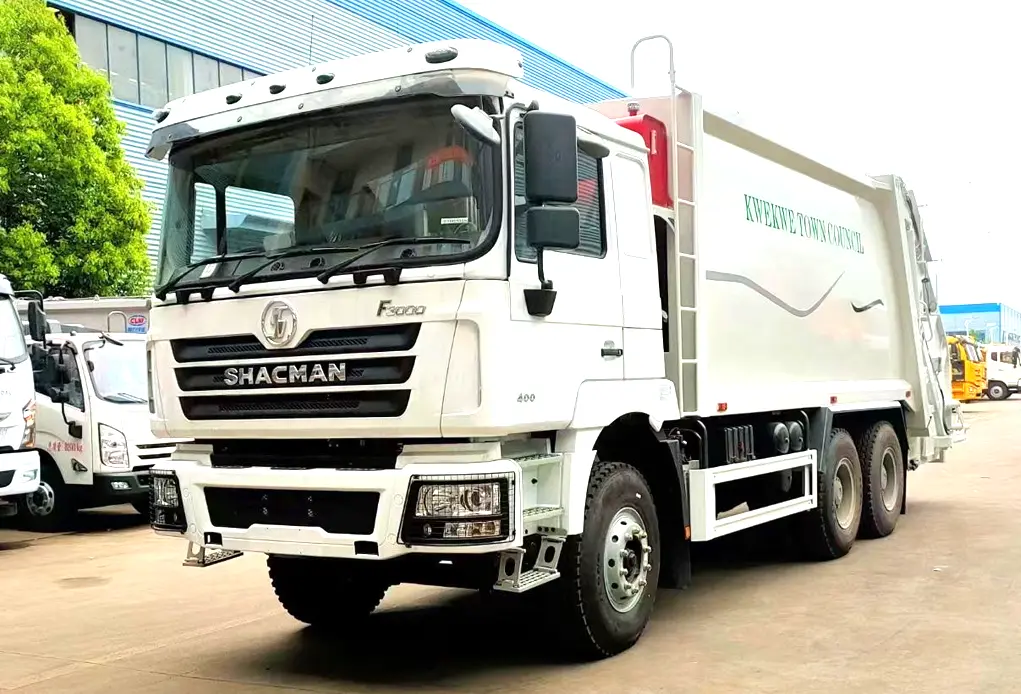

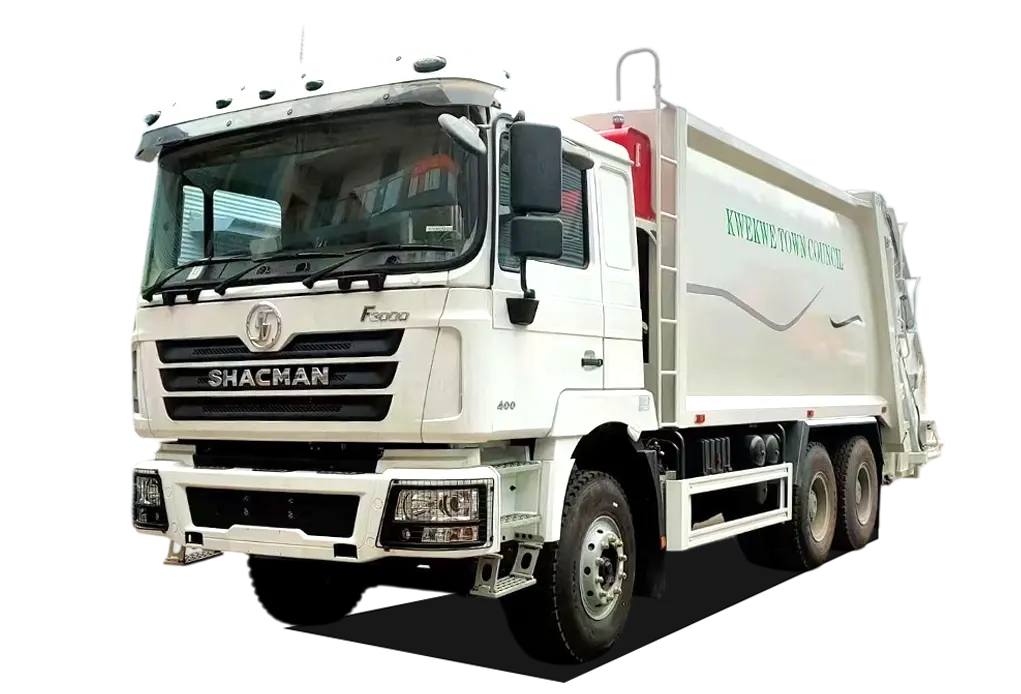

The SX5255ZYSDR434C SHACMAN F3000 6X4 Compressed Garbage Truck is a specialized heavy-duty municipal vehicle designed for efficient urban waste collection and sanitation operations. Built on Shacman’s robust F3000 platform, this truck combines powerful performance, durability, and advanced compression technology to meet the demanding requirements of city cleaning departments, waste management companies, and municipal services.
Powertrain:
Engine: Weichai WP12 turbocharged diesel engine delivering 430 HP (316 kW) power output
Transmission: FAST 12-speed manual transmission system with optimized gear ratios for heavy-load operations
Emission Standard: Euro 2/Euro 3 compliant with advanced exhaust treatment systems
Performance: Maximum torque of 2,100 Nm for strong pulling power and reliable operation on steep gradients
Dimensions & Capacity:
Drive Type: 6×4 configuration for optimal traction and load distribution
Payload Capacity: 31-40 tons with a gross vehicle weight suitable for heavy-duty operations
Container Volume: Customizable from 1 cbm to 25 cbm, typical configurations range from 10 cbm to 20 cbm
Axle Configuration: Hande 13-ton rear axles with reinforced suspension for heavy-load support
Fuel & Efficiency:
Fuel Tank: Large-capacity fuel tank for extended operation between refueling stops
Fuel Efficiency: Advanced engine management system optimizing fuel consumption without sacrificing performance
Maintenance: Long service intervals and durable components reduce operating costs and downtime
Compaction Technology:
Adopts electromechanical-hydraulic integration technology with automatic control system
Features repeated compression and creep compression functions with high compression ratio
Automatic operation for garbage loading, crushing, flattening, compaction, and unloading
Loading Mechanisms:
Rear Loading Options: Bucket turnover frame, small triangle bucket, large landing bucket, swing arm bucket
Container Material: Q345 manganese steel construction with side thickness 5mm and bottom thickness 5mm
Hydraulic System: Equipped with power take-off, hydraulic oil cylinder, hydraulic oil pump, multi-way valve, and sealing ring
Environmental Protection: Good sealing to prevent leakage and odor escape, meeting environmental standards
| SHACMAN F3000 GARBAGE TRUCKS SOUTH AFRICA | ||
| MODEL | SX5255ZYSDR434C | |
| Driver position | Left Hand/Right Hand | |
| Driving type | 6*4 | |
| Wheelbase(mm) | 4375+1400 | |
| Max. Speed(km/h) | 80km/h | |
| Engine | Brand | CUMMINS |
| Model | ISME345 30 | |
| Emission Standard | EURO 3 | |
| Rated output power（PS） | 345HP | |
| Displacement(L) | 10.8L | |
| Transmission | Brand | FAST |
| Model | 10JSD180–QH70 | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 13T MAN double reduction driving axle Speed ratio ：4.769 | |
| Clutch | ￠430 diaphragm clutch￠430 | |
| Steering | ZF technology/ ZF | |
| Frame | 850×300(8+5) | |
| Suspension | Front and rear multi-leaf spring two main flims+two horse riding | |
| Fuel tank | 600L Aluminum alloy | |
| Wheels and tires | 12R22.5 10+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | F3000 medium-long flat-top cab without roof deflector, hydraulic main seat, four-point hydraulic mount, ordinary rearview mirror, single refrigeration air conditioner, electric window opener (Mabuchi motor), manual flip, metal bumper- Lighted guard net, three-level entry pedal, ordinary air filter, ordinary exhaust, water tank protective grille, imported clutch, domestic steering gear, taillight protective grille, 180Ah maintenance-free battery, third seat, cab curtain, manual sunroof , The sunshade light can be illuminated in yellow, two domestic high-brightness LED hazard warning lights (need to be installed), left and right sound insulation panels of the cab, iron air reservoir, front axle hub decorative cover, reversing buzzer, 50T jack, 8kg fire extinguisher, Parking wedge, with remote PTO function, anti-theft fuel tank cover, anti-theft battery box, LED tail light, step light, chassis fender status and cab color | |
| Upbody | Top configuration: The volume of the box is 18 cubic meters, the national standard Q345 carbon steel, the thickness is 5mm, the curved box, the high-strength material has five sides and five bottoms, the box is sandblasted, the new CAN bus control system, with cab operation and wireless remote control, with back pressure valve, with sewage tank, Zhongmei multi-way valve, Changyuan double pump, Neptune hydraulic cylinder, movable ladder, the rest of the standard configuration.The loading cycle time is ≤25S; the garbage discharge time is≤25S; the packing lifting angle is ≥95°, and the compression ratio is 1/3-1/2. | |
