Chinese Trucks In South Africa L3000

Model – SX3319LB276

Wheelbase – 1800+2875+1400mm

Engine – WeiChai WP8.350E62

Gearbox – Fast 10JSD140T

WhatApp Message

Chinese Trucks In South Africa L3000 (1)

Chinese Trucks In South Africa L3000 (2)

Chinese Trucks In South Africa L3000 (3)

Chinese Trucks In South Africa L3000 (4)

Chinese Trucks In South Africa L3000 (5)

Chinese Trucks In South Africa L3000 (6)

Chinese Trucks In South Africa L3000 (7)

DESCRIPTION

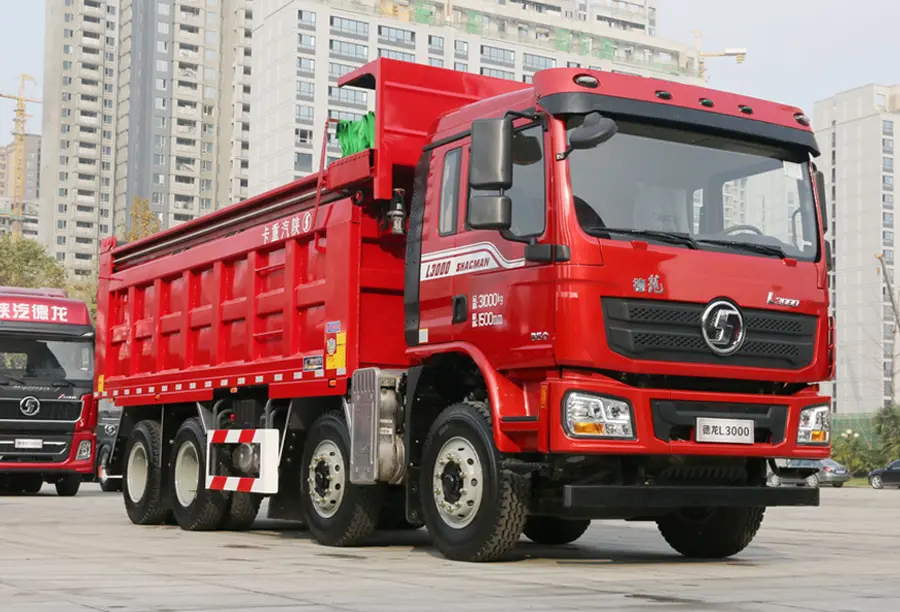

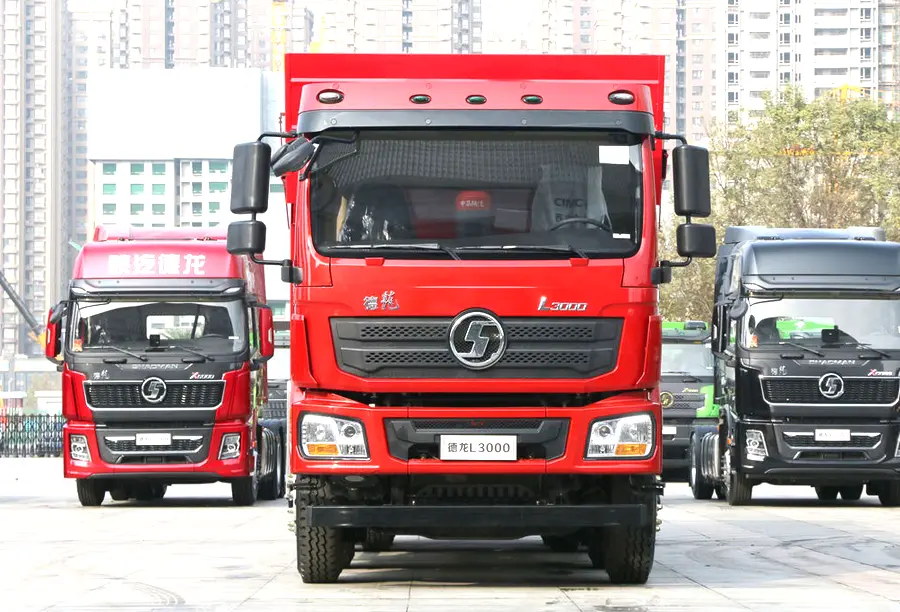

🚛 SHACMAN L3000 DUMP TRUCK SX3319LB276

The Shacman L3000 SX3319LB276 is a heavy-duty 6×4 dump truck designed for construction, mining, and infrastructure projects, offering exceptional performance, durability, and reliability in demanding working conditions. As part of Shacman’s comprehensive truck lineup, this model combines robust engineering with practical features to meet the diverse needs of customers around the world.

CHINESE TRUCKS IN SOUTH AFRICA

Powertrain:

Engine: Weichai WP10/WP12 diesel engine delivering up to 380 HP power output
Transmission: FAST 12-speed manual transmission system with optimized gear ratios
Emission Standard: Euro 2 / Euro 3 compliant with advanced exhaust treatment systems
Performance: Maximum torque of up to 1,800 Nm for strong pulling power on steep gradients

CHINESE TRUCKS IN SOUTH AFRICA

Dimensions & Capacity:

Drive Type: 6×4 configuration with left-hand drive or right-hand drive options
Payload Capacity: 18-40 tons loading weight capacity
Curb Weight: Approx 10,900 kg
Cargo Box Dimensions: Customizable from 4.2m to 7.6m length with volume options from 10 cbm to 25 cbm

SHACMAN L3000 TIPPER TRUCK

Cab Features:

Ergonomic Design: L3000 standard cab with air suspension driver’s seat and power electrically heated mirrors
Climate Control: Air conditioning system for comfortable working environment in all weather conditions
Digital Instrumentation: Comprehensive digital instrument cluster displaying vehicle diagnostics and performance data
Safety Features: Dual circuit compressed air brake system with engine exhaust brake and parking brake with spring control

CHARACTERISTICS

SHACMAN L3000 DUMP TRUCK
Model:	SX3319LB276
Drive type:	8X4
Wheelbase:	1950+2525+1400mm
Engine:	Weichai WP8.350E62
Gearbox:	Fast S10MOQ
Rear axle ratio:	5.286
Body length:	8.715 metres
Body width:	2.55 metres
Body height:	3.5 metres
Front track:	2070/2070mm
Rear track:	1860/1860 mm
Kerb weight:	12.4 tonnes
Rated load capacity:	18.405 tonnes
Gross vehicle weight:	31 tonnes
Power source:	Diesel
Engine model:	Weichai WP8.350E62
Number of cylinders:	6-cylinder
Displacement:	7.47 L
Maximum horsepower:	300 horsepower
Maximum power output:	220 kW
Maximum Torque:	1250 N·m
Maximum Torque RPM:	1200–1700 rpm
Rated RPM:	2300 rpm
Engine Type:	In-line six-cylinder, electronically controlled high-pressure common rail with SCR
Gearbox Model:	Fast 10JSD140T
Gearbox Make:	Fast
Gearshift Method:	Manual
Forward Gears:	10-speed
Reverse Gears:	2
Cab:	Extended flat-top
Cab Suspension:	Four-point air-suspension
Cab Width:	2,550 mm
Driver’s Seat Type:	Air-suspension seat
Fuel Tank Material:	Aluminium alloy
Fuel Tank Capacity:	300 L
Chassis Dimensions:	850 × 270 (8+4) mm
Front Axle Description:	MAN 4.8T
Front axle load capacity:	6,500/6,500 kg
Rear axle description:	11.5T MAN single-stage
Rear axle load capacity:	18,000 (second axle group) kg
Final drive ratio:	5.286
Suspension type (front/rear):	Front and rear multi-leaf springs + disconnectable balance shaft
Number of leaf springs:	3/3/5, 10/10/10
Tyre size:	10.00R20 18PR
Number of tyres:	12
