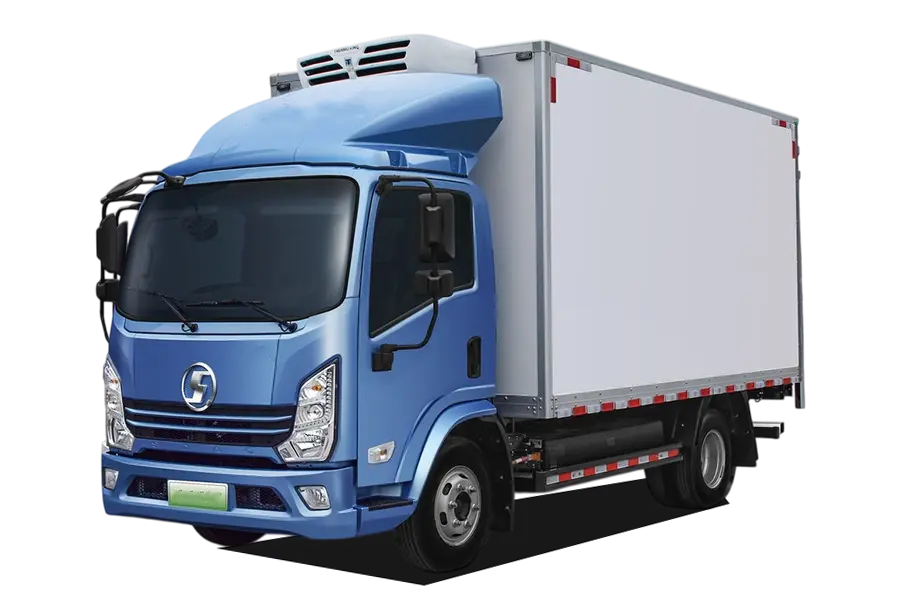

Shacman Zhiyun S300 4.5T Refrigerated Truck

This is a lightweight pure electric light truck from Shaanxi Automobile aimed at urban short-distance cold chain delivery. It features compactness, agility, and low operating costs, making it suitable for scenarios with short daily mileage like fresh food retail, community group buying, and pharmaceutical delivery. It’s a perfect fit for narrow city streets and traffic restriction policies.

⚙️ Core Electric System
Efficient electric system optimized for short-distance delivery:

Battery configuration: Equipped with a CATL 100.46kWh lithium iron phosphate battery with a lightweight module design, reducing weight by 10% compared to batteries of the same capacity; supports IP67 waterproof and dustproof rating; battery warranty is 8 years/400,000 km.

Drive motor: Paired with a Suzhou Inovance TZ220XS080 permanent magnet synchronous motor, with a peak power of 120kW, rated power of 60kW, and maximum torque of 300 N·m; high starting torque makes it suitable for frequent stop-and-go urban traffic.

Charging efficiency: Supports DC fast charging and AC slow charging; fast charging can reach 80% in 1 hour, slow charging takes 6 hours to fully charge, compatible with home chargers and public fast-charging stations.

Front and Rear Axles: HDZ 2.2t maintenance-free front axle, 6T rated maintenance-free rear axle, using long-oil-change technology to reduce maintenance costs

Chassis: 180/4.5mm single-layer chassis, balancing lightweight and load-bearing strength

Suspension: Optional 8/8 6 or 3/8 6 multi-leaf spring suspension, suitable for different load requirements

Tires: 7.00R16LT 8PR/10PR tier tires, suitable for various road conditions

Construction: Original Shaanxi Commercial Vehicle refrigerated box with polyurethane foam insulation, low thermal conductivity, and excellent heat preservation

Sealing Design: Rounded corners with EPDM rubber seals to minimize cold air loss

Unit Compatibility: Reserved interface for refrigeration unit installation, with options for top-mounted or non-independent units, supporting multi-temperature transport from -18℃ to 5℃

Frame and Suspension: Uses a 160mm single-layer lightweight frame, paired with a 3 front, 3 rear, 2-leaf spring suspension, balancing load capacity and ride smoothness.

Tire Configuration: 6.50R16LT 8PR low rolling resistance tires, saving about 5% energy compared to traditional tires.

Braking System: Front disc and rear drum brakes, equipped with ABS anti-lock system and EBD brake force distribution, ensuring safety in complex urban driving conditions.

Space Design: 1950mm narrow single-row cabin, compact and agile, perfect for navigating tight city streets; comes with ergonomic seats that can be adjusted forward and backward.

Basic Features: Standard with air conditioning, electric windows, electronic central lock, and USB charging ports; optional upgrades include a large multimedia screen and rearview camera.

Smart System: Supports Shaanxi Auto Zhiyun connected vehicle system, enabling vehicle location tracking, battery monitoring, remote diagnostics, and more.
